Gigabyte Mainboard||Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|2xPCI-Express 3.
LGA 1700, Intel B760 Express, mATXFree shipping starting at 50.–

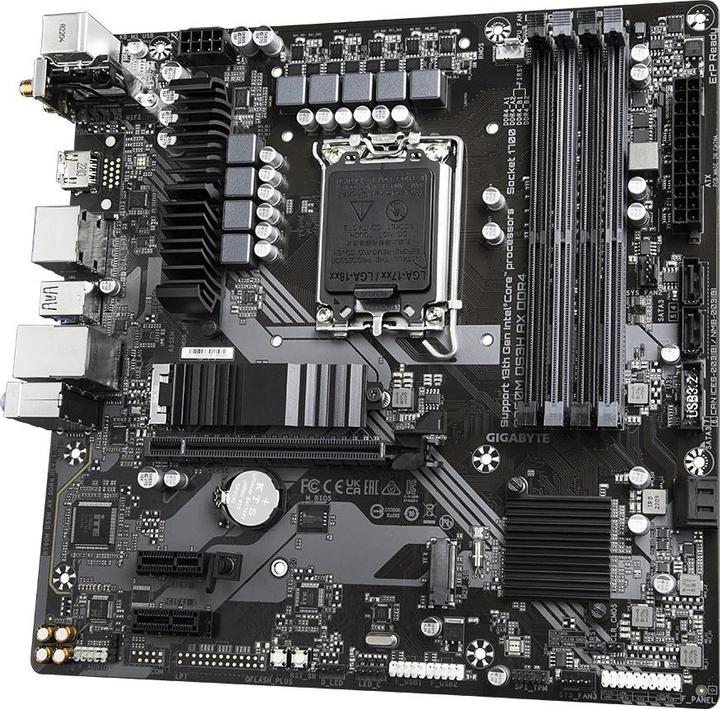

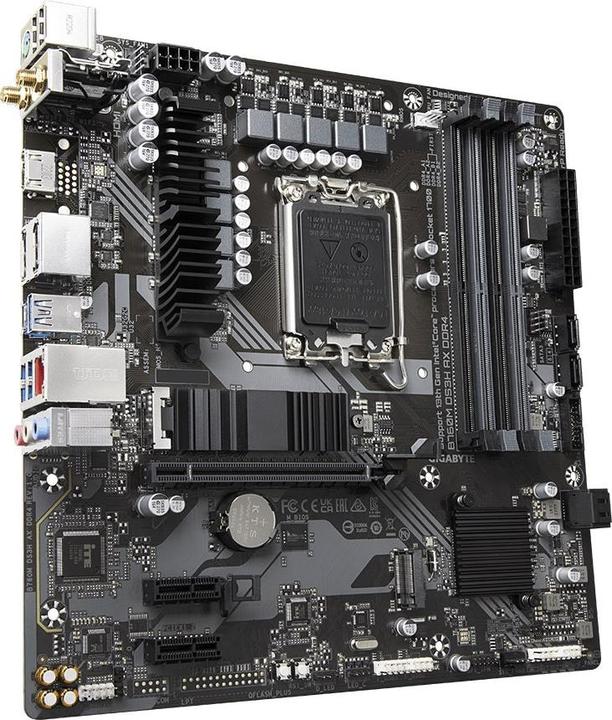

The GIGABYTE B760M DS3H AX is a powerful Micro-ATX motherboard equipped with the Intel B760 Express chipset and supporting the LGA1700 processor socket. It offers a variety of features that make it ideal for building a modern PC. With support for DDR4 memory and up to 128 GB of RAM, it enables high performance and flexibility for various applications. The four memory slots provide ample room for expansions, while the various connectivity options, including PCI-Express slots and M.2 slots, allow for easy integration of graphics cards and SSDs. Additionally, the motherboard offers multiple video outputs, including HDMI and DisplayPort, as well as advanced networking features like 2.5 Gigabit Ethernet and integrated Wi-Fi compliant with the latest Wi-Fi 6 standard. This combination of performance and connectivity makes the GIGABYTE B760M DS3H AX an excellent choice for gaming, content creation, and everyday applications.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | USB 2.0 Header (2x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header, S/PDIF header |
Item number | 37345581 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B760MDS3HAXDDR41.2 |
Release date | 2.8.2023 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 Express |
Mainboard features | Front panel audio connector, RGB header, S/PDIF header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2933 MHz, 3000 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

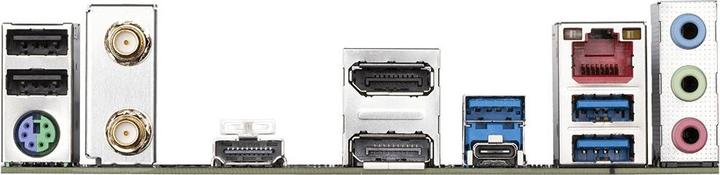

Video connections | DisplayPort (2x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller | RZ608 |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (3x), Microphone connection (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | USB 2.0 Header (2x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
USB ports | USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 20+4-pin ATX, 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security, Sata Cables |
Length | 270 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1100 g |
Length | 28 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 1.01 kg |
