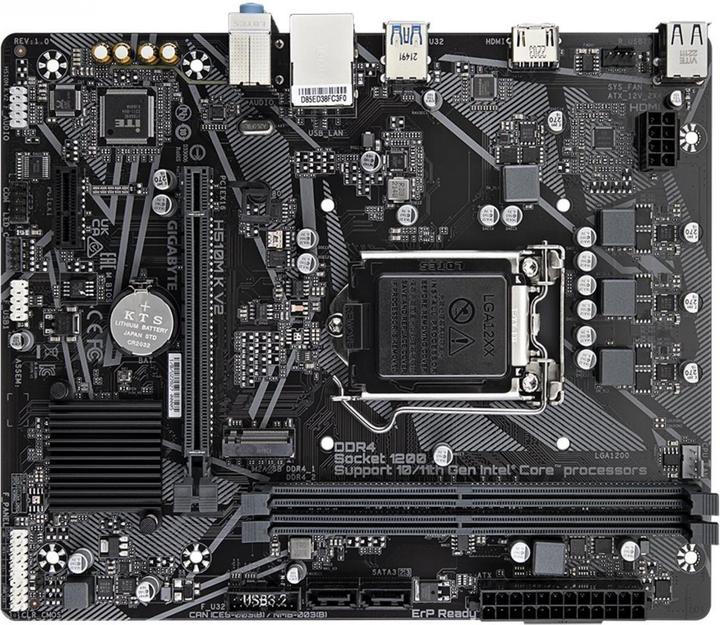

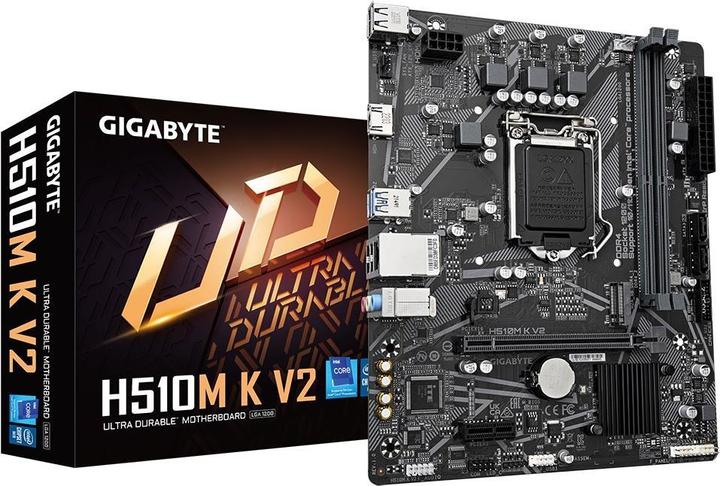

Gigabyte H510M K V2

LGA 1200, Intel H470 Express, mATX
4Ratings
BrandMore from Gigabyte
Delivered between Mon, 5.5. and Tue, 6.5.
Only 1 item in stock at supplier

Product details

The GIGABYTE H510M K V2 is a Micro-ATX motherboard equipped with the Intel H470 chipset and the LGA 1200 socket. This motherboard is compatible with Intel Core desktop processors from the 10th and 11th generations. Additionally, it supports DDR4 RAM with speeds of up to 3,200 MHz.

Key specifications

Processor family
Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Mobile
Memory type
DDR4-RAM
Number of memory modules (RAM)
2.30 x
Internal connection options
M.2 (1x), S-ATA III (2x)
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Serial header
Item number
32962641

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
H510M K V2
Release date
2.5.2023

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1200
Chipset
Intel H470 Express
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Serial header
Operating system compatibility
Linux, Windows, Windows 10, Windows 7, Windows 8
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Mobile

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2.30 x
Max. memory (RAM)
64 GB
Memory chip
DDR4-4400
Max. RAM OC
3200 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 1.4

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller
Ethernet LAN, LAN

Audio

Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
M.2 (1x), S-ATA III (2x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)

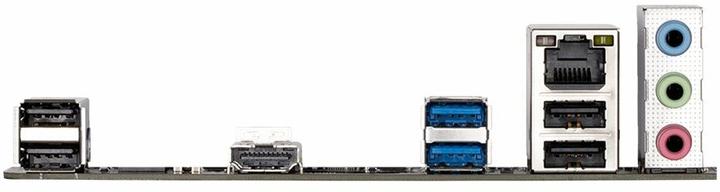

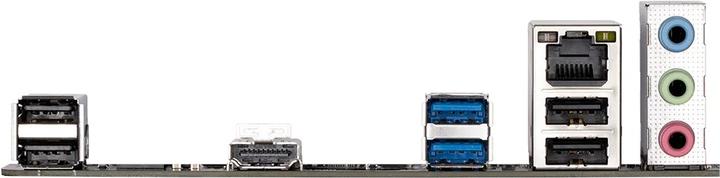

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
226 mm
Width
185 mm
Height
35 mm
Weight
150 g

Package dimensions

Length
26.80 cm
Width
23.70 cm
Height
5.40 cm
Weight
614 g
