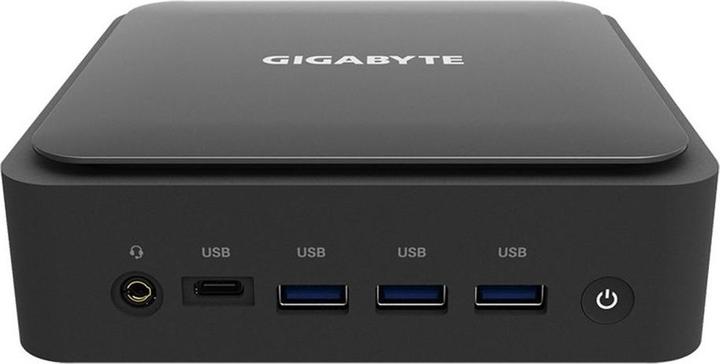

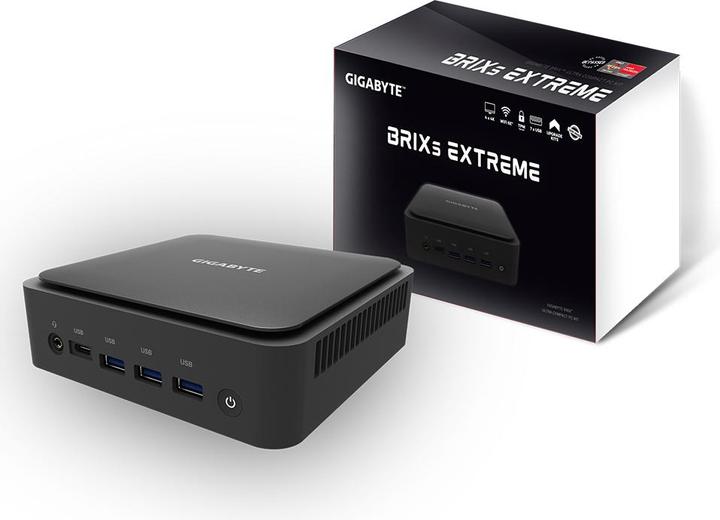

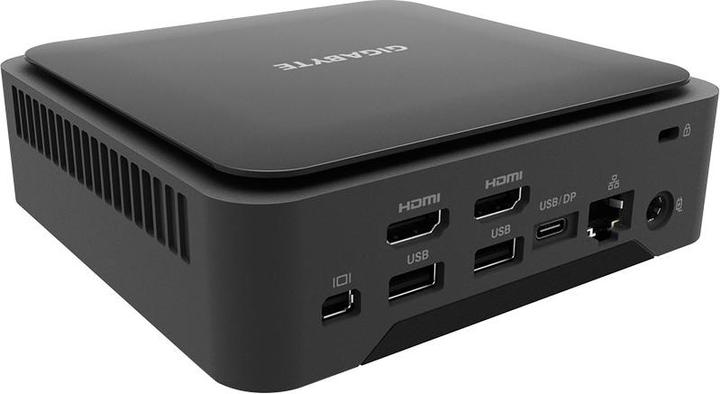

Gigabyte GB-BER3-5400

AMD Ryzen 3 5400U
Ratings
BrandMore from Gigabyte
Currently out of stock
Free shipping starting at 50.–

Product details

The GIGABYTE GB-BER3-5400 is a compact mini-PC barebone designed for a variety of applications. Equipped with an AMD Ryzen 3 5400U processor and integrated AMD Radeon Graphics, this system offers solid performance for everyday tasks as well as multimedia applications. The barebone features two SO-DIMM memory slots that support a maximum RAM capacity of 64 GB, providing high flexibility in configuration. Support for modern storage solutions such as SSDs via PCI Express and Serial ATA III ensures fast data transfer rates. With a variety of connectivity options, including HDMI, DisplayPort, and USB-A 3.2 Gen 1, the GB-BER3-5400 is ideal for users seeking a powerful and compact PC that can easily integrate into different environments.

  • Supports up to 64 GB DDR4 RAM for high performance and multitasking capabilities
  • Integrated AMD Radeon Graphics for enhanced visual representation
  • Modern connectivity with Wi-Fi 6 and Bluetooth 5.2 for fast and reliable connections
  • Versatile connectivity options, including HDMI, DisplayPort, and USB-A 3.2 Gen 1
  • Compact form factor, ideal for space-saving applications.

Key specifications

Graphics card model
AMD Radeon Graphics
Memory type
DDR4-RAM
Video connections
DisplayPort (1x), HDMI (2x)
Network connections
RJ45 (1x)
Internal connection options
M.2 SATA (1x)
Number of processor cores
4 -Core
Item number
23017512

General information

Manufacturer
Gigabyte
Category
Barebones
Manufacturer no.
GB-BER4-5400
Release date
14.10.2022

Barebone properties

Design
Small Form

Processor

Processor type
AMD Ryzen 3 5400U
Clock frequency
2.60 GHz
Number of processors
1x
Number of processor cores
4 -Core
Number of threads
8
Max. turbo clock rate
4 GHz
Max. TDP
15 W
Processor properties
Onboard processor

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Memory Slots available
2
Max. memory slots
2
Max. RAM
64 GB

Graphics card properties

Graphics card model
AMD Radeon Graphics

Internal connections

Internal connection options
M.2 SATA (1x)

External connections

Exact USB ports
USB-A 3.2 Gen 1 (2x)

Network

Network connections
RJ45 (1x)

Wireless transmission

Connectivity
WLAN
Wi-Fi standard
Wi-Fi 6 / 802.11ax
Bluetooth version
5.2

Video connections

Video connections
DisplayPort (1x), HDMI (2x)

Audio connections

Audio outputs
Headphones Out (1x)

Power supply properties

Power
135 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
VESA bracket

Product dimensions

Width
139.10 mm
Length
48.30 mm
Height
48.30 mm

Package dimensions

Length
30.10 cm
Width
19 cm
Height
9 cm
Weight
1.76 kg
