Product details
The GIGABYTE GB-BEi7-1260 is a compact mini-PC barebone designed for users seeking a powerful and customizable solution. Equipped with an Intel Core i7-1260P processor, this barebone system delivers high performance for various applications, from office tasks to multimedia use. With the capability to install up to 64 GB of RAM and support for both HDD and SSD storage drives, the GB-BEi7-1260 allows for flexible configurations that meet individual needs. The integrated Intel Iris Graphics ensures appealing graphics performance, while the variety of connectivity options, including USB-C, HDMI, and Ethernet, provides comprehensive connectivity. Thus, the GB-BEi7-1260 is an ideal choice for users looking for a compact, powerful, and versatile mini-PC.
- Supports up to 64 GB DDR4 RAM for high performance
- Diverse storage options with M.2, PCI Express, and SATA
- Integrated Intel Iris Graphics for enhanced graphics performance
- Modern connectivity with Wi-Fi 6E and Bluetooth 5.2
- Compact design for space-saving applications.
Number of processor cores | 12 -Core |
Graphics card model | Intel Iris Graphics |
Internal connection options | M.2 (1x) |
Network connections | RJ45 (1x) |

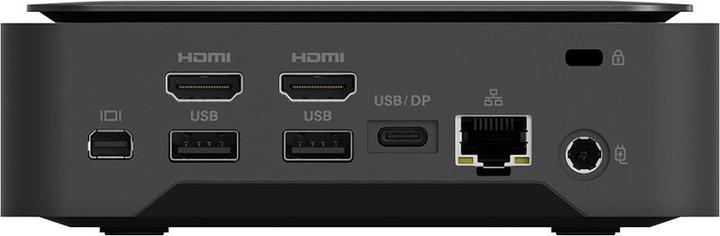

Video connections | DisplayPort (1x), HDMI (2x) |
Memory type | DDR4-RAM |
USB ports | USB-A, USB-C |
Item number | 24069230 |
Manufacturer | Gigabyte |
Category | Barebones |
Manufacturer no. | GB-BEI7-1260 |
Release date | 21.10.2022 |
May include power adapter | Yes |
Design | Small Form |
Processor type | Intel Core i7-1260P |
Clock frequency | 3.40 GHz |
Number of processors | 1 x |
Number of processor cores | 12 -Core |
Number of threads | 16 |
Max. turbo clock rate | 4.70 GHz |
Max. TDP | 20 W |
Processor properties | Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Graphics card model | Intel Iris Graphics |
Internal connection options | M.2 (1x) |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 2 (3x), USB-C 3.2 Gen 2 (1x) |
Network connections | RJ45 (1x) |
Max. port speed | 1000 Mbit/s |
Connectivity | WLAN |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Bluetooth version | 5.2 |
Video connections | DisplayPort (1x), HDMI (2x) |
Audio outputs | 6.3mm stereo (1x) |
Power | 20 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | VESA bracket |
Width | 134.20 mm |
Length | 139.10 mm |
Height | 48.30 mm |
Length | 34.20 cm |
Width | 23 cm |
Height | 9.30 cm |
Weight | 1.78 kg |
