Gigabyte GA-B760M DS3H AX

LGA 1700, Intel B760 Express, mATX
Ratings
BrandMore from Gigabyte
tomorrow with flash delivery
to check if flash delivery is available to you.

Product details

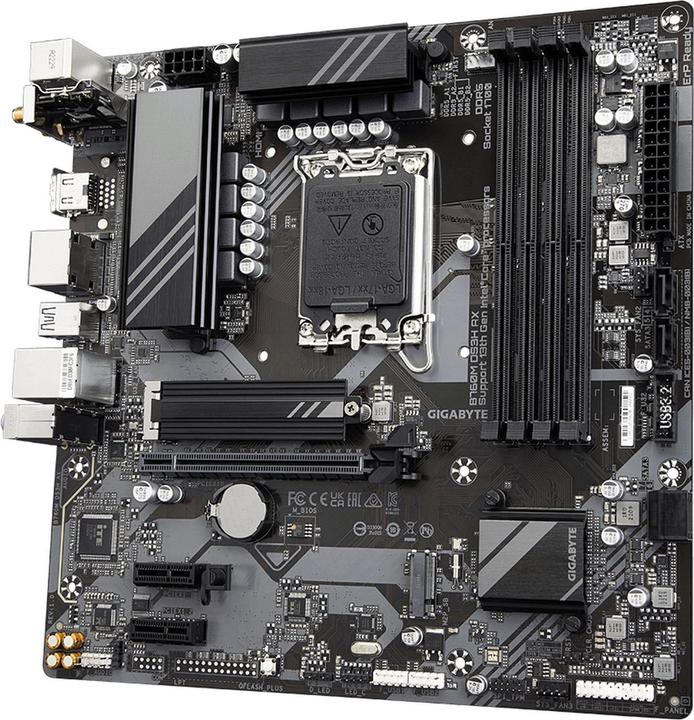

The Gigabyte B760M DS3H AX is a Micro-ATX motherboard and features a PCI-Express 4.0 slot with full x16 connectivity for graphics cards. With the LGA 1700 socket, you are well-equipped for powerful Intel processors. Additionally, the Gigabyte B760M DS3H AX supports DDR5 memory with speeds of up to 7,600 MHz through overclocking.

Key specifications

Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button
Item number
36197683

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B760M DS3H AX
Release date
12.6.2023
Sales rank in Category Motherboards
63 of 981
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760 Express
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Max. RAM OC
7600 MHz
Supported memory speed
5400 MHz, 5600 MHz, 5800 MHz, 7000 MHz, 7600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (2x), HDMI (1x)
Video connection version
Display port 1.2, HDMI 2.0

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Max. port speed
2.50 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
4

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 1.0 (1x), USB-C 4 (1x)

Power supply

Power connectors
1x flat 4-pin ATX 12V, 2x 8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
35 mm
Weight
1100 g

Package dimensions

Length
28 cm
Width
27 cm
Height
7 cm
Weight
1.12 kg
