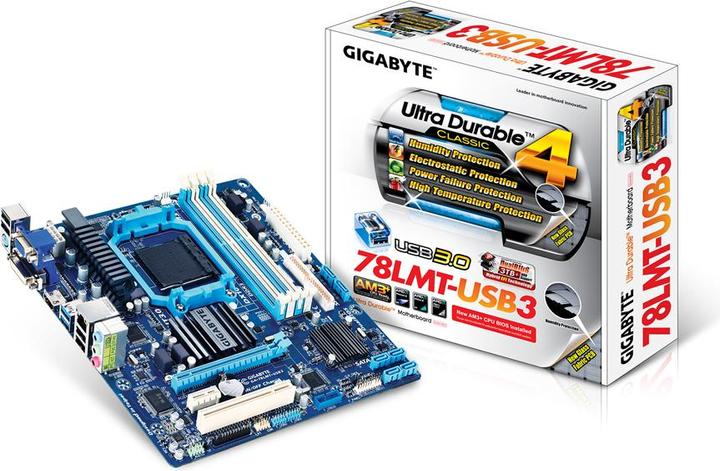

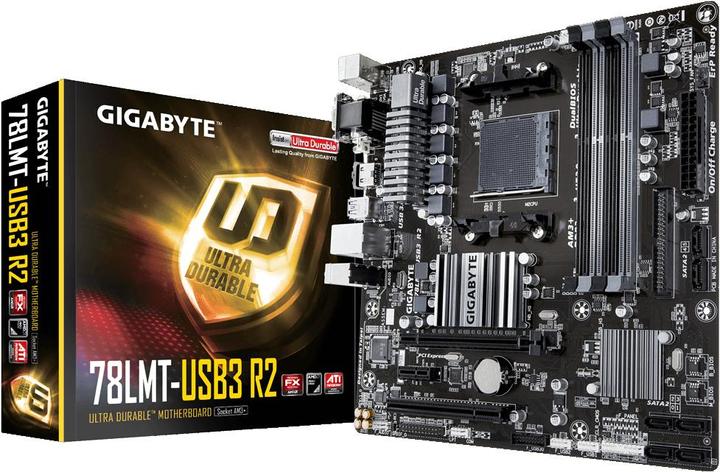

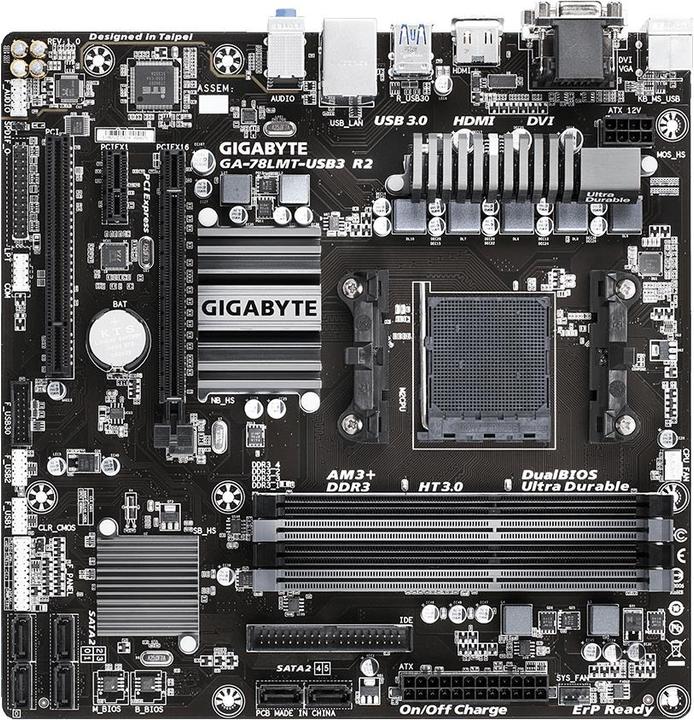

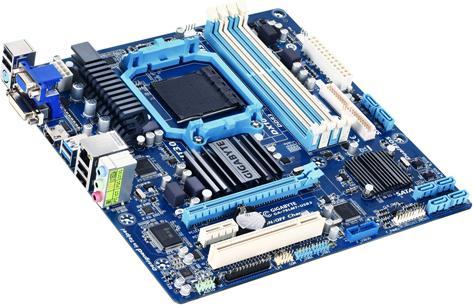

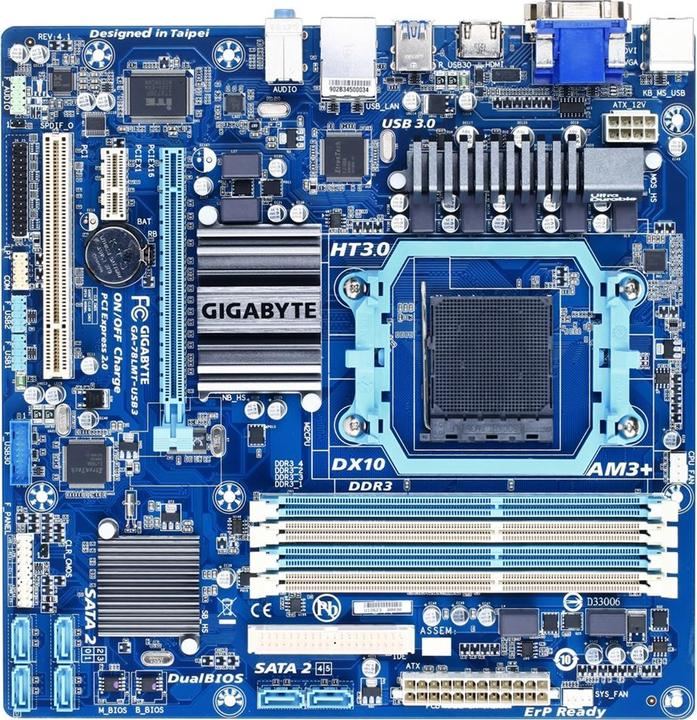

Gigabyte GA-78LMT-USB3 R2 Rev1.0

AM3+, AMD SB710, AMD 760G, mATX
5Ratings
BrandMore from Gigabyte
Currently out of stock
Free shipping starting at 50.–

Product details

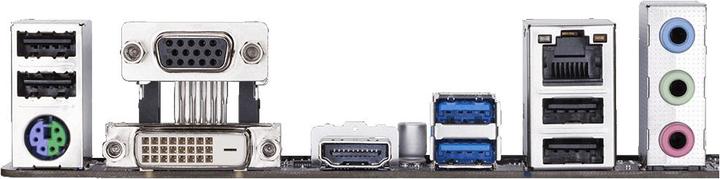

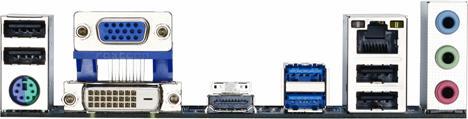

The Gigabyte GA-78LMT-USB3 R2 motherboard is equipped with the AMD 760G chipset and supports processors with AM3 and AM3+ socket types. It features a graphics interface with DVI-D, HDMI, and VGA outputs, as well as a PCIe 2.0 x16 port, a PCIe 2.0 x1 port, and a PCI port. It includes Gigabit LAN, 8-channel HD sound, six SATA II connectors, one IDE connector, and two USB 3.0 Type-A interfaces.

Key specifications

Processor family
Athlon
Memory type
DDR-RAM
Mainboard features
Front panel audio connector
Internal connection options
S-ATA III (6x)
Number of memory modules (RAM)
4x
Item number
737318

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
GA-78LMT-USB3
Release date
30.10.2013

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM3+
Chipset
AMD 760G, AMD SB710
Mainboard features
Front panel audio connector

Processor

Processor family
Athlon

Memory

Memory form factor
DIMM
Number of pins
240x
Number of memory modules (RAM)
4x
Max. memory (RAM)
32 GB
Memory chip
DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666)
Max. RAM OC
1600 MHz
Supported memory speed
1600 MHz
Memory type
DDR-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
VGA (1x)

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek GbE
Max. port speed
1 Gbit/s

Audio

Chip
VIA VT2021
Audio channel
7.1 Channel
Audio Connections
Digital Audio Out (1x)

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)
Number of fan connector
2

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton® Internet Security

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm

Package dimensions

Length
27 cm
Width
26.70 cm
Height
5.80 cm
Weight
988 g
