Gigabyte Brix GB-BACE 3000

Intel Celeron N3000
1Ratings
Currently out of stock

Product details

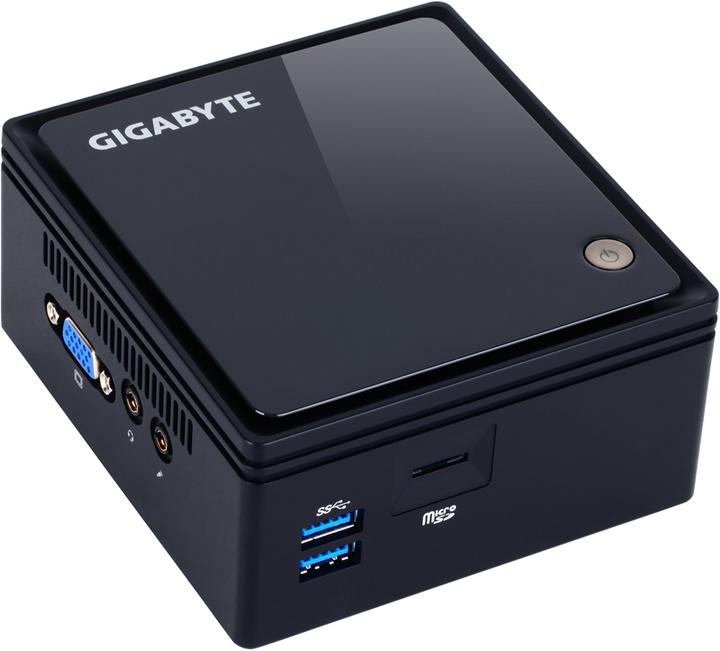

The Barebone Gigabyte Brix GB-BACE-3000 is ultra-compact with an elegant design based on a brushed aluminum chassis. The Brix GB-BACE-3000 is ideal for a wide range of computer applications at home or in the office, usable as an HTPC or multimedia hub, an extremely energy-efficient PC for the family, as an office PC, or as a digital signage unit. The Brix GB-BACE-3000 is a versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with its small form factor.

Key specifications

Number of processor cores
2 -Core
Graphics card model
Intel HD Graphics
Internal connection options
M.2 (1x), S-ATA III (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x), VGA (1x)
Memory type
DDR3L-RAM
USB ports
USB-A
Documents
Technical data sheet.pdf
Item number
7228656

General information

Manufacturer
Gigabyte
Category
Barebones
Manufacturer no.
GB-BACE-3000
Release date
11.1.2018
External links
Manufacturer's site (de), Manufacturer's site (fr)

Barebone properties

Design
Small Form

Processor

Processor type
Intel Celeron N3000
Clock frequency
1.04 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
2
Socket
FCBGA1170
Max. turbo clock rate
2.08 GHz
Max. TDP
4 W
Processor properties
64-bit architecture, Intel Virtualisation Technology (VT-x)

Memory

Memory type
DDR3L-RAM
Memory form factor
SO-DIMM
Number of pins
204 x
Memory chip compatibility
DDR3-1066 (PC3-8500), DDR3L-1333 (PC3-10600), DDR3L-1600 (PC3-12800U)
Memory Slots available
1
Max. memory slots
1
Max. RAM
8 GB
Memory voltage
1.35 V

Graphics card properties

Graphics card model
Intel HD Graphics
Hardware application range
Beginner, Workstations
Max. connected monitors
2 x

Internal connections

Internal connection options
M.2 (1x), S-ATA III (1x)
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x)

Network

Network connections
RJ45 (1x)
Max. port speed
1000 Mbit/s

Wireless transmission

Connectivity
Bluetooth, WLAN
Wi-Fi standard
Wi-Fi 5 / 802.11ac
Wi-fi frequency
5 GHz

Video connections

Video connections
HDMI (1x), VGA (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Card reader properties

Memory card type
microSD

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
VESA bracket

Product dimensions

Weight
880 g
Width
107.60 mm
Length
114.40 mm
Height
56.10 mm

Package dimensions

Length
18 cm
Width
17 cm
Height
8 cm
Weight
1.01 kg
