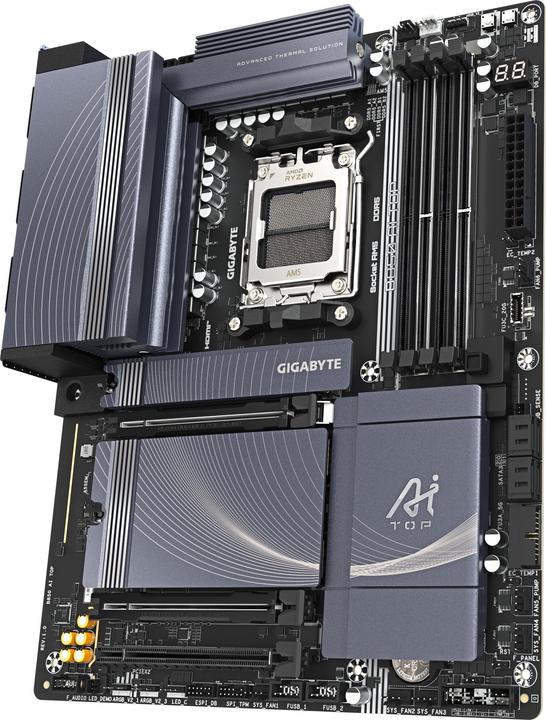

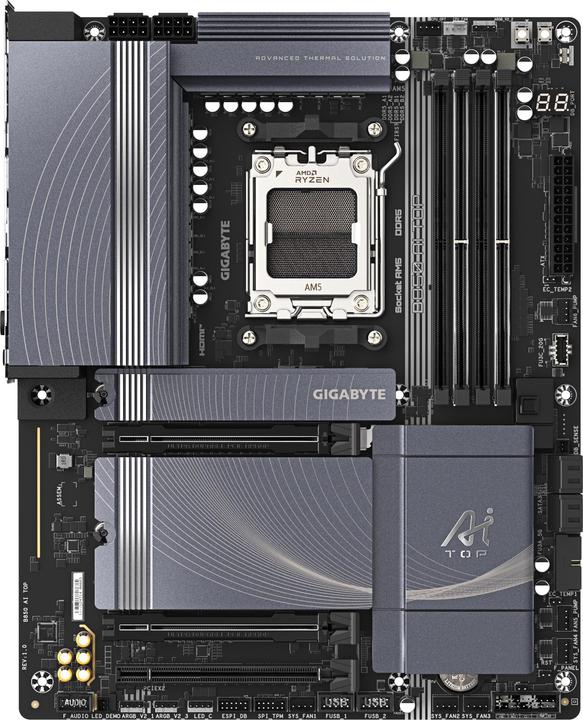

The GIGABYTE B850 AI TOP is based on the AMD B850 chipset and supports AMD processors for the AM5 socket. It has four DDR5 slots for up to 256 GB of RAM.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x), TPM Header |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Power-On Button, Reset button |
Item number | 53424715 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B850 AI TOP |
Release date | 17.7.2025 |
Sales rank in Category Motherboards | 168 of 969 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B850 |
Mainboard features | Power-On Button, Reset button |
Operating system compatibility | Windows, Windows 10, Windows 11 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8600 MHz |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x) |
Video connection version | HDMI 1.0 |
Network connections | RJ45 10 Gigabit Ethernet (2x) |
Ethernet controller brand | Realtek |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Microphone |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (3x), S-ATA III (4x), TPM Header |
Expansion slot | PCI Express x16 (Gen 4) (1x), PCI Express x4 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (3x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security (OEM version) |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 2690 g |
Length | 33.90 cm |
Width | 27 cm |
Height | 10.10 cm |
Weight | 2.67 kg |
