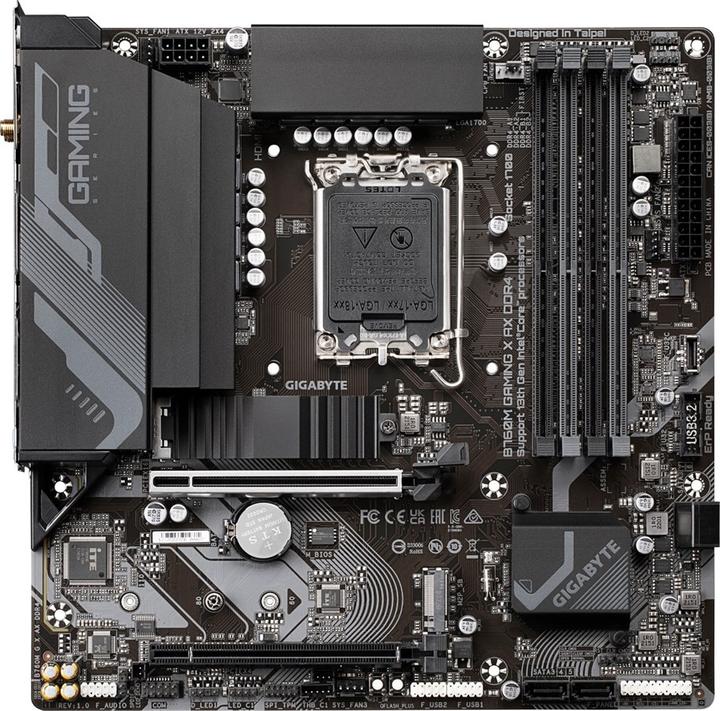

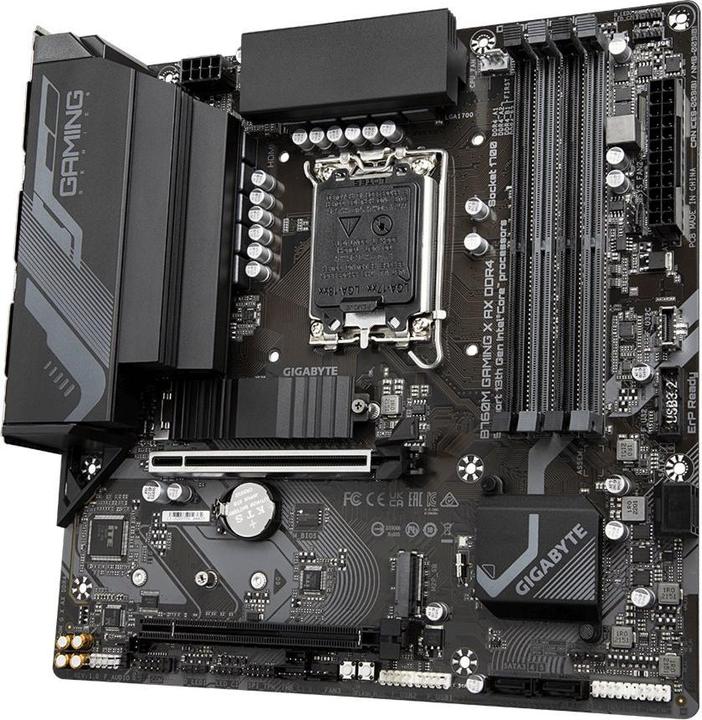

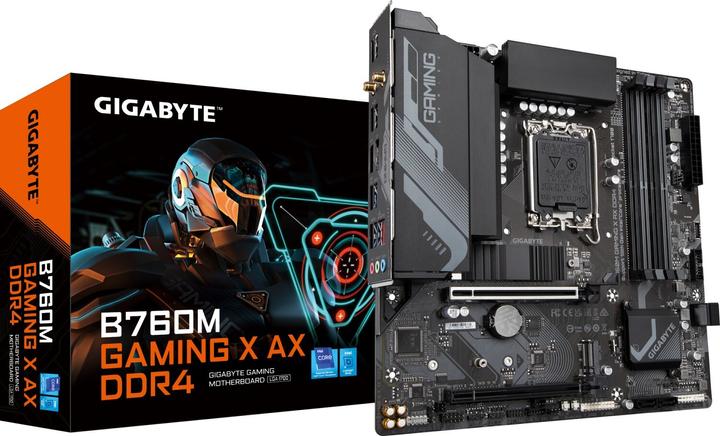

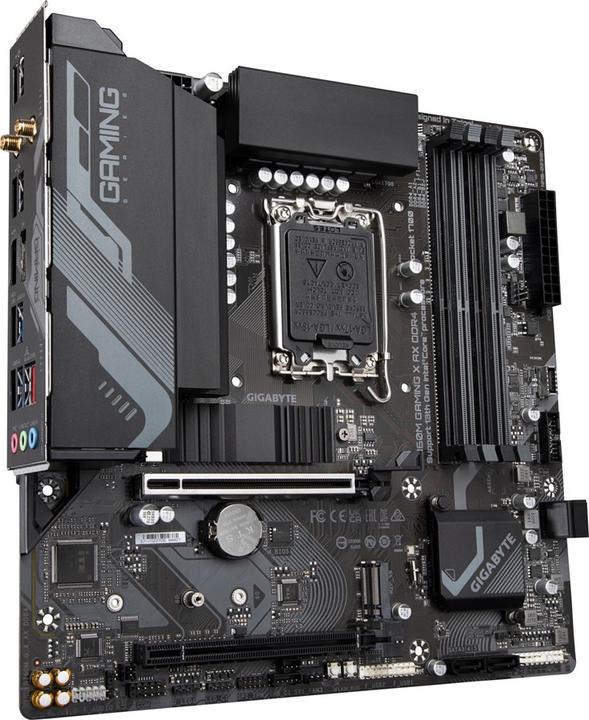

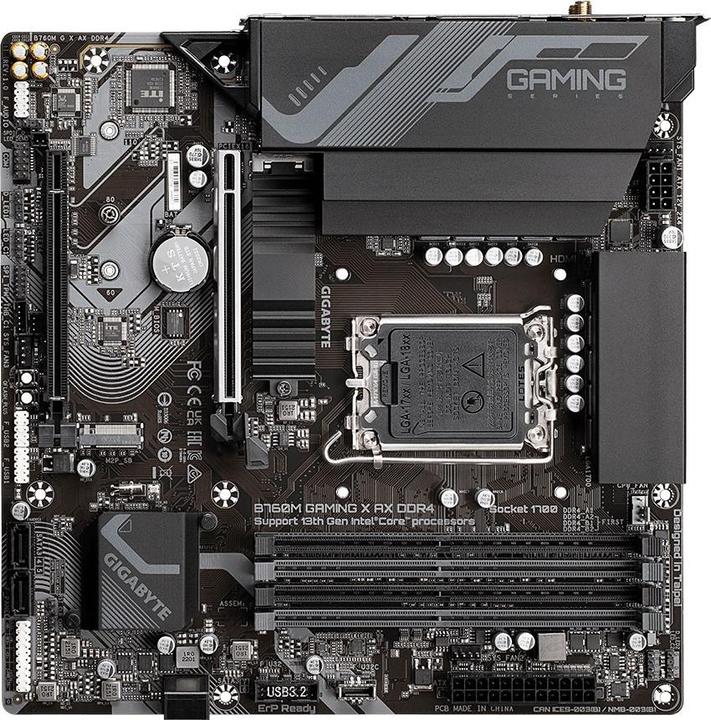

Gigabyte B760M GAMING X AX DDR4
LGA 1700, Intel B760 Express, mATXCurrently out of stock
Product details
Gigabyte motherboards enable the ultimate connectivity experience with blazing fast data transfer speeds in networking and storage.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, Reset button, RGB header, S/PDIF header, Serial header |
Item number | 23653523 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B760M G X AX DDR4 |
Release date | 9.12.2022 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 Express |
Mainboard features | Clear CMOS Button, Front panel audio connector, Reset button, RGB header, S/PDIF header, Serial header |
Operating system compatibility | Linux, Windows 10, Windows 7, Windows 8 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

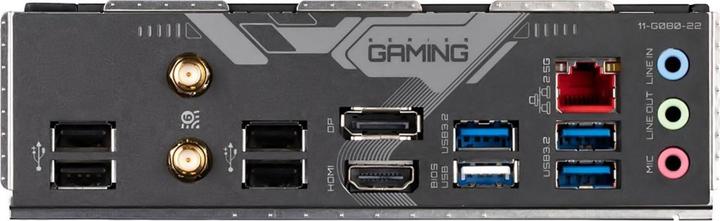

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0 |
Network connections | RJ45 (1x) |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x) |
Number of fan connector | 4 |
USB ports | USB-A |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security |
Length | 244 mm |
Width | 244 mm |
Height | 32 mm |
Weight | 1500 g |
Length | 27 cm |
Width | 27 cm |
Height | 6 cm |
Weight | 1.43 kg |
Specifications may include unverified machine translations.
