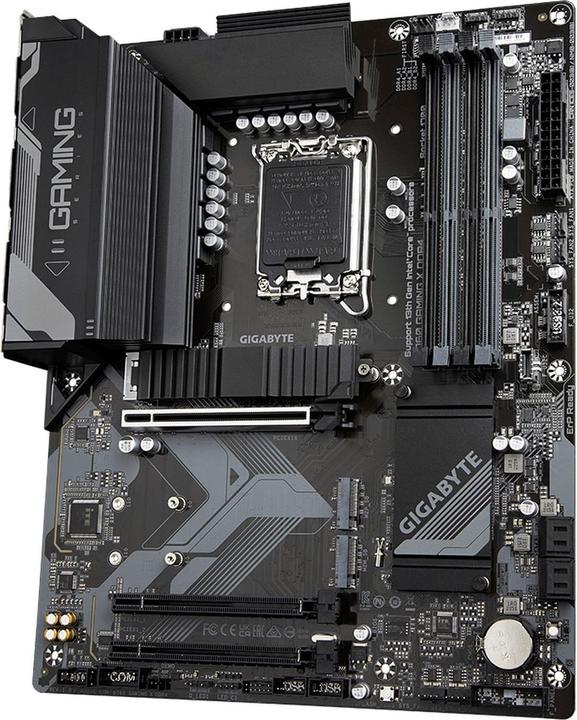

Gigabyte B760 Gaming X DDR4

LGA 1700, Intel B760 Express, ATX
25Ratings
BrandMore from Gigabyte
Delivered tomorrow
More than 10 pieces in stock
free shipping

Product details

The Gigabyte B760 Gaming X DDR4 motherboard is based on the Intel B760 chipset and supports Intel processors for the LGA 1700 socket of the 13th and 12th generations. It features four DDR4 DIMM slots operating in dual-channel mode for up to 128 GB of RAM.

Key specifications

Processor family
Celeron, Core i5 13th Gen, Core i7 13th Gen, Core i9 13th Gen, Pentium Gold
Memory type
DDR4-RAM
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, S/PDIF header, Temperature sensor connections
Internal connection options
M.2 (3x), S-ATA III (4x)
Number of memory modules (RAM)
4 x
Item number
23662030

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B760 GAMING X DDR4
Release date
9.12.2022
Sales rank in Category Motherboards
56 of 989

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel B760 Express
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, S/PDIF header, Temperature sensor connections
Operating system compatibility
Windows 10, Windows 11 Home
BIOS type
EFI AMI

Processor

Processor family
Celeron, Core i5 13th Gen, Core i7 13th Gen, Core i9 13th Gen, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Max. RAM OC
5333 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.2, HDMI 2.0

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (6x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 (3x), S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
4
Number of fan connector
4

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 2 (1x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton® Internet Security (OEM version)

Product dimensions

Length
244 mm
Width
305 mm
Height
35 mm
Weight
1790 g

Package dimensions

Length
34 cm
Width
27 cm
Height
8 cm
Weight
1.54 kg

30-day right of return
36 Months Warranty (Bring-in)
