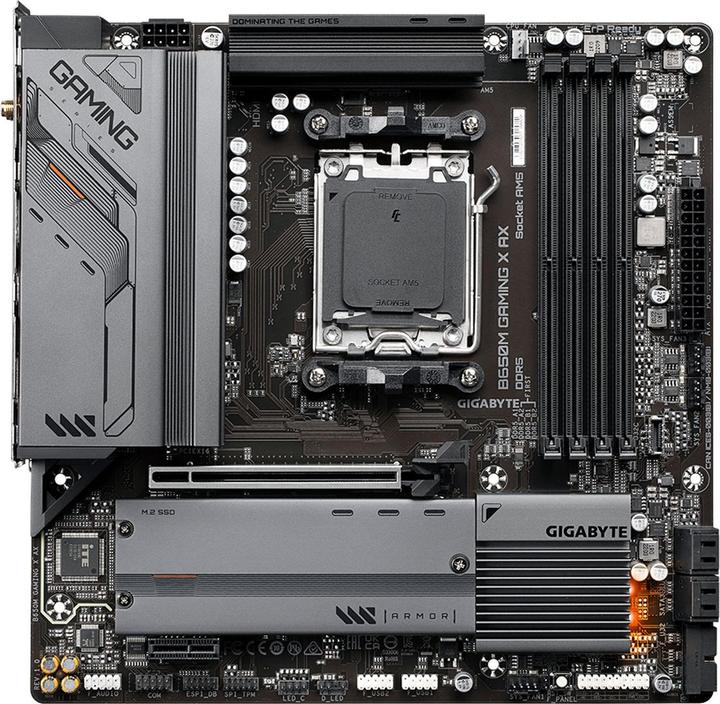

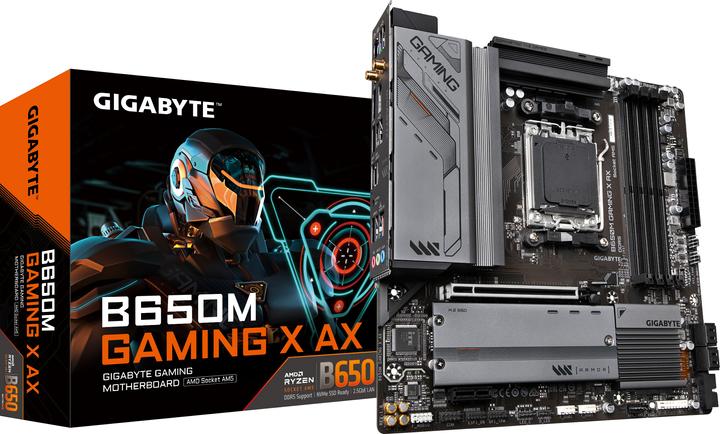

Gigabyte B650M Gaming X AX

AM5, AMD B650, mATX
6Ratings
BrandMore from Gigabyte
Delivered between Mon, 13.4. and Wed, 15.4.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

The Gigabyte Technology MB GBT AMD AM5 B650M Gaming X AX is a motherboard designed for use in gaming PCs. It features the AMD AM5 socket and supports the latest AMD Ryzen processors of the 3rd generation as well as future AM5 processors.

The motherboard is equipped with the B650 chipset and offers a variety of features and connections, including PCI Express 4.0, USB 3.2 Gen2x2, and Wi-Fi 6E. It also includes Gigabyte's RGB Fusion 2.0 technology, which allows users to customize and synchronize the lighting of their motherboard and connected RGB-compatible devices.

Key specifications

Mainboard features
Front panel audio connector
Wireless transmission
Bluetooth, Wi-Fi
Processor family
AMD 7000 Series, Ryzen 9 7th Gen
Number of memory modules (RAM)
4x
Memory type
DDR5 RAM
Internal connection options
S-ATA III (4x)

General information

Item number
23079753
Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B650M GAMING X AX
Release date
28.10.2022

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 7000 Series, Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4x
Max. memory (RAM)
256 GB
Memory chip
DDR5-6666
Max. RAM OC
6400 MHz
Supported memory speed
4800 MHz, 5200 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7800 MHz, 8000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

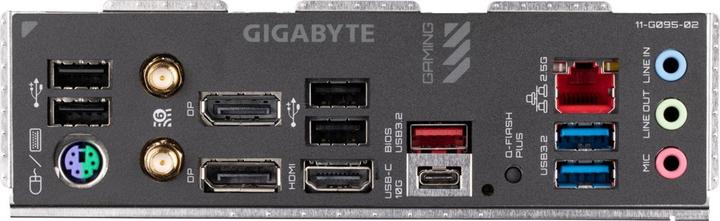

Video connections
DisplayPort (2x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Audio In

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
24-pin ATX

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
2912.85 kg
Climate contribution
CHF 16.–

Scope of delivery

Scope of delivery
SATA cable

Product dimensions

Length
244 mm
Width
244 mm
Height
35 mm
Weight
1900 g

Package dimensions

Length
28.90 cm
Width
27.60 cm
Height
7.70 cm
Weight
1.68 kg
