Enhance your computer's performance with GIGABYTE's proven motherboard series: AORUS, AERO, and GIGABYTE. With innovative design and cutting-edge features, these boards deliver outstanding performance and reliability. Whether you're a gamer, content creator, or professional user, these series are tailored to your needs, ensuring excellent quality and the latest technologies.
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, Reset button, Trusted Platform Module |
Item number | 40077901 |
Manufacturer | Gigabyte |
Category | Motherboards |

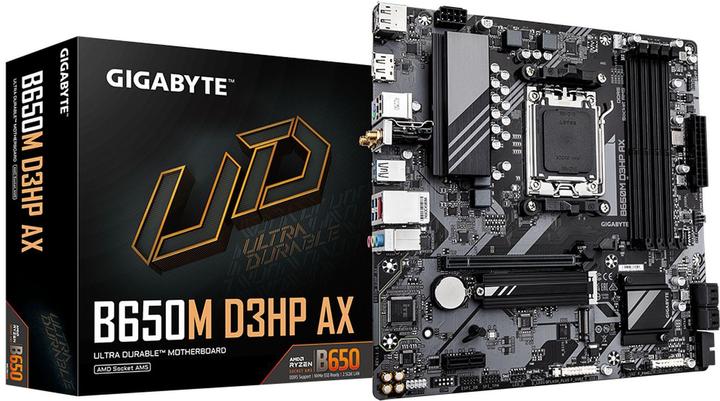

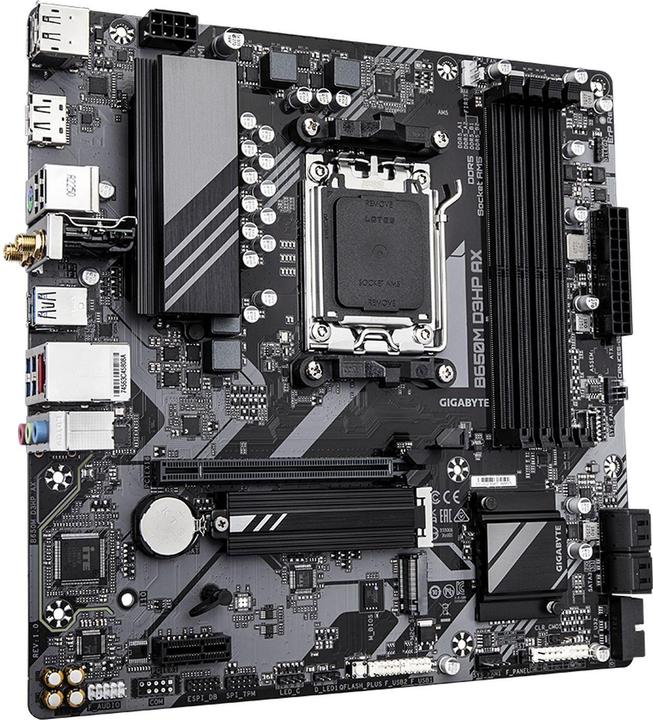

Manufacturer no. | B650M D3HP AX |
Release date | 6.9.2024 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Reset button, Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7600 MHz |
Supported memory speed | 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

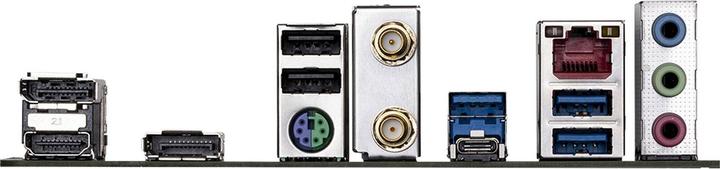

Video connections | DisplayPort (2x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm (3x), Jack 3.5mm Microphone In (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security, Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1200 g |
Length | 27 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 1.10 kg |
