Gigabyte B650E A Pro X USB4 (B650,AM5,ATX,DDR5)

AM5, AMD B650E, ATX
1Ratings
BrandMore from Gigabyte
Currently out of stock

Product details

Enhance your computer's performance with GIGABYTE's proven motherboard series: AORUS, AERO, and GIGABYTE. With innovative design and cutting-edge features, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator, or professional user, these series are tailored to meet your needs and ensure excellent quality.

Key specifications

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (4x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Power-On Button, Reset button, Thunderbolt header, Trusted Platform Module
Item number
47272662

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B650E A PRO X USB4
Release date
16.7.2024

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650E
Mainboard features
Clear CMOS Button, Power-On Button, Reset button, Thunderbolt header, Trusted Platform Module
Operating system compatibility
Windows
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be

Processor

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5-5200, DDR5-5600
Max. RAM OC
8000 MHz
Supported memory speed
4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz, 8000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
2 x USB-C, HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC1220-VB
Audio channel
7.1 Channel
Audio Connections
Digital Audio Out (1x), Headphone output (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 PCIe (4x), S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 4) (2x), PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
4

Further connections

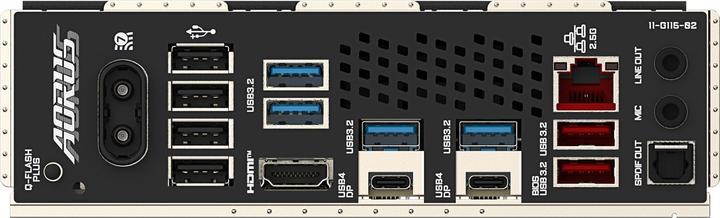

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2 (1x), USB-C 3.2 Gen 2x2 (1x)

Power supply

Power connectors
24-pin ATX

Origin

Country of origin
China, Germany, Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
- Norton® Internet Security (OEM version), LAN bandwidth management software, Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
35 mm

Package dimensions

Length
34.90 cm
Width
27.80 cm
Height
8.80 cm
Weight
2.32 kg
