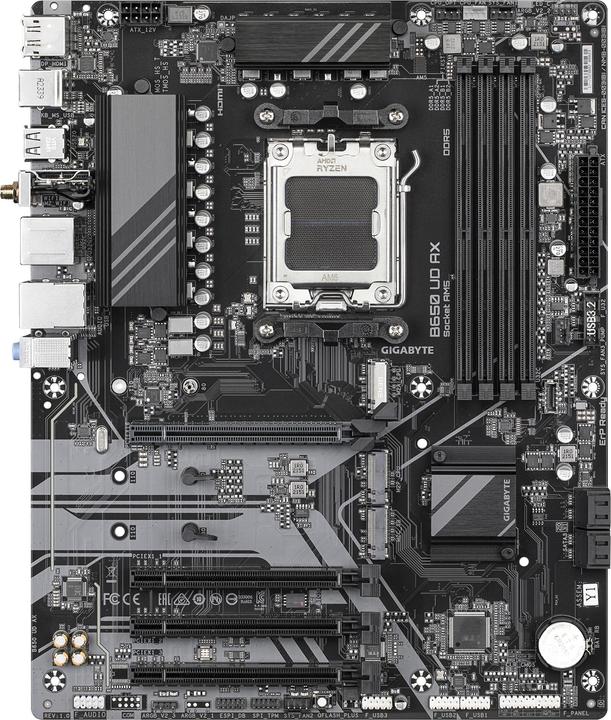

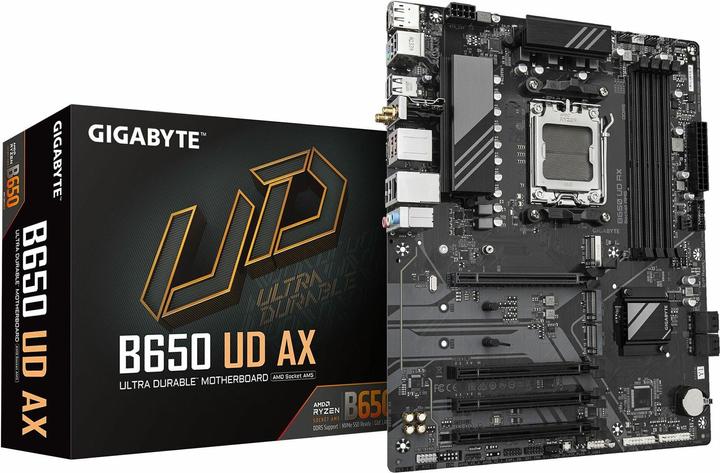

Gigabyte B650 UD AX

AM5, AMD B650, ATX
Ratings
BrandMore from Gigabyte
Delivered between Sat, 28.6. and Thu, 3.7.
More than 10 items in stock at supplier

Product details

GIGABYTE Ultra Durable motherboards, equipped with optimal components, offer premium performance and a timeless platform. The ultimate in connectivity with blazing fast data transfer speeds through the network and next-generation storage. Innovative and intuitive hardware, software and BIOS interface design to personalise your style. Smart Fan 6 ensures optimal cooling and quiet operation of your gaming PC, with support for PWM/DC fans and pumps, customisable settings and intuitive temperature monitoring.

Key specifications

Processor family
AMD 7000 Series
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (3x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector
Item number
49230366

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B650 UD AX
Release date
10.9.2024

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650
Mainboard features
Clear CMOS Button, Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7600 MHz
Supported memory speed
4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6600 MHz, 7000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

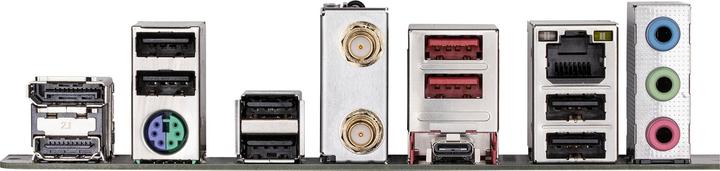

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphones, Microphone

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 (3x), S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
5
Number of fan connector
3

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x)

Power supply

Power connectors
12VHPWR, 24-pin ATX

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton Internet Security (OEM version)

Product dimensions

Length
244 mm
Width
305 mm
Height
35 mm
Weight
1950 g

Package dimensions

Length
34.80 cm
Width
27.90 cm
Height
8.50 cm
Weight
1.32 kg
