Product details
Gigabyte Ultra Durable motherboards, built with optimal components from the inside out, offer top-notch performance and a timeless platform. The ultimate connectivity with lightning-fast data transfer speeds through the next generation of networks and storage. Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Processor family | Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Parallel header, S/PDIF header, Temperature sensor connections |
Item number | 42929719 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B650UDAC-Y1 |
Release date | 14.2.2024 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Parallel header, S/PDIF header, Temperature sensor connections |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7600 MHz |
Supported memory speed | 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

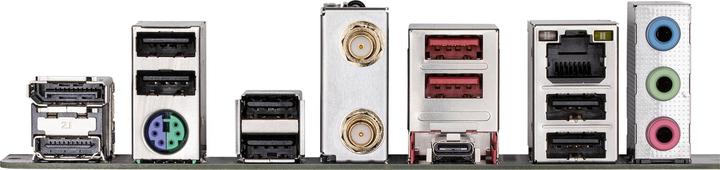

Video connections | DisplayPort (1x), HDMI (2x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8821CE |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm In (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (3x), S-ATA (4x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 12-pin PCI-E, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Cables supplied: SATA |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 1200 g |
Length | 34.80 cm |
Width | 27.50 cm |
Height | 8.40 cm |
Weight | 1.32 kg |
Specifications may include unverified machine translations.
