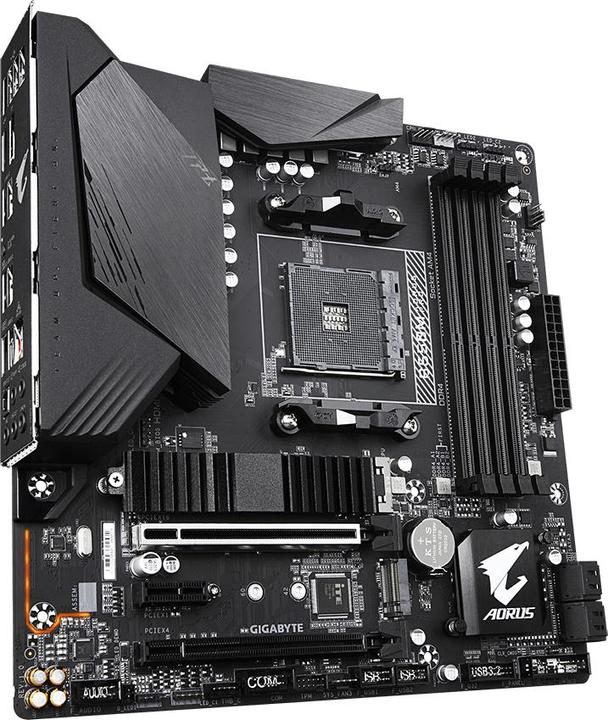

Gigabyte B550M Aorus Pro

AM4, AMD B550, mATX
6Ratings
BrandMore from Gigabyte
Currently out of stock
Free shipping starting at 50.–

Product details

The B550 chipset is the heart of the Gigabyte B550M Aorus Pro motherboard and has been specifically optimized for the Ryzen CPUs of the 3000 series (Matisse). B550 motherboards support all features of the third and fourth generation Ryzen processors, most notably the PCI Express standard in version 4.0. PCIe 4.0 is backward compatible and can be used with all expansion cards from previous generations. Depending on the motherboard, significantly higher clock rates are also possible through overclocking. The B550 chipset also enables the overclocking of the processor.

Key specifications

Processor family
Ryzen 3rd generation
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (2x), S-ATA III (4x)
Mainboard features
Error Correcting Code
Item number
13513737

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B550M AORUS PRO
Release date
3.8.2020

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM4
Chipset
AMD B550
Mainboard features
Error Correcting Code
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2133, DDR4-2400, DDR4-2667, DDR4-2933, DDR4-3200, DDR4-3333, DDR4-3600, DDR4-4000, DDR4-4400
Max. RAM OC
4400 MHz
Supported memory speed
2133 MHz, 2400 MHz, 3200 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

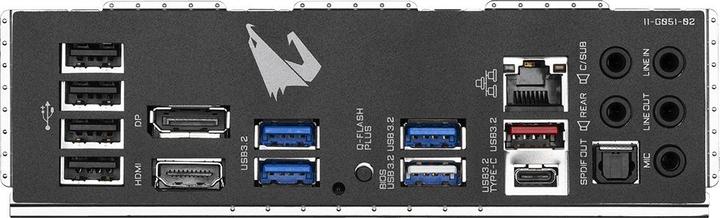

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC1200
Audio channel
7.1 Channel
Audio Connections
Coaxial S/PDIF (1x)

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (2x), S-ATA III (4x)
Expansion slot
PCI Express x16 (2x)
PCI express version (max.)
4

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm

Package dimensions

Length
27 cm
Width
27 cm
Height
7 cm
Weight
1.36 kg
