Gigabyte ATC700

169 mm
Delivered between Thu, 14.8. and Tue, 26.8.
Only 1 piece in stock at supplier
free shipping

Product details

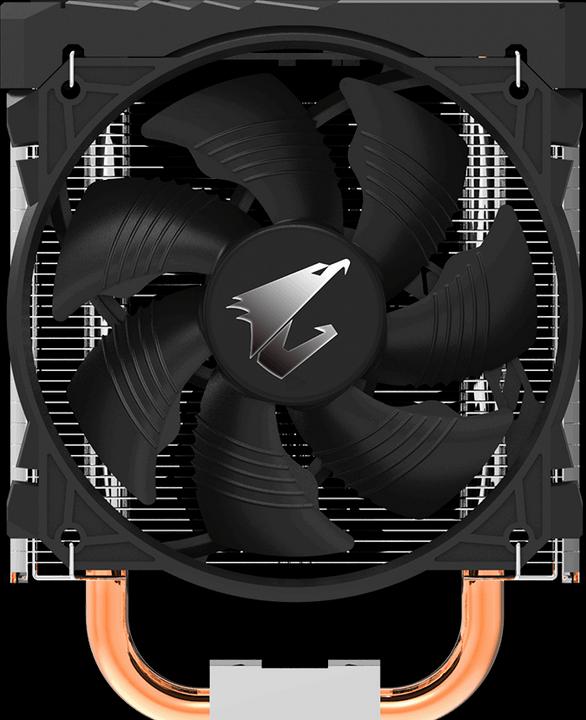

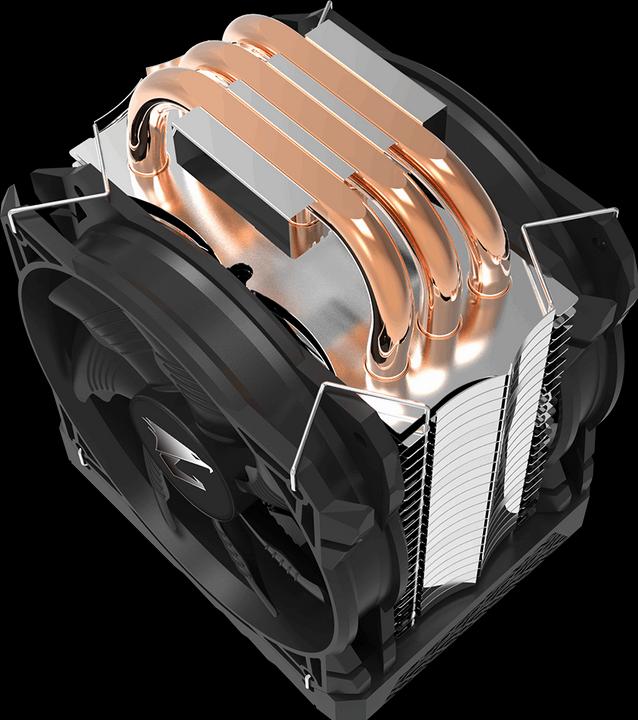

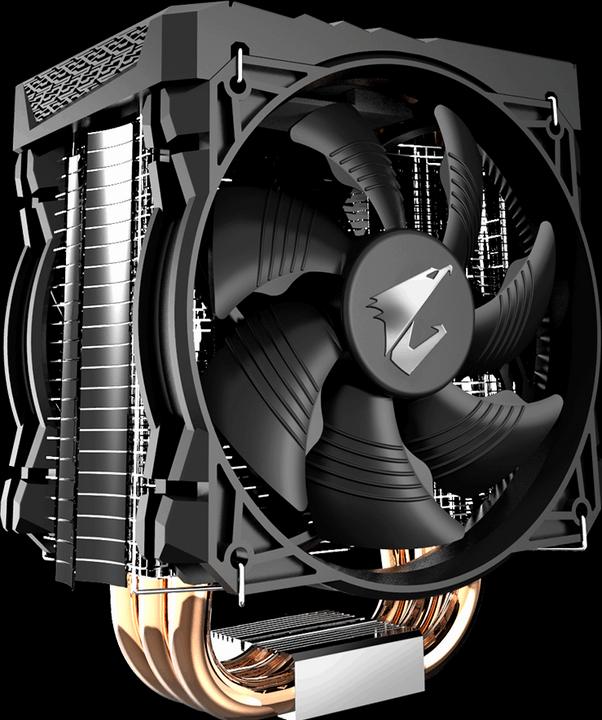

Two double ball-bearing 120mm fans with specially structured fan blades ensure improved airflow, while three Direct Touch heat pipes guarantee long durability and low temperatures. The large fin block consists of many delicate aluminum fins and is interspersed with three 10mm high-performance heat pipes that directly absorb heat from the CPU's heat spreader, resulting in particularly high thermal conductivity.

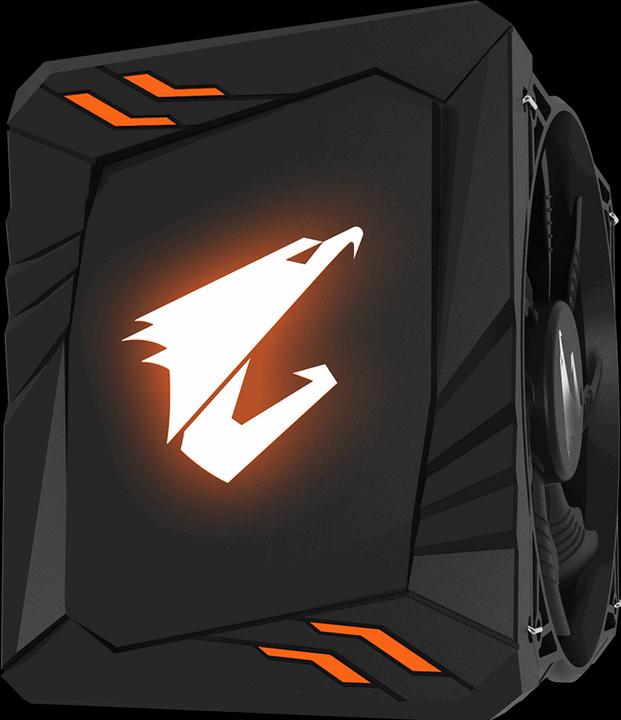

The two 120mm PWM fans are double ball-bearing, which doubles their lifespan compared to conventional sliding bearings. The specially structured fan blades achieve higher airflow for particularly effective cooling. A unique feature of the cooler is the RGB Fusion lighting, which can be synchronized with other compatible devices via the corresponding motherboard software, allowing for complex individual lighting effects in 16.7 million colors.

The mounting kit offers very high compatibility for AMD (AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, 939, 754) and Intel processors (775, 1150, 1151, 1155, 1156, 1366, 2011, 2066).

Note: Please be aware that for mounting on motherboards with AMD processor sockets, the original backplate of the motherboard is required. Please check before purchasing if this is available!.

Key specifications

Socket
AM2AM2+AM3AM3+AM4FM1FM2FM2+LGA 1150LGA 1155LGA 1156LGA 1366LGA 2011LGA 2066LGA 775Socket 754Socket 939
Height (with fan)
169 mm
Diameter
120 mm
Number of fans
2 x
Max. TDP
200 W
Airflow
90.05 m³/h
power connector
4-pin PWM
Item number
10534225

General information

Manufacturer
Gigabyte
Category
CPU coolers
Manufacturer no.
GP-ATC700
Release date
14.2.2019

Cooler properties

Fan type
Standard
Socket
AM2AM2+AM3AM3+AM4FM1FM2FM2+LGA 1150LGA 1155LGA 1156LGA 1366LGA 2011LGA 2066LGA 775Socket 754Socket 939
Cooler mounting
Push pin
Supported fan sizes
120mm

Heat sink properties

Number of heatpipes
3
Diameter heat pipe
10 mm
Materials radiator core
Copper
Material cooling fins
Aluminium

Fan dimensions

Diameter
120 mm

Fan properties

Number of fans
2 x
Maximum mountable fan
2
Max. Speed
1700 RPM
Max. TDP
200 W
Airflow
90.05 m³/h
Static pressure
0.20 Pa
Max. noise level
12 dB
LED colour
RGB
Fan bearing type
Double ball bearing

Connections

power connector
4-pin PWM

Power supply

Power consumption
2.52 W
Voltage
12 V

Scope of delivery

Scope of delivery
Manual

Voluntary climate contribution

CO₂-Emission
Climate contribution

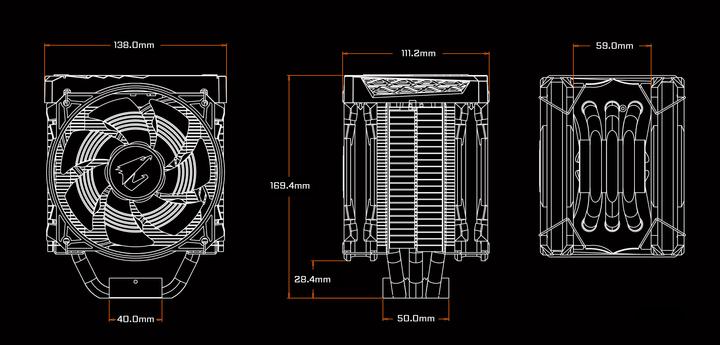

Product dimensions

Width (with fan)
139 mm
Length (with fan)
109 mm
Height (with fan)
169 mm
Weight
955 g
