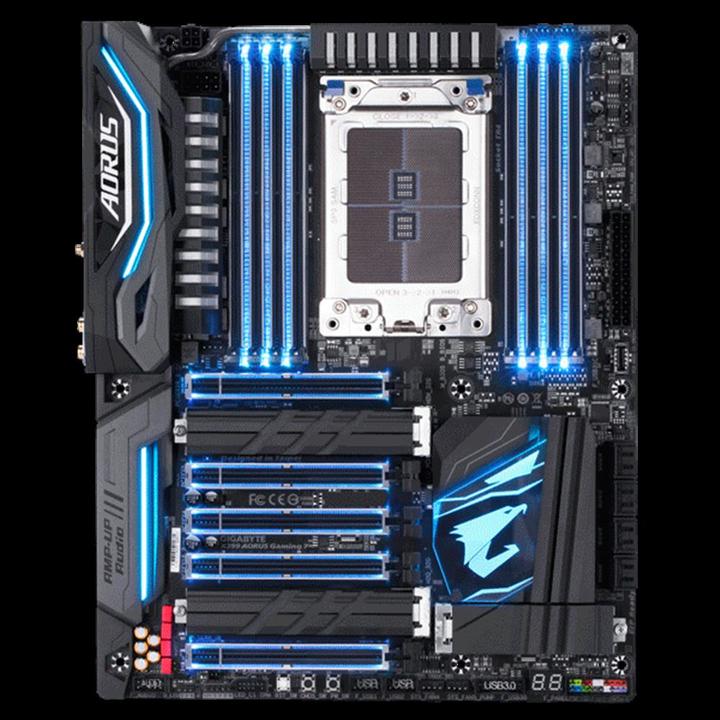

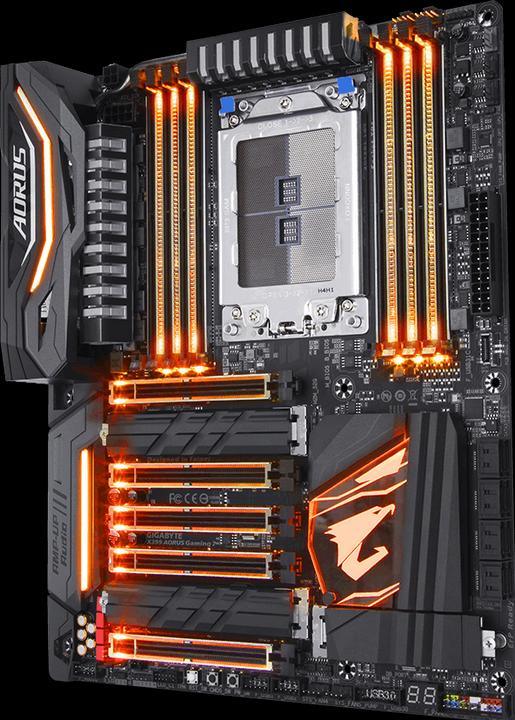

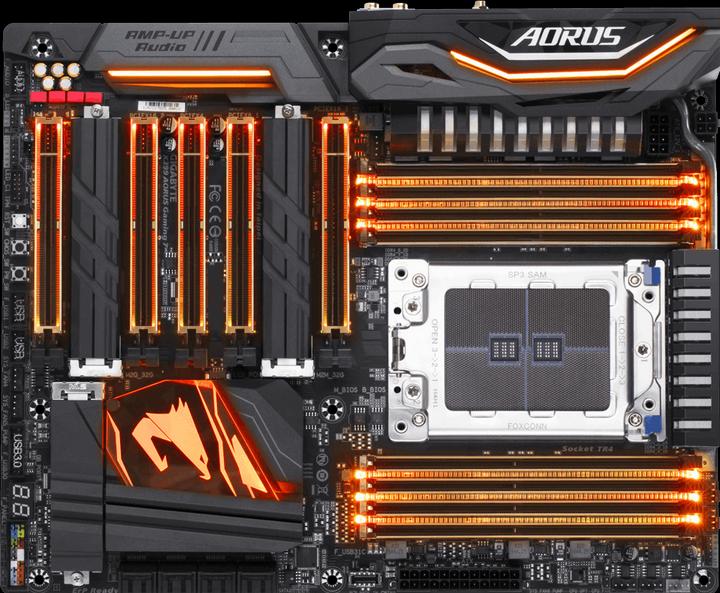

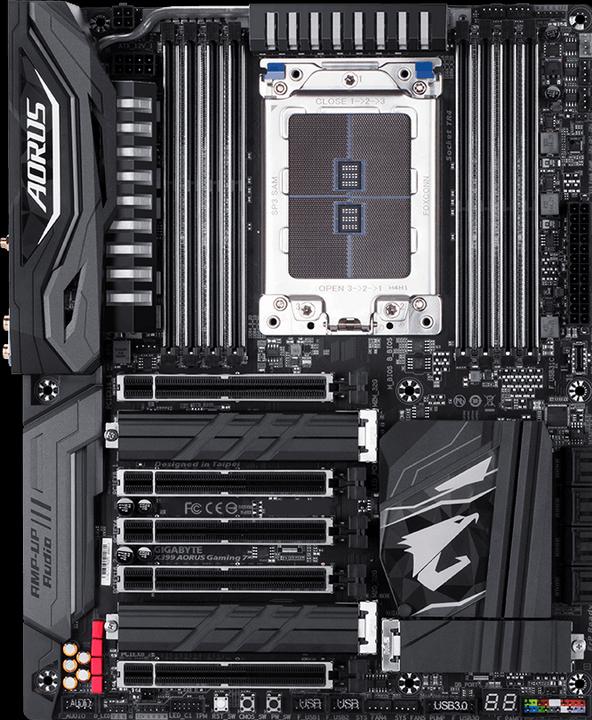

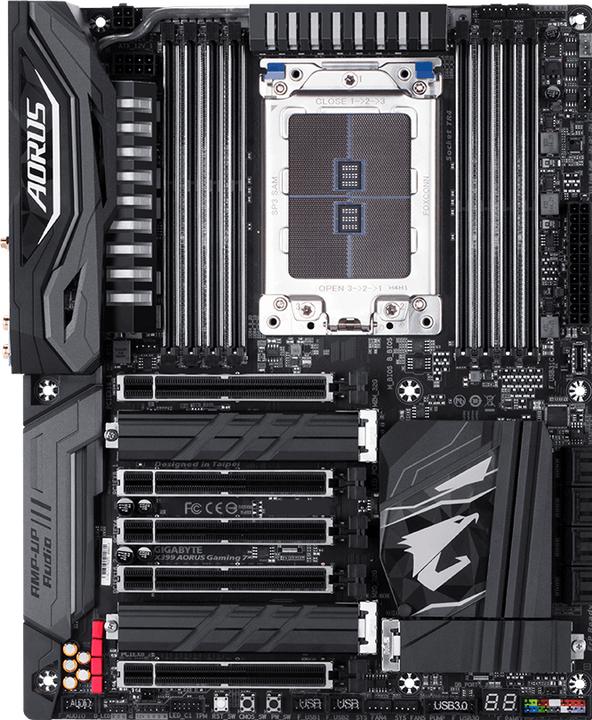

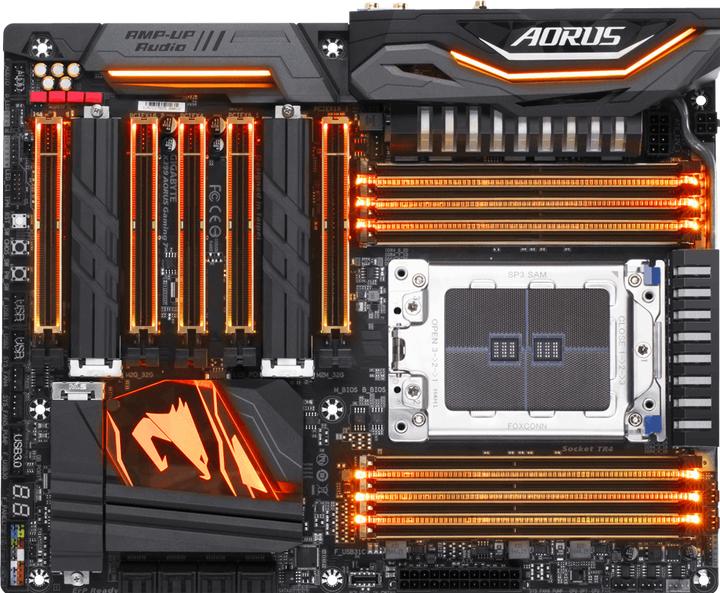

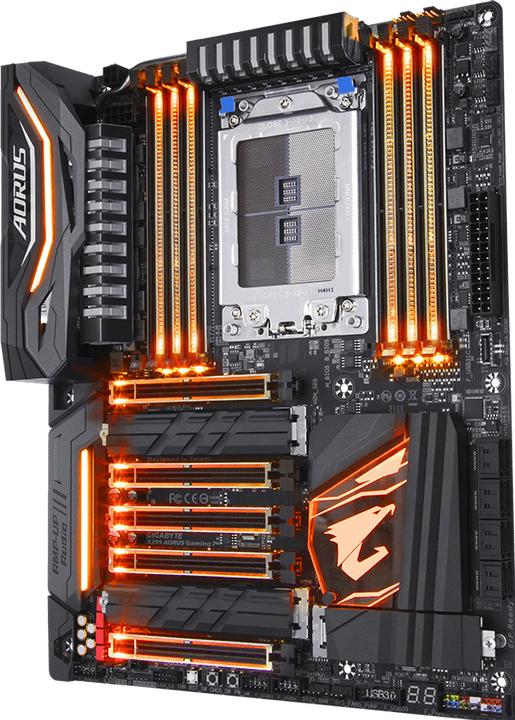

Gigabyte AORUS X399 Gaming 7 (TR4, AMD X399, ATX)

Art-Nr 6435459

Expected delivery date: The day after tomorrow 26.06.2018 if ordered by tomorrow 17:00

Specifications

Key specifications
PCI express version (max.)	3
Multi-GPU technology	NVIDIA Quad SLI, AMD Quad-GPU CrossFireX

General information
Manufacturer	Gigabyte
Product type	Motherboards i Motherboards In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo. More information...
Item number	6435459
Manufacturer no.	X399 AORUS Gaming 7
Sales rank in Product type Motherboards	99 of 489
External links	Manufacturer's site (en)

Motherboard properties
Form factor i Form factor In computer technology, the form factor is an indication of the size and fastening possibilities of a component used in a computer. This standardization makes it easy to assemble and replace various components. More information...	ATX i ATX ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995 to improve on previous de facto standards like the AT form factor. More information...
CPU socket i CPU socket A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering. Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket. More information...	TR4
Chipset i Chipset The chipset supports the processor in its task. More information...	AMD X399
BIOS Flashback i BIOS Flashback Simple way to restore the BIOS to its original state. More information...	Yes
SuperSpeed USB 3.0 i SuperSpeed USB 3.0 USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. The standard from 2008 defines a 5 Gbit/s transfer rate. More information...	Yes
UEFI BIOS i UEFI BIOS The Unified Extensible Firmware Interface (UEFI) is a specification that defines a software interface between an operating system and platform firmware. UEFI is meant as a replacement for the Basic Input/Output System (BIOS) firmware interface, present in all IBM PC-compatible personal computers. In practice, most UEFI images have legacy support for BIOS services. UEFI can be used to allow remote diagnostics and repair of computers, even without another operating system. More information...	Yes

Processor compatibility
Processor family i Processor family The family the processor belongs to.	AMD Ryzen Threadripper

Memory i Memory Computer data storage, often called storage or memory, is a technology consisting of computer components and recording media used to retain digital data. It is a core function and fundamental component of computers. More information...
Number of memory modules i Number of memory modules A memory module or memory latch is a small circuit board on which several memory components (dynamic RAM in the form of integrated circuits) are soldered. Memory modules form or expand the main memory of electronic devices such as computers or printers and are plugged into specially designed slots. More information...	8 x
Max. memory i Max. memory A data memory or storage medium is used to store data or information. The term storage medium is also used as a synonym for a specific data carrier. More information...	128 GB
Memory chip i Memory chip Random-access memory is a form of computer data storage. A random-access device allows stored data to be accessed directly in any random order. In contrast, other data storage media such as hard disks, CDs, DVDs and magnetic tape, as well as early primary memory types such as drum memory, read and write data only in a predetermined order, consecutively, because of mechanical design limitations. Therefore the time to access a given data location varies significantly depending on its physical location. More information...	DDR4-2133
Max. RAM OC i Max. RAM OC Describes how much memory can be overclocked (maxium RAM overclocking).	3600 MHz
Memory type i Memory type DDR-SDRAM ("Double Data Rate Synchronous Dynamic Random Access Memory") is a type of random access memory (RAM) currently available in three categories. DDR-SDRAM with 184 contacts, DDR2-SDRAM with 240 contacts and DDR3-SDRAM also with 240 contacts. They are mainly used for memory modules of the DIMM or SO-DIMM standard as main memory in PCs and laptops. More information...	DDR4-RAM
Channel Architecture	4 i 4 More information...
RAM buffer i RAM buffer In addition to bandwidth and capacity variants, modules can 1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation. 2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation. 3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.	unbuffered
Memory form factor i Memory form factor A DIMM or dual in-line memory module, comprises a series of dynamic random access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. The main difference between SIMMs and DIMMs is that DIMMs have separate electrical contacts on each side of the module, while the contacts on SIMMs on both sides are redundant. Another difference is that standard SIMMs have a 32-bit data path, while standard DIMMs have a 64-bit data path. More information...	DIMM 288

Mass storage controller 1
Data storage controller	AMD X399
S-ATA III i S-ATA III Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s. More information...	8 x
M.2	3 x
RAID configuration i RAID configuration RAID (redundant array of independent disks, originally redundant array of inexpensive disks) is a storage technology that combines multiple disk drive components into a logical unit. Data is distributed across the drives in one of several ways called "RAID levels", depending on what level of redundancy and performance (via parallel communication) is required. More information...	0 i 0 (block-level striping without parity or mirroring) has no (or zero) redundancy. It provides improved performance and additional storage but no fault tolerance. More information... , 1 i 1 (mirroring without parity or striping), data are written identically to two drives, thereby producing a "mirrored set"; the read request is serviced by either of the two drives containing the requested data, whichever one involves least seek time plus rotational latency. More information... , 10 i 10 Ein RAID-10-Verbund ist ein RAID 0 über mehrere RAID 1. Es werden dabei die Eigenschaften der beiden RAIDs kombiniert: Sicherheit und gesteigerte Schreib-/Lesegeschwindigkeit. Ein RAID-10-Verbund benötigt mindestens vier Festplatten. More information...

Expansion slots i Expansion slots The expansion card (also expansion board, adapter card or accessory card) in computing is a printed circuit board that can be inserted into an electrical connector, or expansion slot on a computer motherboard, backplane or riser card to add functionality to a computer system via the expansion bus. More information...
PCI express version (max.) i PCI express version (max.) PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCIe, is a computer expansion card standard designed to replace the older PCI, PCI-X, and AGP bus standards. PCIe has numerous improvements over the aforementioned bus standards, including higher maximum system bus throughput, lower I/O pin count and smaller physical footprint, better performance-scaling for bus devices, a more detailed error detection and reporting mechanism, and native hot-plug functionality. More recent revisions of the PCIe standard support hardware I/O virtualization. More information...	3
PCI Express x16 i PCI Express x16 PCI Express ("Peripheral Component Interconnect Express", abbreviated: PCIe or PCI-E) is an extension standard for connecting peripheral devices to the chipset of a main processor. PCIe is the successor of PCI, PCI-X and AGP and offers a higher data transfer rate per pin compared to its predecessors. During its development the interface was called "3GIO", which stands for "3rd Generation Input/Output". More information...	5 x

Graphics properties i Graphics properties Beschreibt die Grafik Eigenschaften des Gerätes.
Multi-GPU technology i Multi-GPU technology In 3D computer graphics, various methods are used to distribute the load on several graphics chips or graphics cards. The collective term for these different techniques is Multi-GPU. Although every manufacturer offers similar operating modes, the name of the respective technology is a special marketing word creation. More information...	NVIDIA Quad SLI , AMD Quad-GPU CrossFireX

Network
RJ45/LAN port i RJ45/LAN port Network connection allows connection to an internal or external network. More information...	1 x
Max. port speed i Max. port speed Describes the maximum data transfer rate. Is not necessarily supported by all ports. More information...	1000 Mbit/s i 1000 Mbit/s In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second). More information...
Ethernet controller i Ethernet controller Describes which Ethernet controller(s) are installed. More information...	Rivet Networks Killer E2500

Wireless connectivity i Wireless connectivity All network connectivity bluetooth, infrared ports, WLAN, UMTS etc. Standards are listed here as well.
Wi-Fi i Wi-Fi A wireless local area network (WLAN) links two or more devices using some wireless distribution method (typically spread-spectrum or OFDM radio), and usually providing a connection through an access point to the wider Internet. More information...	Yes
Wi-Fi standard i Wi-Fi standard Describes the supported modes of transmission of a WLAN. More information...	802.11 a i 802.11 a IEEE 802.11a-1999 or 802.11a is an amendment to the IEEE 802.11 specification that added a higher data rate of up to 54 Mbit/s using the 5 GHz band. It has seen widespread worldwide implementation, particularly within the corporate workspace. The amendment has been incorporated into the published IEEE 802.11-2007 standard. More information... , 802.11 ac i 802.11 ac Im Jahr 2013 soll der neue Standard 802.11ac verabschiedet werden. Hauptvorteil gegenüber 802.11n ist die schnellere Datenübertragung mit einer Bruttodatenrate bis zu 6900MBit/s. Netto schaffen gute Geräte aber immerhin das dreifache der 3-Stream-MiMO-Geräte. Die Datenübertragung geschieht ausschliesslich im 5-GHz-Band und fordert eine grössere Kanalbreite von 80 MHz, optional eine Kanalbreite von 160 MHz. More information... , 802.11 b i 802.11 b IEEE 802.11b-1999 or 802.11b, is an amendment to the IEEE 802.11 specification that extended throughput up to 11 Mbit/s using the same 2.4 GHz band. More information... , 802.11 g i 802.11 g IEEE 802.11g-2003 or 802.11g is an amendment to the IEEE 802.11 specification that extended throughput to up to 54 Mbit/s using the same 2.4 GHz band as 802.11b. More information... , 802.11 n i 802.11 n IEEE 802.11n-2009 is an amendment to the IEEE 802.11-2007 wireless networking standard to improve network throughput over the two previous standards—802.11a and 802.11g—with a significant increase in the maximum net data rate from 54 Mbit/s to 600 Mbit/s (slightly higher gross bit rate including for example error-correction codes, and slightly lower maximum throughput) with the use of four spatial streams at a channel width of 40 MHz.802.11n standardized support for multiple-input multiple-output and frame aggregation, and security improvements, among other features. More information...
Bluetooth i Bluetooth The device can be connected to another device via Bluetooth.	Yes

audio
Chip	ALC1220
Audio channel i Audio channel The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.	7.1 Channel
Audio (3. 5 mm) connectors i Audio (3. 5 mm) connectors There are 3.5mm audio connections. (At least audio output).	5 x
Optical TOSLINK i Optical TOSLINK S/PDIF (Sony/Philips Digital Interconnect Format) is a type of digital audio interconnect cable used in consumer audio equipment to output audio over reasonably short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors. More information...	1 x

Internal interfaces
USB 3.0 type A i USB 3.0 type A The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus. More information...	1 x
USB 2.0 type A i USB 2.0 type A Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed. The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm. More information...	2 x
Number of fan connector i Number of fan connector Describes how many fan connectors are present on the motherboard. More information...	6
Onboard power button i Onboard power button Power-On button on the motherboard.	Yes
Reset button onboard i Reset button onboard Reset button directly on the mainboard.	Yes
Temperature sensor connections i Temperature sensor connections Connectors on the motherboard to connect additional external temperature sensors.	2 x

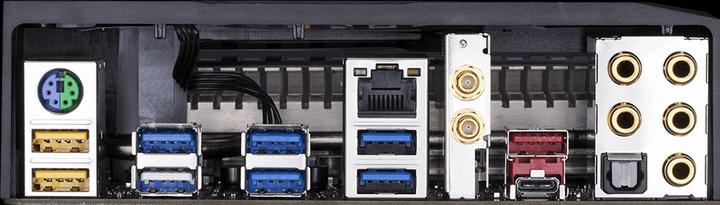

External interfaces i External interfaces Describes which interfaces the device has that are accessible from outside (the device does not need to be opened).
PS/2 Combo i PS/2 Combo The PS/2 connector is a 6-pin Mini-DIN connector used for connecting some keyboards and mice to a PC compatible computer system. More information...	1 x
USB 3.1	9 x
USB Type-C	1 x

Power supply i Power supply All power supply related details.
Power connectors i Power connectors Describes how many power connections the device/object has/requires. More information...	24-pin ATX i 24-pin ATX More information... , 8-pin ATX 12V i 8-pin ATX 12V More information... , 4-pin ATX 12V i 4-pin ATX 12V More information...

Delivery contents i Delivery contents The scope of delivery means the included accessories.
S-ATA cable	4 x
Manual i Manual A user guide or user's guide, also commonly known as a manual, is a technical communication document intended to give assistance to people using a particular system.[1] It is usually written by a technical writer, although user guides are written by programmers, product or project managers, or other technical staff, particularly in smaller companies. User guides are most commonly associated with electronic goods, computer hardware and software. More information...	Yes

Product dimensions i Product dimensions Physical size of an object
Length	305 mm
Width	244 mm

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data

Returns and warranty

Dead on arrival (DOA) 14 Days Bring-in

Warranty 36 month Bring-in

30-day right of return

Availability

Customer questions and answers

The 2 most helpful customer questions

Hallo Community. Frage: Gigabyte AORUS Gaming 7 X399 TR4: folg. Probl. n. Zus.-Bau: CPU LED leuchtet; ein Zeichen für defekte CPU/MB/Kontakt CPU->MB? System startet nicht; was tun/wie rep.? Thnx all.

Roger.Weihrauch

01.06.2018

2 answers

Accepted answer

Hallo Roger, wenn du alles korrekt montiert hast überprüfe nochmal ob du die schrauben am sockel auch genug fest angezogen hast und ob du alle kabel für die cpu stromversorgung angeschlossen hast. wenn das nichts bringt musst du die cpu entfernen und mal den sockel prüfen ob der nicht defekt ist,sprich keine pins beschädigt sind oder die gold kontakte an der cpu beschädigt sind. wenn es deines erachtens alles ok aussieht ist es sehrwahrscheinlich das mainboard das defekt ist. hoffe konnte dir etwas helfen.

N-Systems.ch

01.06.2018

Momentan absolut keine Kaufempfehlung. Auch nicht ASUS Boards. Wenn aber der Konstruktionsfehler behoben ist eine gute Wahl.

Bei diesem Motherboard handelt es sich um tolles Teil, das viele tolle features und eine solide Performance bietet. Trotzdem kann ich es zu diesem Zeitpunkt nicht Empfehlen, wenn wie auch die Asus Motherboard werden die Sockel-Mount von Foxconn entwickelt. Diese sind jedoch eine Fehlkonstruktion. Denn der TR-Chip ist nur teilweise unter voller Last des Körpergewichtes anzuschrauben. War selber nicht in der Lage die Schraube 2 und 3 zu fixieren. Denn diese wurden von Foxconn schlichtweg zu kurz konstruiert. Daher empfehle ich auf ein Board von Asrock oder MSI auszuweichen die LOTUS als Hersteller der Sockel-Mount beinhalten. Bei MSI aber auch auf das RAM schauen da nicht alle RAM-Sticks momentan mit dem Board funktionieren.…more

+ Gute Kühlung

+ Gutes OC (Besitzt 2 Stromanschlüsse 8Pin + 4Pin)

+ RGB ist ein "Nice to have"

+ Viel SATA und M.2 Slots

- Fehlkonstruktion von Foxconn was Sockel nicht anschrauben lässt.

- Braucht 2 Stromanschlüsse vom Power Supply 8Pin + 4Pin (Teueres PSU notwendig.)

Poigel

25.10.2017

3 Comments

Report abuse

Kann es beser sein

one of the best Mainboard you can buy

+ Geschwindigkeit

+ RGB, RGB controller

+ einfached Bios UI

jameskofi

(purchased this product)

30.03.2018

1 Comment

Report abuse
