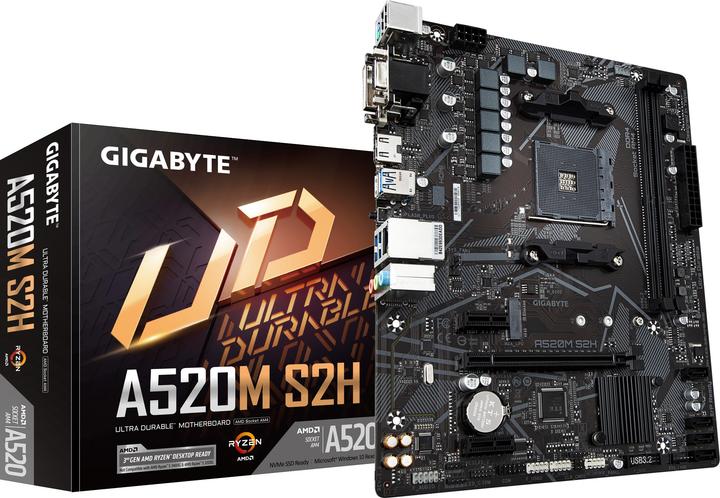

Gigabyte A520M S2H 1.0 Processor family AMD, processor socket AM4

AM4, AMD A520, mATX
5Ratings
BrandMore from Gigabyte
Delivered between Fri, 12.9. and Tue, 16.9.
1 item ordered
free shipping

Product details

The AMD A520 is an entry-level chipset that supports Ryzen 3000 processors based on the Zen 2 architecture. Unlike the AMD B550 and X570 chipsets, the A520 does not support PCIe 4.0 or overclocking. Motherboards with the A520 chipset support PCIe 3.0 and provide a reliable foundation for office and home users for their PCs.

Key specifications

Processor family
Athlon, Ryzen 3 4th Gen, Ryzen 3 5th Gen, Ryzen 5 4th Gen, Ryzen 5 5th Gen, Ryzen 7 4th Gen, Ryzen 7 5th Gen, Ryzen 9 4th Gen, Ryzen 9 5th Gen
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
24-pin ATX power connector (1x)
Mainboard features
Clear CMOS Button
Item number
13646040

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
A520M S2H
Release date
31.8.2020
Sales rank in Category Motherboards
213 of 991

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM4
Chipset
AMD A520
Mainboard features
Clear CMOS Button
BIOS type
UEFI AMI

Processor

Processor family
Athlon, Ryzen 3 4th Gen, Ryzen 3 5th Gen, Ryzen 5 4th Gen, Ryzen 5 5th Gen, Ryzen 7 4th Gen, Ryzen 7 5th Gen, Ryzen 9 4th Gen, Ryzen 9 5th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Max. RAM OC
5100 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered

Graphics properties

Video connections
DVI-D (1x), HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Gigabit Ethernet
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC887
Audio channel
7.1 Channel
Audio Connections
HDMI (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
24-pin ATX power connector (1x)
Expansion slot
PCI Express x1 (Gen 3) (1x), PCI Express x16 (3x)
PCI express version (max.)
3
Number of fan connector
2

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (4x)

Power supply

Power connectors
20+8 pin ATX

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
HD Audio (8-channel)

Product dimensions

Length
205 mm
Width
244 mm
Height
35 mm
Weight
600 g

Package dimensions

Length
25 cm
Width
21 cm
Height
5 cm
Weight
716 g
