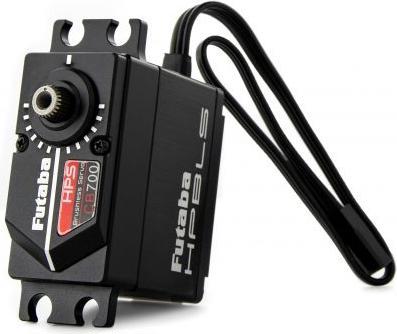

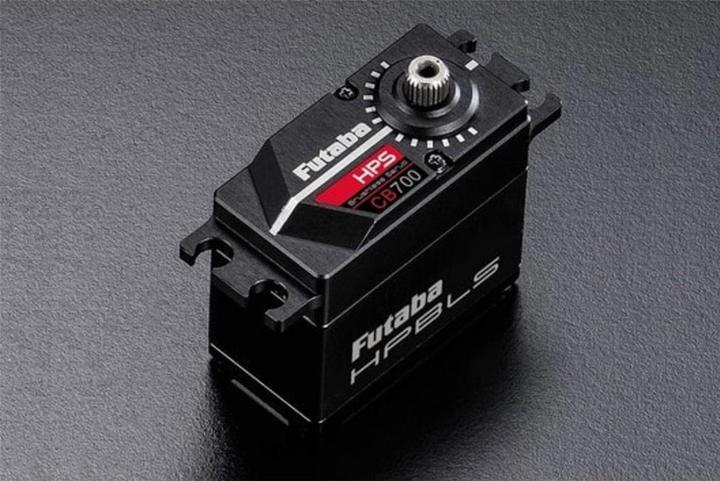

Futaba Servo HPS CB700 Car 0.07s/49.0kg

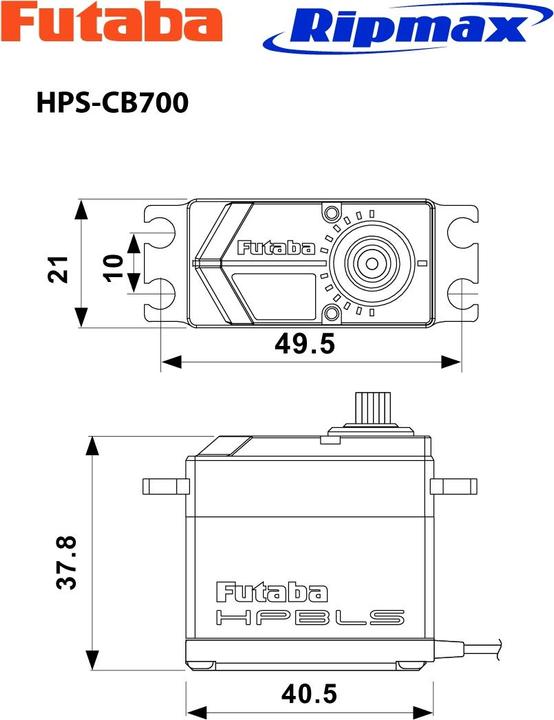

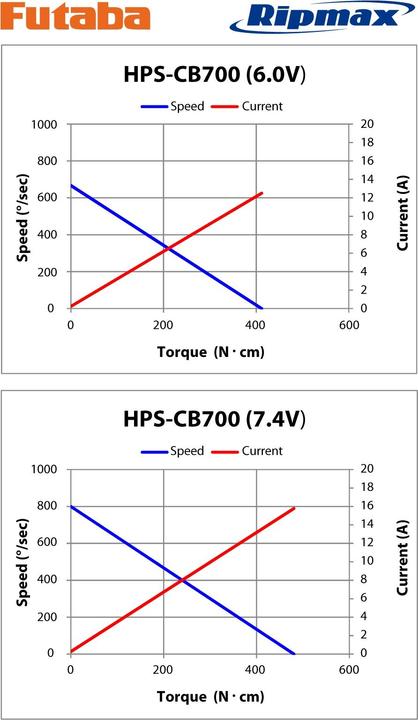

The Futaba HPS-CB700 is the strongest RC car servo of all time. With a torque of 49 kgcm and a response time of 0.07 sec/60° at 7.4V, it sets new standards. A new HPS brushless motor ensures that the servo operates significantly cooler and consumes less power than before. The new full aluminum housing measures 40.5 x 21 x 37.7 mm. The servo is fully compatible with the SR mode of the T7XC and T7PX and can be programmed via S.BUS2 technology. All S.BUS2 servos can be connected to conventional receivers with PWM modulation. The addressing of the servos can be done in various ways: through the S.BUS receiver, with the handy programmer SBC-1, via the PC-Link software with the USB adapter CIU-2, or at the S.BUS connection of the transmitter. The following parameters are configurable: S.BUS channel assignment, servo reverse, servo type (normal/retractable landing gear), soft start (on/off), mode selection on signal loss (hold or free), soft servo operation (on/off), servo position (servo tester), servo center adjustment +/- 300 µs (approx. 30 degrees), servo speed (0.39...9 seconds per 45 degrees), deadband setting, separate left and right servo travel adjustment (approx. 50...175%), start force, damping, holding force, and ID storage.

Features:

• Powerful S.BUS2 digital servo with metal housing and metal gears
• Hi-Voltage
• T-FHSS SR compatible
• Ball bearing supported
• High resolution
• High return accuracy
• Low-wear potentiometer
• Water-resistant.
