Futaba Receiver R3008SB 2.4 GHz T-FHSS

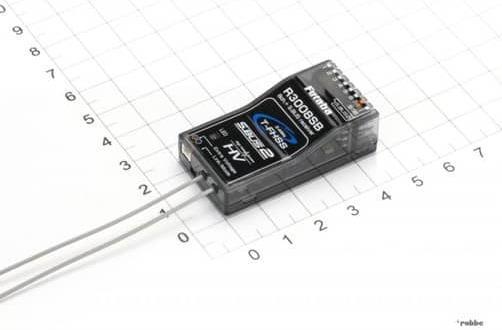

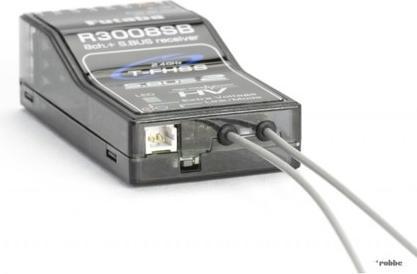

Compact and lightweight 10-channel receiver R3008SB 2.4 GHz, T-FHSS®, with integrated telemetry transmitter. Despite its small dimensions of 47.3 x 24.9 x 14.3 mm and a weight of only 11 g, the R3008SB receiver is a versatile device. It features an integrated telemetry transmitter and can transmit up to 32 telemetry data sets with a range of up to 1000 m to the ground. Naturally, the receiver has 8 PWM outputs for standard servos. Channel 8 can be switched to S.BUS(1) mode, allowing up to 10 S.BUS(1) servos or devices to be connected to this output. Switch channels 9 and 10 are only accessible via the S.BUS 1 or 2 output and require compatible S-BUS devices/servos. Through the separate, bidirectional S.BUS2 connection, both S.BUS2 servos and sensors can be connected, transmitting up to 32 telemetry channels. The integrated transmitter sends the telemetry data from the S.BUS2 connection to the T-FHSS® transmitter, where it can be displayed or output audibly (voice, vibration alarm, tone, or beeper). When the receiver is connected, data such as receiver battery voltage, external voltage (up to 70 V-DC), and antenna signal strength—essential telemetry data—are automatically transmitted to the ground. This receiver only works with the new telemetry-capable T-FHSS® transmitters. It is not compatible with FASST or FASSTest® or S-FHSS transmitters or these modulation types.
