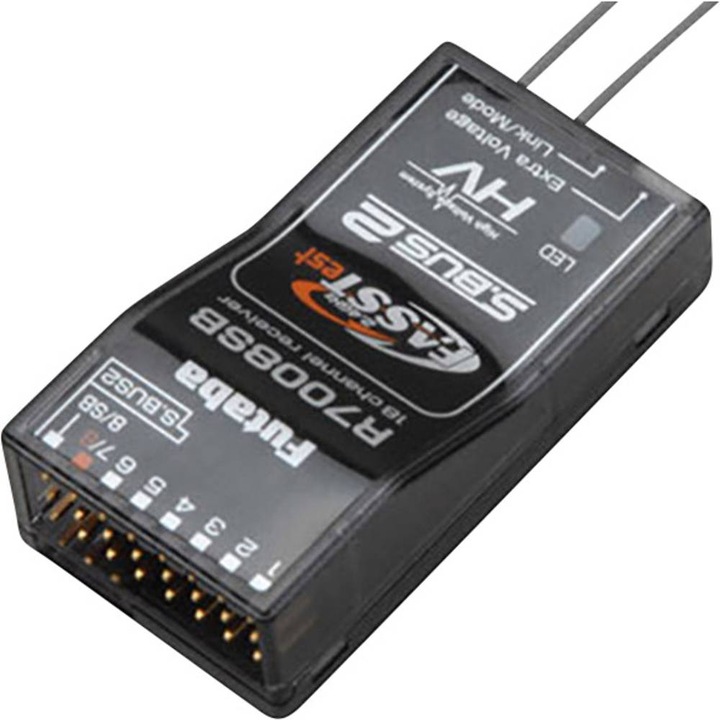

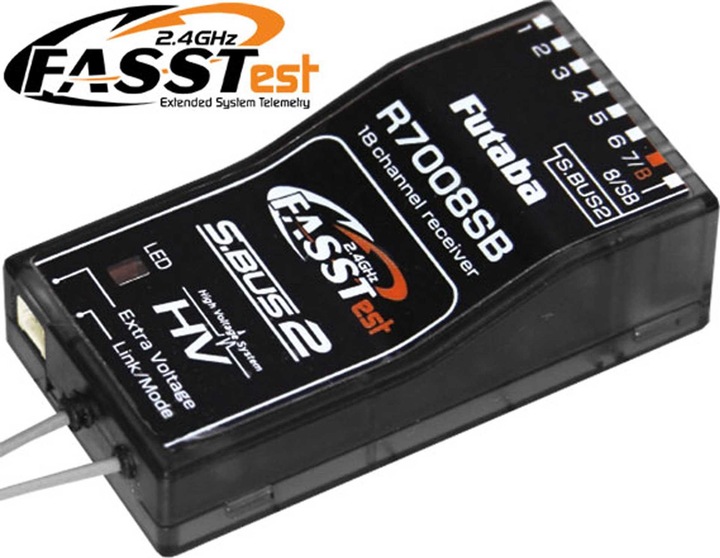

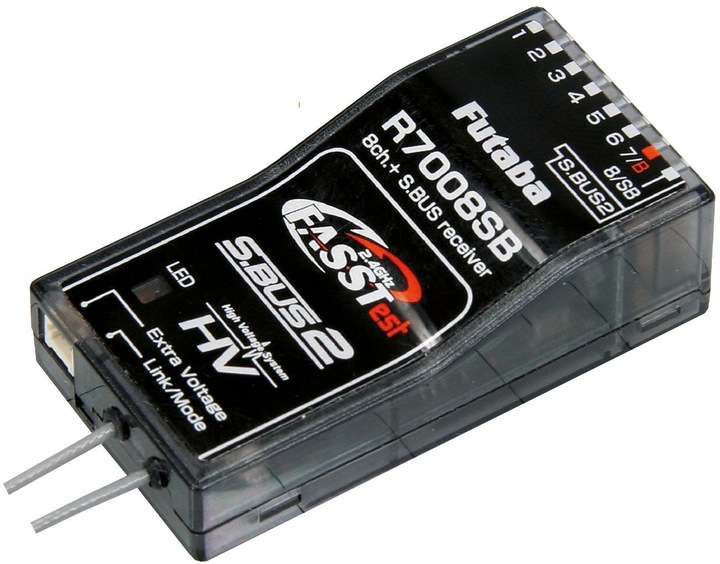

Futaba R7008sb

The Futaba R7008SB is a compact and lightweight FASSTest 2.4 GHz receiver with an integrated telemetry function. Its ultra-slim design makes it ideal for models with narrow fuselages. The R7008SB features antenna diversity and continuously checks the signal quality of both antenna inputs, allowing for quick and seamless switching to the better input signal.

Outputs 1 to 8 can accommodate 8 conventional analog or digital servos. To achieve even shorter response times, the pulse output for digital servos can be reduced to 6.3 ms (instead of 16 ms for analog servos). The PWM outputs are switchable, allowing either PWM channels 1-8 or 9-16 to be used. To utilize 16 PWM channels, two receivers must be used in parallel.

Up to 18 programmable S.BUS servos or peripheral devices such as gyros, flybarless systems, or speed controllers can be connected to the S.BUS output (channel 8).
