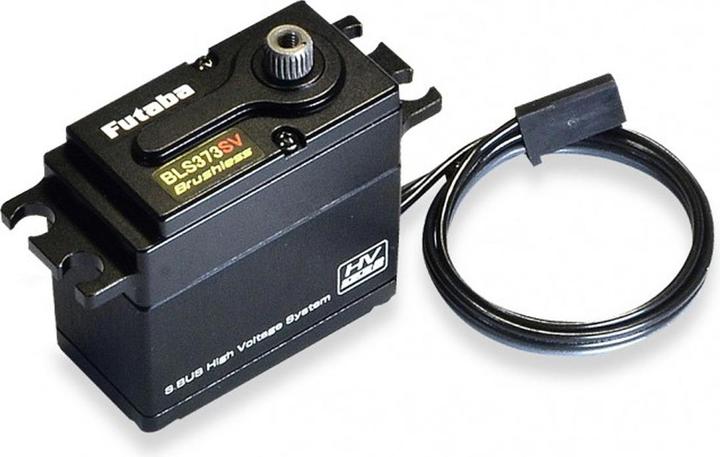

Futaba BLS373SV Car Servo

Delivered between Sat, 5.7. and Wed, 9.7.
More than 10 pieces in stock at supplier
free shipping

Product details

Latest 1/5 Car HV Servo. Supports the SR mode of the T7PX transmitter. Programmable and compatible with S.Bus and S.Bus2 systems. Can be connected to a PC and programmed using the separately available CIU-2 / -3 USB adapter. The gear end wheel is now made of stainless steel. The teeth for the servo arm are also made of stainless steel, which significantly increases load capacity in the force direction.

The new housing geometry has enabled a mechanically reinforced shaft output at the top of the housing. A high-quality brushless motor serves as the drive.

Digital S.BUS2 ultra-power servo with an incredible torque of 370 Ncm. The robust metal gear is supported by four bearings, and the housing is secured with six screws. The housing is made of aluminum to optimize gear stability and motor cooling. Despite the extremely high torque, the servo has extremely short response times of 0.11s / 60°. The servo is designed for high voltage, allowing power supply directly from a 2s LiPo battery.

The housing is completely CNC-machined from aluminum and designed for maximum load.

Advantages of brushless motor technology:
• 30% shorter response time
• Better acceleration
• More resistant to vibrations and impacts
• High efficiency, resulting in lower motor heating
• No brush wear, leading to five times the motor lifespan
• Special gear with maximum play-free operation
• Cobalt-samarium motor magnets
• Highest resolution
• Same power consumption as conventional digital servos

Technical specifications:
· Operating voltage: 4.8 V... 7.4 V
· Response speed 60° (7.4 / 6.0V): 0.14 / 0.11 s
· Torque (7.4 / 6.0 V): 31.0 / 37.0 kgcm

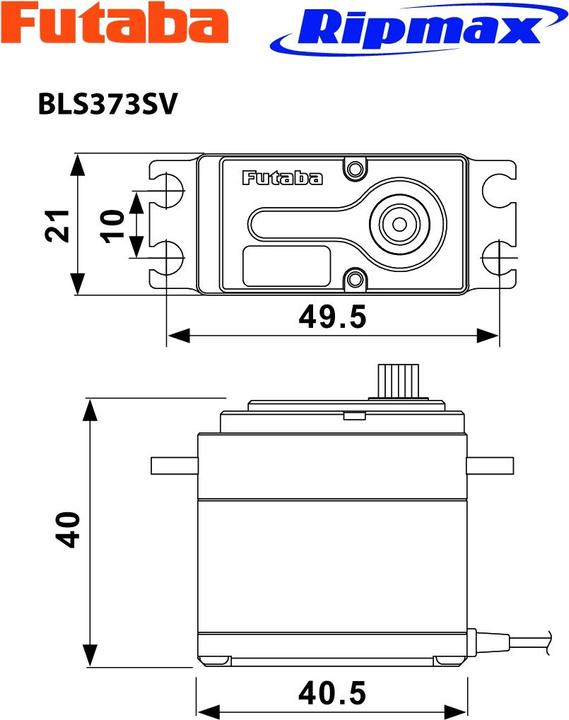

· Dimensions: 40.5 x 21.0 x 38.4 mm
· Weight: 84 g.

Key specifications

servotype
Standard servo
Servo Technology
Digital
moment of force
37 kg/cm
Servo speed
0.11 s
Item number
8605039

General information

Manufacturer
Futaba
Category
RC servos
Manufacturer no.
05102655-1
Release date
31.5.2018

RC servo properties

servotype
Standard servo
Servo Technology
Digital
moment of force
37 kg/cm
Servo speed
0.11 s
Engine type
Electric motor
Bearing type
Ball bearing

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Set: No

Product dimensions

Length
4.05 cm
Width
2.10 cm
Height
3.84 cm
Weight
85 g
