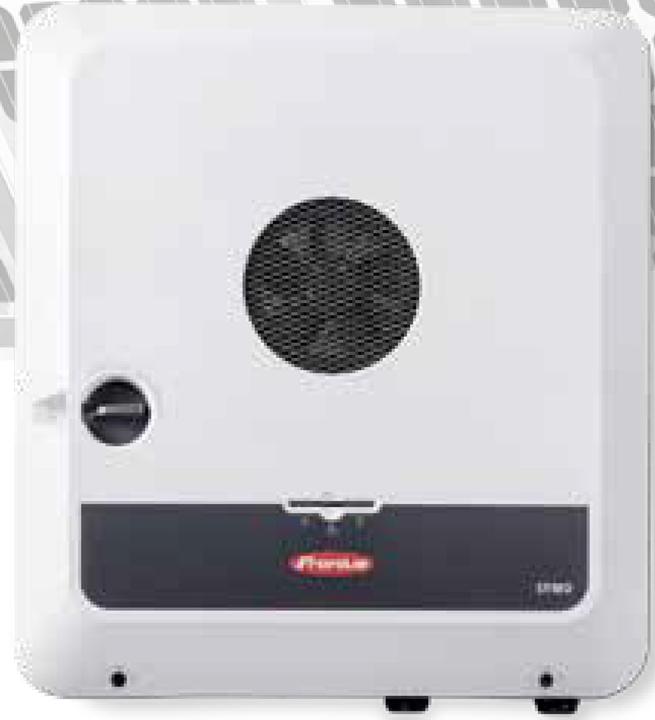

Fronius Symo GEN24 4.0

Fronius Inverter Symo GEN24 4.0

Manufacturer: Fronius
Designation: Inverter
Type: Symo GEN24 4.0
Max. Input Power DC: 4180 W
Max. Input Current DC: 12.5 A
Rated Voltage MPP: 170..800 V
Output Rated Power AC: 4000 W
Number of Independent MPPT Inputs: 2
European Efficiency: 97.2 %
With Transformer: no
Feed-in Phases: 3-phase
With Data Logger: yes
Display: none
Ethernet: yes
Wireless: yes
Built-in Battery: no
Emergency Power Capable: yes
Suitable for Outdoor Installation: yes
Protection Class (IP): IP66
Weight: 15.61 kg
Width: 530 mm
Height: 474 mm
Depth: 165 mm

Fronius Inverter Symo GEN24 4.0: additional details
The Symo GEN24 is also available as a three-phase inverter without hybrid functions, featuring an integrated basic emergency power supply (PV Point). With the Fronius Upgrade Program, battery connectivity and the full backup emergency power function can be activated. This allows the Symo GEN24 to be upgraded to the GEN24 Plus via a paid software update (by the installer) in Fronius Solar.web. This leads to maximum flexibility and future-proofing, as battery storage and emergency power functionality can be retrofitted at any time.

Additional Features:

• Standard connection to WLAN, Ethernet, energy management
• 4 digital IOs to increase self-consumption
• Multi Flow Technology - Parallel energy flows, even in emergency power situations
• Dynamic Peak Manager - Optimal yields even in shading conditions
• SuperFlex Design - Maximum freedom in PV system design
• Solar.web - Evaluation and analysis tool for greater transparency
• Variety of open interfaces for easy integration of third-party components
• Active Cooling Technology - Longevity of the inverter

Interfaces:
WLAN, 2x Ethernet LAN, 6 digital inputs/outputs + 6 digital inputs for connection to round control receivers, energy management emergency shutdown (WSD), 2x RS485 for Modbus RTU SunSpec (third-party), Fronius Smart Meter, Fronius Ohmpilot.
EAN: 9007947330611.
