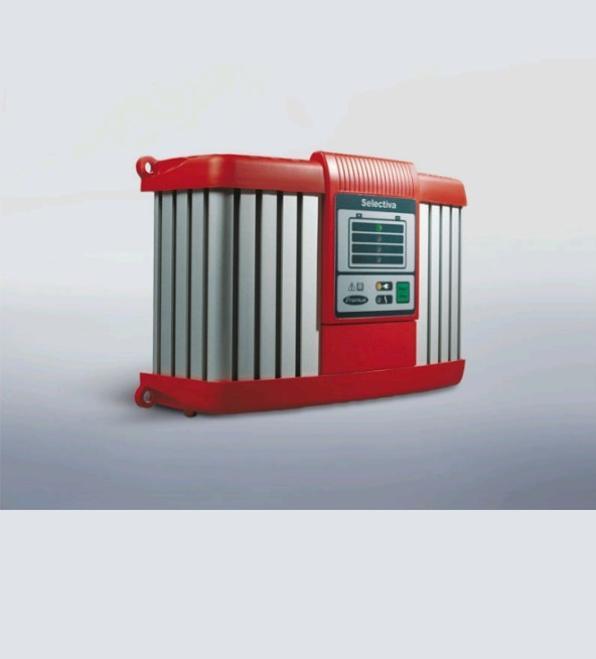

Fronius Selectiva 1030

The universal chargers of the Selectiva product family flexibly charge lead-acid batteries with different voltages and capacities. The nominal charging voltage is 12V with a charging current of 20A. Dimensions are 245 x 155 x 90 mm, and the weight is 1.9 kg. Current consumption from mains is 2A.

Product information:

• For charging small and medium-sized traction batteries
• Efficiency up to 96%
• State of charge display via LED

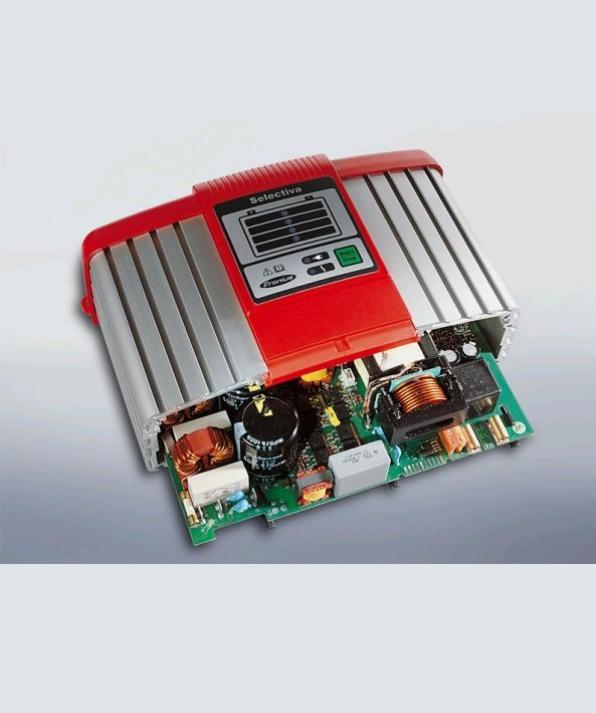

• 100% serviceable with flexible exchangeable modules for easy service and simple retrofitting and upgrading
• Compact and lightweight design
• Based on Active Inverter Technology

Applications:

• Charging: The Selectiva charges batteries fully automatically to their maximum capacity as quickly as possible. Different characteristic curves can be used to optimize the charge according to the requirements of the application.
• On-board: Due to its compact design and low weight, the Selectiva is ideally suited for on-board use.

Protective devices:

• Electronic reverse polarity protection
• Thermal overload protection
• Safety cut-off

Electronically safe Active Inverter Technology is the most intelligent form of charging. The innovative concept is based on the combination of a digital control loop, dU/dt cut-off, and an inverter with active rectification. The digital control loop maintains a constant charging current and voltage during charging. Any fluctuations in mains voltage are compensated, and the battery is charged gently. Active reaction characterizes the technology behind the dU/dt cut-off, responding to the state of charge and age of the battery while actively adjusting the programmed charging characteristic. The charge is terminated at the ideal time, when the voltage reaches its maximum. This eliminates overcharging, reducing water consumption and extending the life of the battery by up to 50%.
