Very good86/100
- Impeccable WLAN performance
- Lavish equipment
- Super handling
- Integrated NAS (1.5 GByte)
- Wi-Fi 7 without 6 GHz band
- No SSH for diagnostics
Innovative Wi-Fi 7 offers high-speed WLAN of up to 5,760 MBit/s and 1,440 MBit/s. It supports VDSL connections of up to 300 MBit/s and features integrated DECT ULE as well as Zigbee for smart home functionalities. The WLAN Mesh creates an intelligent WLAN system for your home network. The device is equipped with FRITZ!OS, which includes a media server, NAS, and MyFRITZ!. It is a WLAN router with automatic updates and an integrated modem that is compatible with all DSL connections, including major providers.
The router supports VDSL connections of up to 300 MBit/s and ADSL2+. It can also operate with fiber optics, cable modems, and mobile sticks. Connection options include 1 x 2.5 Gigabit WAN/LAN, 1 x 2.5 Gigabit LAN, and 2 x Gigabit LAN. The WLAN Mesh expands your home network by allowing you to combine multiple WLAN access points into an intelligent system.
It is compatible with WLAN standards IEEE 802.11a/g/n/ac/ax/be. The phone system supports IP-based connections, with an integrated DECT base for up to 6 cordless phones and connections for up to 2 analog phones, fax, or answering machines. It includes 5 integrated answering machines with voice-to-mail functionality.
You can manage phone book contacts locally or online through services like Google, Apple, and Telekom. Smart home features for power, heat, and light are available via DECT ULE and Zigbee. There is 1 x USB for printers and network storage (USB 2.0). FRITZ!NAS provides shared storage for all data in the home network, while the media server distributes music, images, and movies throughout the home network (DLNA/UPnP AV). It also supports online storage, internet radio, and podcasts.
Router type | DSL router |
Number of ports | 3 Ports |
Network connections | RJ11 (1x), RJ45 (2x), RJ45 2.5 Gigabit Ethernet (1x) |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Router functions | Mesh capable, VoIP base |
5 GHz transfer rate | 5760 Mbit/s |
2.4 GHz transfer rate | 1440 Mbit/s |
Item number | 46197004 |
Manufacturer | FRITZ! |
Category | Routers |
Manufacturer no. | 20003057 |
Release date | 29.5.2024 |
Sales rank in Category Routers | 78 of 2668 |
External links | |
May include power adapter | No |
Colour | Red, White |
Exact colour description | Red, White |
Router type | DSL router |
Router functions | Mesh capable, VoIP base |
Modem type | VDSL2 |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Wi-Fi frequency band | Dual band |
Wi-Fi encryption | WPA2, WPA3 |
WLAN functions | WPS (WiFi Protected Setup) |
Number of antennas | 4 x |
5 GHz transfer rate | 5760 Mbit/s |
2.4 GHz transfer rate | 1440 Mbit/s |
Mobile phone standard | WLAN only |
Max. data transfer rate | 2500 Mbit/s |
Number of ports | 3 Ports |
Network connections | RJ11 (1x), RJ45 (2x), RJ45 2.5 Gigabit Ethernet (1x) |
Max. port speed | 2500 Mbit/s |
Mesh networking type | Mesh satellite |
Mesh networking number of satellites | 1 x |
USB ports | USB-A |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Scope of delivery | FRITZ!Box 7690, power supply unit, 4 m DSL connection cable, 1.5 m LAN cable, TAE-, RJ11 adapter, installation instructions |
Length | 19.10 cm |
Width | 25.40 cm |
Height | 6.30 cm |
Weight | 657 g |
Length | 30.90 cm |
Width | 24.10 cm |
Height | 7.20 cm |
Weight | 1.06 kg |
How often does a product of this brand in the «Routers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Routers» category returned?
Source: Digitec Galaxus
All-round success - High transfer rates, Wi-Fi 7 and multiple frequency bands ensure that all Wi-Fi devices in the home network can be utilised optimally. The sophisticated software makes operation very easy.
The Fritz!Box 7690 benefits massively from the upgrade to (Pre-)Wi-Fi 7 in terms of Wi-Fi performance. As usual, its range of functions is very large and the hardware is powerful. The only area where the red pen was a little too strong was the connections.

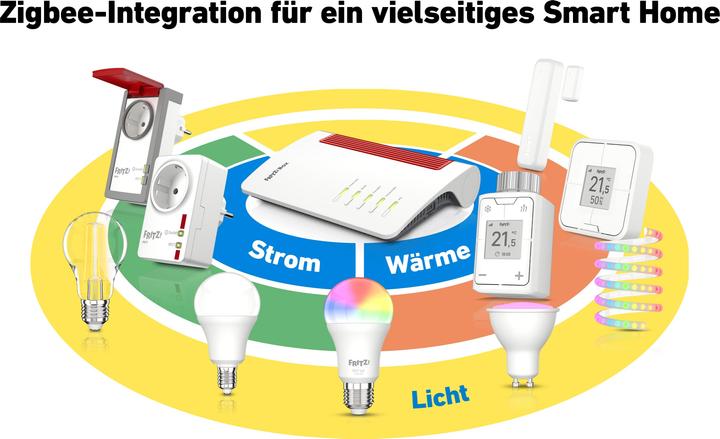

The brand new FritzBox 7690 has the new Wifi 7 on board; among other things, it provides a significant Wi-Fi speed boost. The 7690 also connects smart home devices from IKEA and Philips Hue via Zig-Bee, for example. A price tip for smaller households is the FritzBox 7530 AX (from 151 euros).
