Fractal Define R5 Titanium

ATX, mATX, Mini-ITX
24Ratings
Currently out of stock

Product details

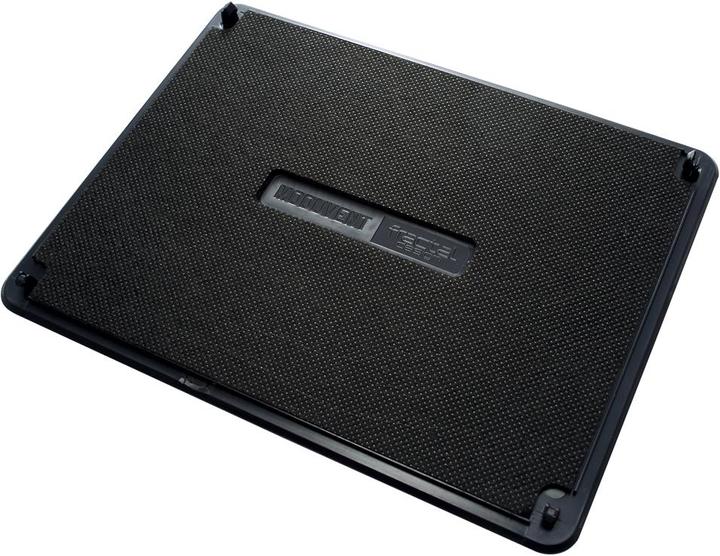

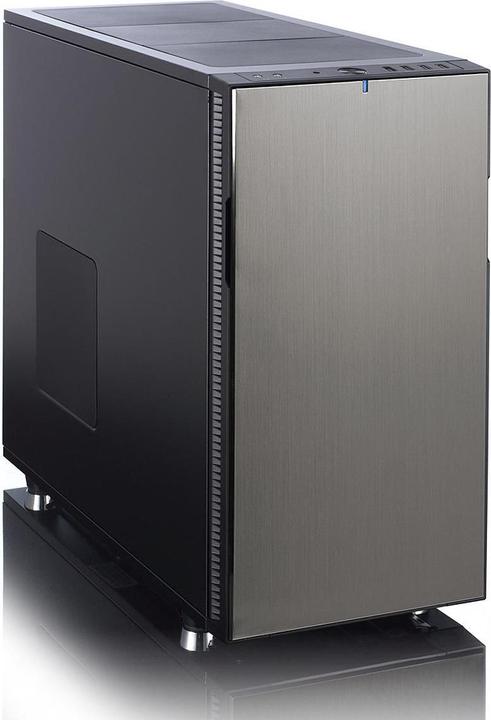

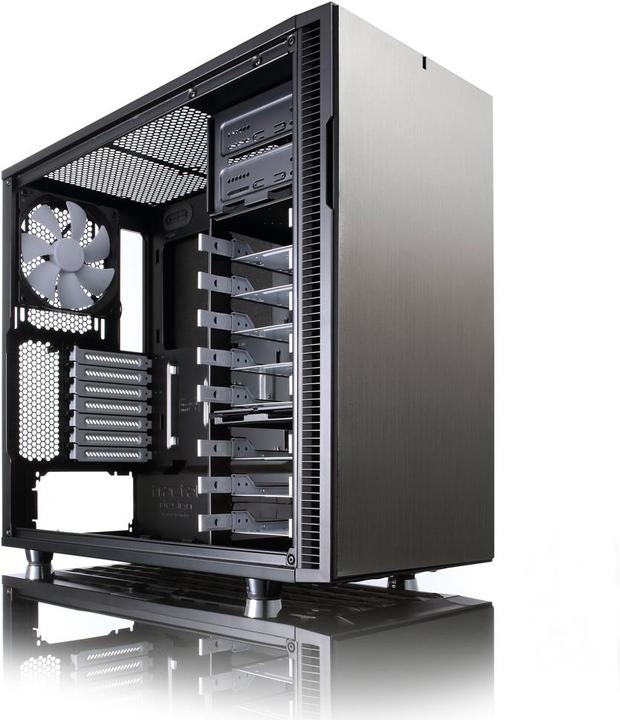

The Fractal Design Define R5 Titanium is the next evolution of the highly popular Define series. This Scandinavian-designed case is particularly quiet and offers strong, expandable ventilation as well as extensive options for liquid cooling. The Define R5 impresses with its unmatched low operating noise, thanks to strategically placed sound-absorbing material. The ModuVent fan covers and the perfectly tuned fans from the Dynamic series also contribute to this. It has space for up to 8 hard drives and can accommodate all modern graphics cards. Maximum flexibility is a top priority with the Define R5. If you want to equip the system with water cooling components or additional fans, the layout can be easily adjusted to meet your needs.

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
8 x
"Number of 5.25"" drive slots"
2 x
Max. length graphics card
440 mm
Front connectors
Headphones, Microphone, USB 2.0, USB 3.0
PC case features
Front flap, Modular HDD cage
Max. height CPU cooler
180 mm
Item number
3452136

General information

Manufacturer
Fractal
Category
PC case
Manufacturer no.
FD-CA-DEF-R5-TI
Release date
18.11.2014
External links
Manufacturer's site (de), Test report (en)

Colour

Colour
Silver
Exact colour description
Silver

PC case properties

PC case design
Midi Tower
Form factor
ATX, Micro ATX (mATX), Mini-ITX
"Number of 5.25"" drive slots"
2 x
Number of 3.5" drive slots (external)
8 x

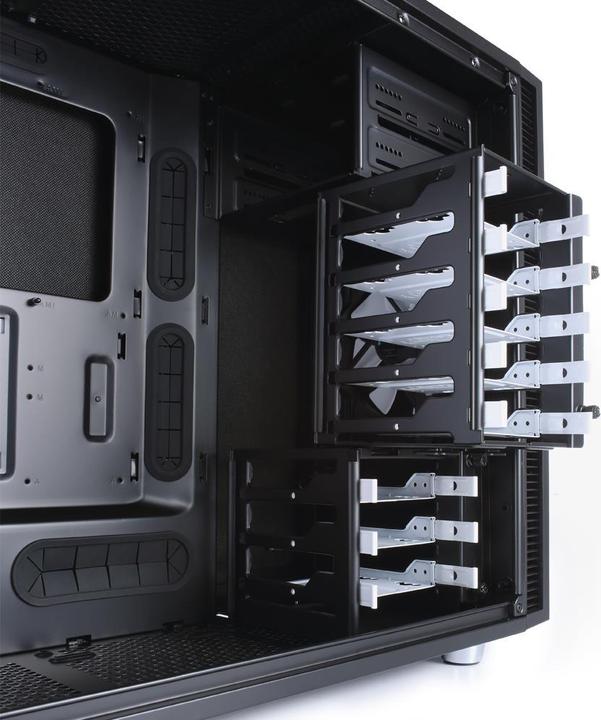

Number of 3.5" drive slots (internal)
8 x
"Number of 2.5""/3.5"" combination slots"
8 x
"Number of 2.5"" drive slots"
2 x
Number of expansion card slots
7 x
Max. length graphics card
440 mm
Max. height CPU cooler
180 mm
Max length of power supply
300 mm
PC case features
Front flap, Modular HDD cage

Connections

Front connectors
Headphones, Microphone, USB 2.0, USB 3.0

Cooling properties

Number of fans
2 x
Number of fan slots
9 x
Fan location
Aspect, Bottom side, Front side, HDD cage, Rear side, Top side
Number of radiator mounts
4
Radiator locations
Bottom side, Front side, Rear side, Top side

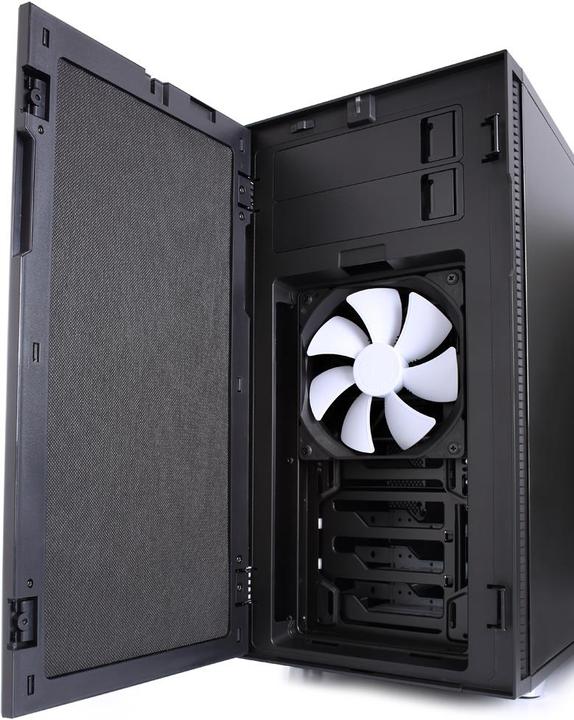

Cooling properties
Water cooling possible

Front side

Fans included
1x 140mm
Fan mount locations
2x 120mm, 2x 140mm
Radiator mount locations
1x max. 360mm

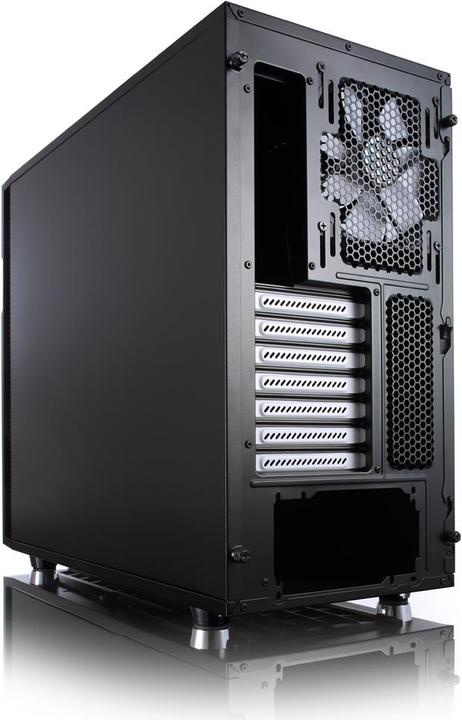

Rear side

Fans included
1x 140mm
Fan mount locations
1x 120mm, 1x 140mm
Radiator mount locations
1x max. 120/140mm

Side

Fans included
Optional fan
Fan mount locations
1x 120mm, 1x 140mm
Radiator mount locations
No mounting possible

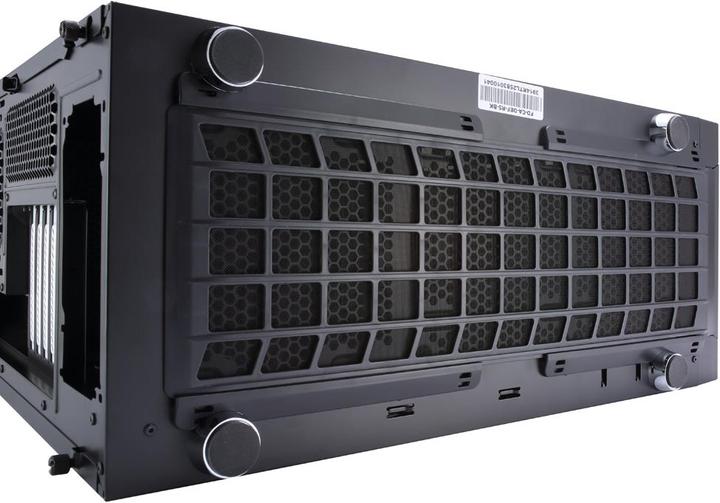

Bottom side

Fans included
Optional fan
Fan mount locations
2x 120mm, 2x 140mm
Radiator mount locations
1x max. 240mm

Top side

Fans included
Optional fan
Fan mount locations
3x 120mm, 3x 140mm
Radiator mount locations
1x max. 360/420mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
45.10 cm
Length
52.10 cm
Width
23.20 cm
Weight
11.20 kg

Package dimensions

Length
54.50 cm
Width
33.50 cm
Height
62.50 cm
Weight
12.74 kg
