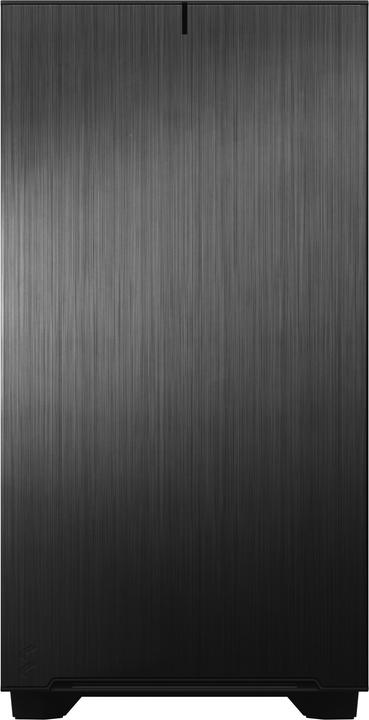

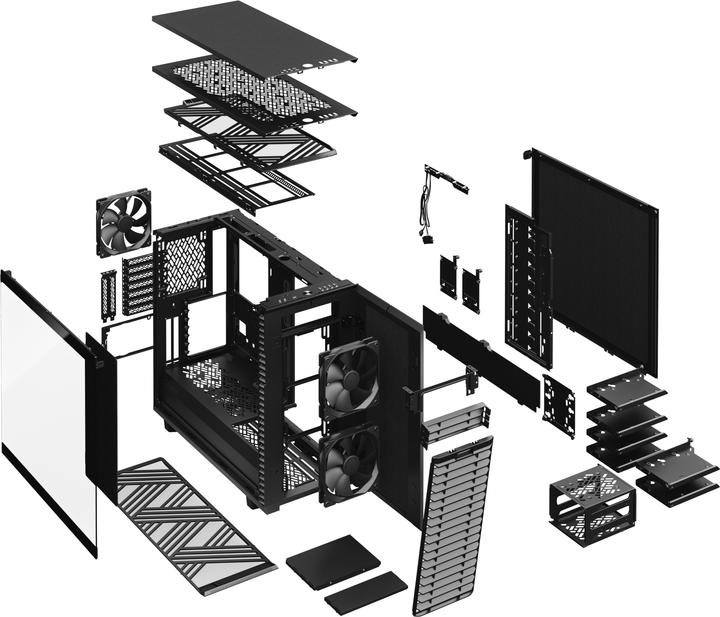

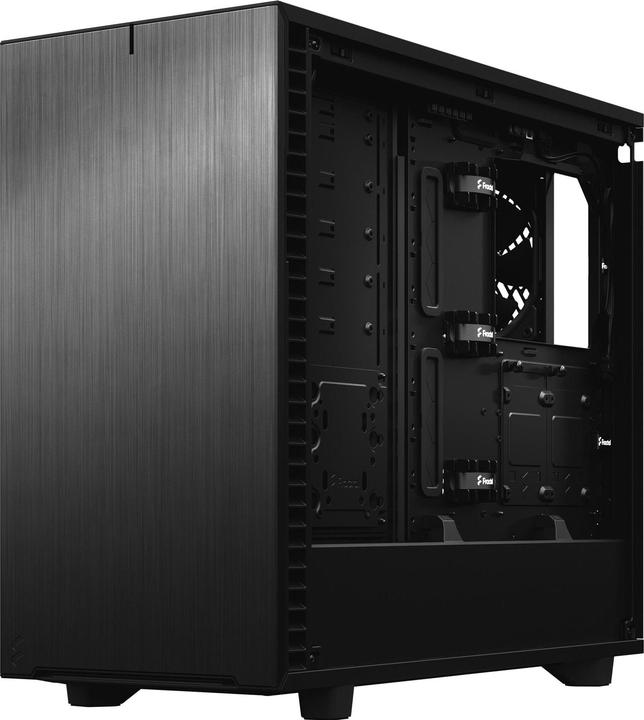

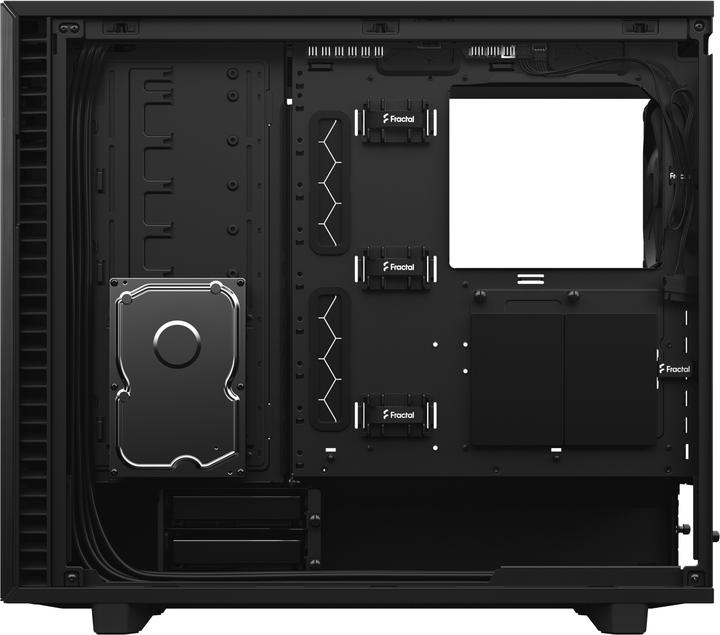

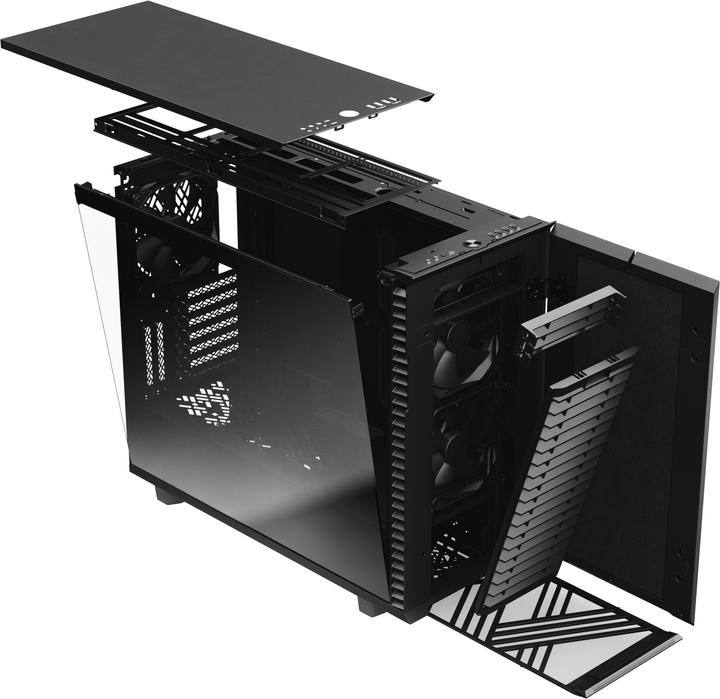

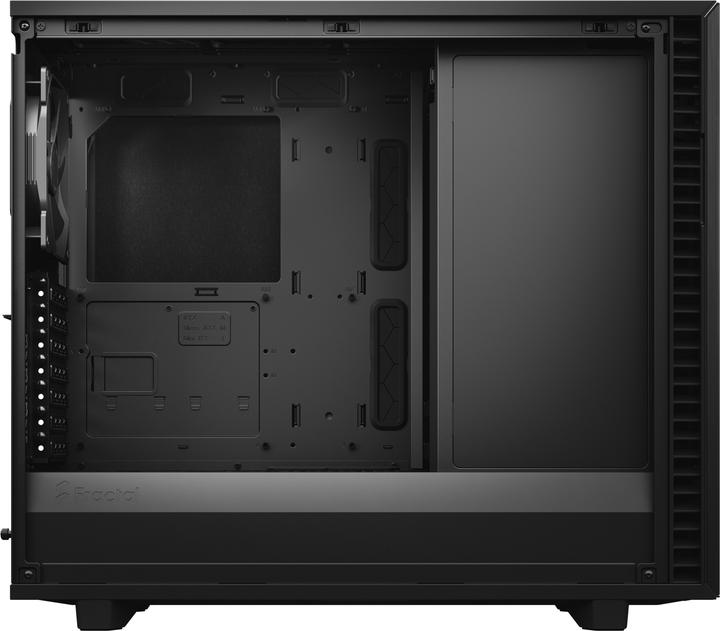

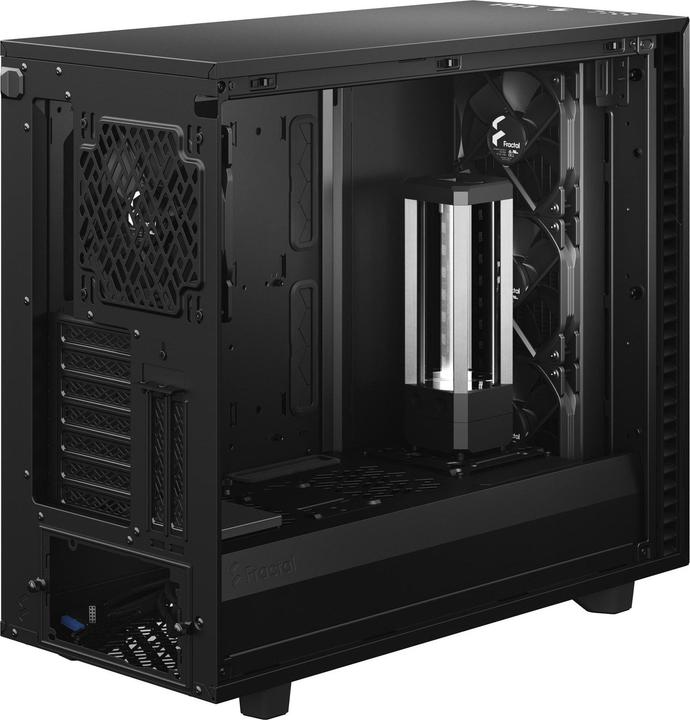

The Define 7 is the latest pinnacle of the renowned Define series and sets a new standard for what you can expect from a mid-tower case in terms of modularity, flexibility, and user-friendliness. Swap out the ventilated panel to add three filtered fan positions. Remove the entire top for unobstructed building and routing. Three pre-installed Dynamic X2 GP-14 fans can be expanded to a total of nine fans. In the standard open layout, you'll find more than enough space for your custom water cooling with large reservoirs and radiators up to 420 mm. Switch to the storage layout and install up to 14 hard drives along with four dedicated SSD mounts.
PC case design | Midi Tower |
Number of 3.5" drive slots (internal) | 14 x |
"Number of 5.25"" drive slots" | 1 x |
Max. length graphics card | 440 mm |

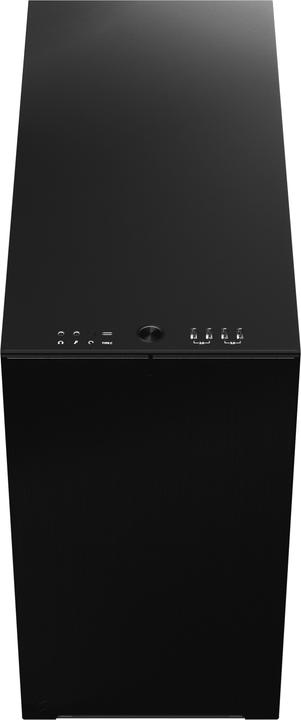

Front connectors | 1x USB 3.2 Gen2 Type-C, 2x USB 2.0, 2x USB 3.0, Audio in/out, Power button, Reset button |
PC case features | Front flap, Modular HDD cage |
Max. height CPU cooler | 185 mm |
Item number | 12757902 |
Manufacturer | Fractal |
Category | PC case |
Manufacturer no. | FD-C-DEF7A-02 |
Release date | 6.11.2021 |
External links |
Colour | Black, Silver |
Exact colour description | Black / Silver |
Material group | Metal |
Material | Aluminium, Plastic, Steel, Tempered glass |
PC case design | Midi Tower |
Form factor | ATX, E-ATX, Micro ATX (mATX), Mini-ITX |
"Number of 5.25"" drive slots" | 1 x |
Number of 3.5" drive slots (external) | 6 x |
Number of 3.5" drive slots (internal) | 14 x |
"Number of 2.5""/3.5"" combination slots" | 6 x |
"Number of 2.5"" drive slots" | 2 x |

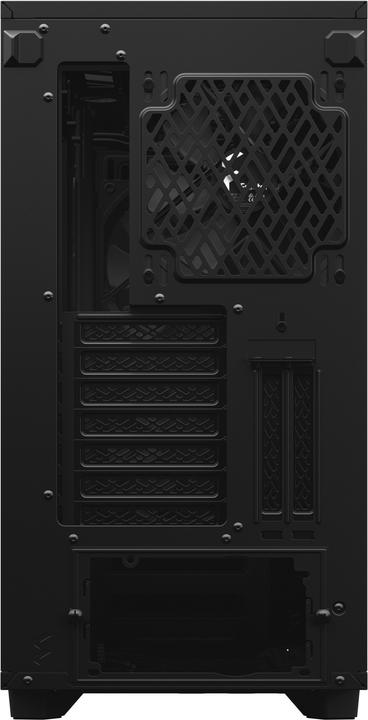

Number of expansion card slots | 7 x |
Max. length graphics card | 440 mm |
Max. height CPU cooler | 185 mm |
Max length of power supply | 300 mm |
PC case features | Front flap, Modular HDD cage |
Front connectors | 1x USB 3.2 Gen2 Type-C, 2x USB 2.0, 2x USB 3.0, Audio in/out, Power button, Reset button |
Number of fans | 3 x |
Number of fan slots | 9 x |
Fan location | Bottom side, Front side, Rear side, Top side |
Connectable fans (control) | 9 |
Number of radiator mounts | 3 |
Radiator locations | Bottom side, Front side, Rear side, Top side |
Cooling properties | Water cooling possible |
LED colour | without LED |
Fans included | 2x 140mm |
Fan mount locations | 3x 120mm, 3x 140mm |
Radiator mount locations | 1x max. 360mm |
LED colour | without LED |
Fans included | 1x 140mm |
Fan mount locations | 1x 120mm, 1x 140mm |
Radiator mount locations | 1x max. 120mm |
Fans included | Optional fan |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x max. 120/240mm |
Fans included | Optional fan |
Fan mount locations | 2x 140mm |
Radiator mount locations | 1x max. 280mm |
Fan mount locations | 1x 120mm |
Radiator mount locations | 1x max. 120mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation material |
Height | 47.50 cm |
Length | 54.70 cm |
Width | 24 cm |
Weight | 13.50 kg |
Length | 55.50 cm |
Width | 64 cm |
Height | 36 cm |
Weight | 15.95 kg |
