Fly Sky fgr4b receiver 2.4ghz
Delivered between Thu, 19.6. and Fri, 27.6.
Only 3 items in stock at supplier
Only 3 items in stock at supplier
Product details

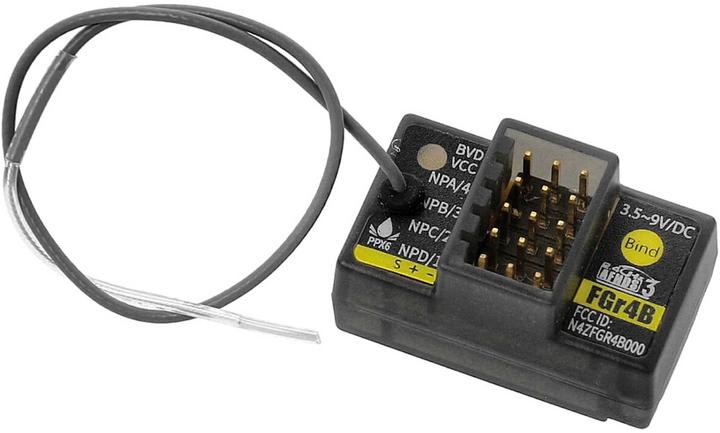

The FGr4B receiver is the ideal partner for using a Flysky remote control. It features a technology utilized by Flysky - the Automatic Frequency Hopping Digital System (AFHDS3). With a bidirectional transmission system via the antenna, this receiver is specifically designed for the installation and output of PWM/PPM/i-bus/S.BUS/i-bus2 signals. It supports all AFHDS3-capable transmitters.
Technical Specifications:
- PWM Channels: 4
- RF: 2.4 GHz
- Protocol: AFHDS 3
- Antennas: Dual
- Input Voltage: 3.5-9 V
- Output: PWM/PPM/i.BUS out/S.BUS
- Temperature Range: -10 °C to +60 °C
- Max. Humidity: 20%-95%
- Update: Yes, online
- Size: 17 x 29 x 16 mm
- Weight: 6.4 g
- Suitable for: Cars, boats, etc.
- Compatible Transmitters: all AFHDS3 transmitters and RF modules (PL18, Paladin EV, NB4, NB4 Lite, etc.) FS010.
Frequency | 2.40 GHz |
conduits | 4 |
Operating voltage | 9 V |
plug system | Other |
Item number | 23314694 |
Manufacturer | Fly Sky |
Category | RC receivers |
Manufacturer no. | FS010 |
Release date | 2.12.2022 |
Frequency | 2.40 GHz |
conduits | 4 |
Operating voltage | 9 V |
plug system | Other |
CO₂-Emission | |
Climate contribution |
Length | 1.70 cm |
Width | 2.90 cm |
Height | 1.60 cm |
Weight | 6.40 g |
Length | 8.50 cm |
Width | 6.70 cm |
Height | 3.30 cm |
Weight | 60 g |
Specifications may include unverified machine translations.
