Product details

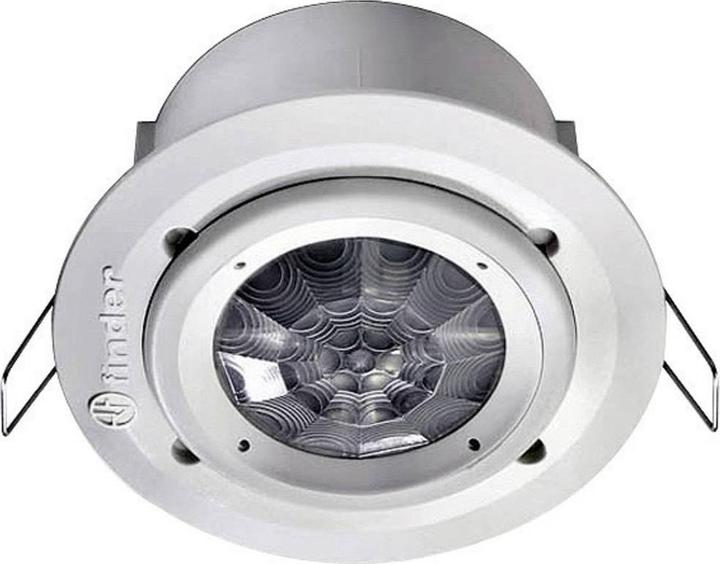

The Finder UP motion detector is a reliable solution for the automatic control of indoor lighting. With an optimal installation height of 2.8 meters and a detection field of up to 8 meters in diameter, this passive infrared sensor offers comprehensive coverage. The motion detector is designed for flush mounting and is ideal for suspended ceilings. It can control a variety of lamp loads, including incandescent and halogen lamps as well as energy-saving LED and fluorescent lamps. The response brightness and sensitivity are individually adjustable, allowing for flexible adaptation to different lighting conditions. With a scanning angle of 360 degrees, the motion detector ensures thorough monitoring of the room and helps save energy by activating the light only when needed.
- Maximum range of 8 meters with a 360-degree detection field
- Adjustable response brightness and sensitivity for individual customization
- Suitable for various lamp types, including LED and energy-saving lamps
- Flush mounting for discreet installation
- Protection class IP40, suitable for indoor use.
type of sensor | PIR |
mounting style | Flush-mounted |
Motion sensor type | Motion sensor |
Exact colour description | RAL number (similar) :9010 |
coverage angles | 360° |
Range | 8 m |
Item number | 20025067 |
Manufacturer | Finder |
Category | Motion sensors |
Manufacturer no. | 183182300000 |
Release date | 3.5.2021 |
External links |
Colour | White |
Exact colour description | RAL number (similar) :9010 |
Material group | Plastic |
Material | Thermoplastic resin |
Motion sensor type | Motion sensor |
Application range | Indoor |
type of sensor | PIR |
coverage angles | 360° |
Range | 8 m |
Protection type (IP code) | IP40 |
mounting style | Flush-mounted |
Power supply | Electrical connection |
Output voltage | 230 V |
Power consumption | 1000 W |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Control type | Remote control |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 230V, Ceiling mount. 18.31.8.230.0000, Motion detector UP |

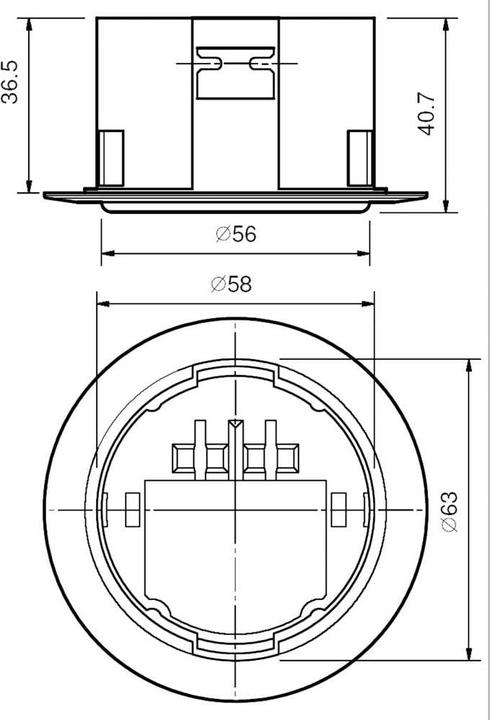

Length | 4.09 cm |
Width | 8 cm |
Height | 4.09 cm |
Length | 12 cm |
Width | 9 cm |
Height | 5 cm |
Weight | 100 g |
