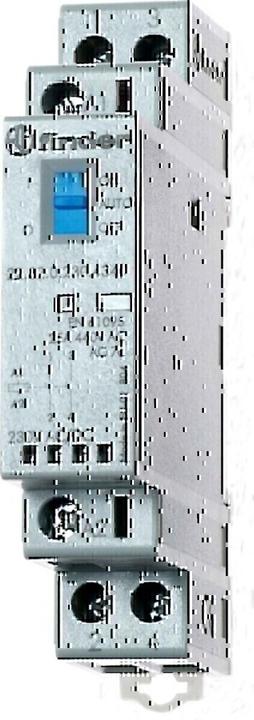

Finder Installation contactor 230VAC/DC,2S,LED 22.32.0.230.4340

Finder installation contactor 22.32.0.230.4340
Manufacturer: Finder
Designation: Installation contactor 230VAC/DC, 2S, LED
Type: 22.32.0.230.4340
Rated operating voltage: 250-440 V
Rated operating current: 25 A
Utilization category: 1
Rated operating voltage: 230 V
Voltage type of operating voltage: AC
Voltage type of operating voltage: AC/DC
Number of contacts as make contacts: 2
Max. incandescent lamp load: 2000 W
Max. fluorescent lamp load: 800 VA
Max. fluorescent lamp load (duo circuit): 800 VA
Max. fluorescent lamp load (parallel compensated): 800 VA
Fluorescent lamp load (parallel compensated): 500 VA
Slider for manual switching: Yes
Width in pitch units: 1
Installation depth: 60.8 mm
Additional devices possible: Yes
Protection class (IP): IP20

Installation contactor for 35 mm rail, 2 NO contacts for 25 A / 250 V AC, contact material AgSnO², max. switching capacities at 230 V AC: AC1 6250 VA, AC15 1800 VA, 1-phase motor load, AC3 (230 V AC) 1 kW, rated current AC AC-7c 10 A, incandescent and halogen lamps 2000 W, compact fluorescent lamp (energy-saving lamp) 200 W, fluorescent lamp with ECG 800 W, fluorescent lamp with CCG 500 W, LED (230 V AC) 200 W, LV halogen lamps or LED with ECG 200 W, LV halogen lamps or LED with CCG 800 W. Coil: 230 V AC/DC, width 17.5 mm, with On-Auto-Off switch, LED and mechanical switch position indicator, relay protection class: IP 20.
