Housing design: cylindrical
Thread size: M8 x 1
Output type: PNP normally open
Sensing range: 2.5 mm
Connection type: M8 - 3-pole
Supply voltage: 10 to 30 V dc
Length: 45 mm
DC voltage max: 30 V
Mounting type: non-flush
Switching current: 200 mA
Housing material: PBT, stainless steel
Shielding: unshielded

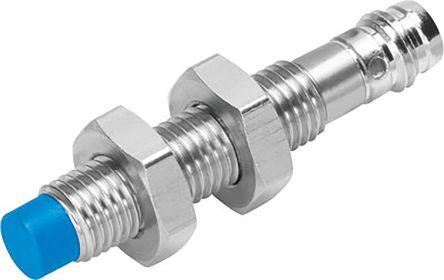

SIEN series inductive proximity sensors. Festo SIEN inductive proximity sensors in round design for detecting metallic items within a short range of the sensor. Inductive sensors are not affected by oil, dirt, or surface conditions and can be used in areas requiring high shock and vibration resistance. Features and benefits include PNP output, installation with flush mounting, availability with electrical connections by fork or plug, sizes M5 or M8 available, and standard switching distance.
Item number | 9869502 |
Manufacturer | Festo |
Category | Home automation |
Manufacturer no. | SIEN-M8NB-PS-S-L |
Release date | 8.10.2018 |
Automation type | Sensor |
Range | 0 m |
Electric current output | 0.20 A |
Power supply | Electrical connection |
CO₂-Emission | |
Climate contribution |
Length | 45 mm |
