Festo Pressure Transmitter

Operating pressure min.: -1 bar
Operating pressure max.: 0 bar
Pressure type: Relative pressure
Suitable media: Compressed air
Connection: Plug-in mounting, 6 mm
Type: Pressure transmitter
Rated voltage: 18 to 30V DC
Connection thread size: 6 mm
Manufacturer series: SPTE
Operating temperature min.: 0°C
Operating temperature max.: +50°C
IP protection class: IP40
Output type: Analogue output

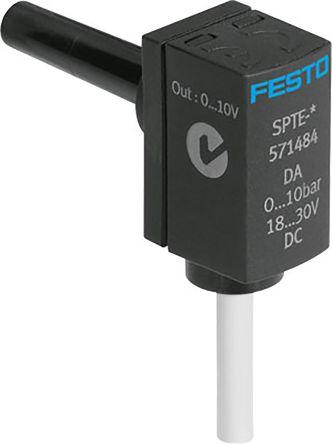

Pressure sensors, SPTE series, Festo. The SPTE series pressure transmitter from Festo is designed for simple and fast pressure monitoring. The intelligent fitting provides instant information on the current pressure and is effective for object detection via back pressure, as well as for pressure, regulator, and vacuum detection. Features and benefits include fast switching point adjustment at the touch of a button, analogue output, and LED switching status display.
