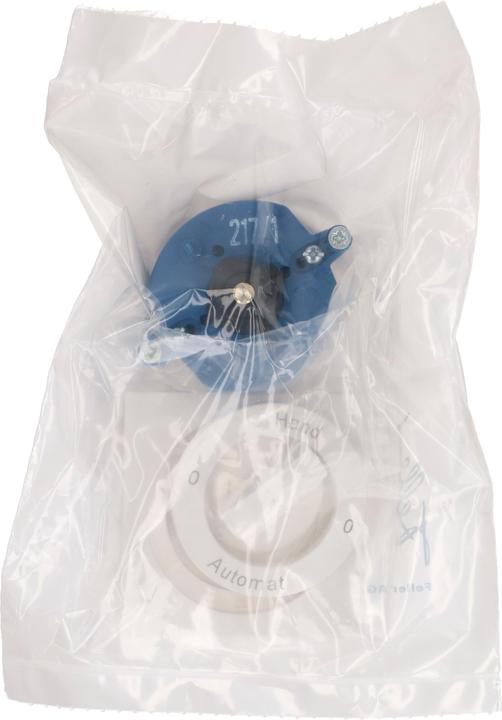

Feller EdizioDue rotary switch
Only 2 pieces in stock
Product details
Rotary switch scheme 2/1-pole, type: insert with front plate, current: 16A, voltage: 240-400V, LED load max.: 200W, additional function: switching position 0-hand-0-automatic, changeover switch, installation depth: 31mm, colour: white, IP protection rating: IP20, EdizioDue. EDIZIOdue is much more than an attractive range of light switches and sockets. For the majority of the system solutions, it is also an overarching design philosophy for all functions. EDIZIOdue utilises the tried and tested Feller apparatus technology. The colour-neutral functional insert serves as the basis, allowing for modular flush-mounted, surface-mounted and recessed designs. Subsequent colour changes can be made quickly, as EDIZIOdue covers can be easily replaced when the appliance is connected.
Colour | White |
Switch + button type | Rotary switches |
Mounting type | Flush-mounted |
Width | 60 mm |
Item number | 52945268 |
Manufacturer | Feller |
Category | Buttons + Switches |
Manufacturer no. | 7411-2.F.055.61 |
Release date | 13.11.2024 |
Colour | White |
Exact colour description | White (matt) |
Material group | Plastic |
Material | Thermoplastic resin |
Switch + button type | Rotary switches |
Operating mode | Rotary knob |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
LED lighting | without LED |
Number of poles | 1x |
Nominal voltage | 400 V |
Nominal current | 16 A |
Max. Switching capacity | 200 W |
Protection type (IP code) | IP20 |
CO₂ emissions | 28.94 kg |
Climate contribution | CHF 0.69 |
Items per sales unit | 1 pcs. |
Length | 60 mm |
Width | 60 mm |
Height | 49 mm |
Length | 13.70 cm |
Width | 12.90 cm |
Height | 4.90 cm |
Weight | 77 g |
