Exsys PCI-EXPRESS Dual Ethernet Card 2xG. 2xGigabit Ports,LP Bracket,with PoE

RJ45
Ratings
BrandMore from Exsys
Delivered between Mon, 2.6. and Tue, 3.6.
Only 3 items in stock at third-party supplier
Supplied by

Product details

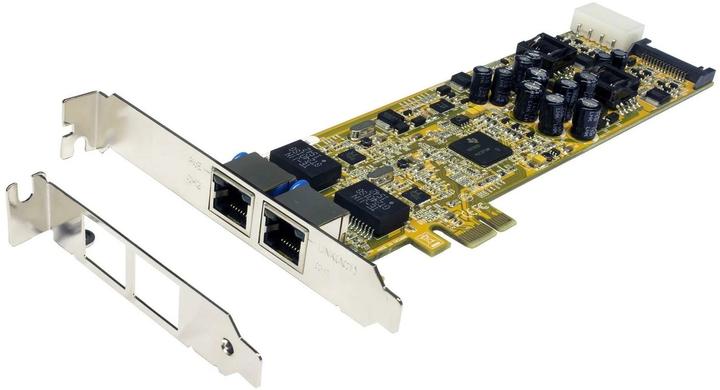

The EX-6072PoE-2 is a fast dual Gigabit Ethernet card designed for the PCIe bus. It supports Power over Ethernet and has a data transfer rate of up to 1000 Mbps per port. The EX-6072PoE-2 supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000 Mbps). Additionally, the card is equipped with Auto-MDI/MDI-X. It also offers extensive support for various operating systems. Any PoE-capable devices can be connected to the EX-6072PoE-2. A low-profile bracket is included with the card to facilitate installation in a slim PC case.

Supports 10/100/1000 Base-T Ethernet standard. Fully compatible with IEEE 802.3af PoE (PSE) Type 1 = 15.40 W and IEEE 802.3af PoE+ (PSE) Type 2 = 34.20 W. Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W. Supports Auto-MDI/MDI-X Auto (for crossover cables). Supports jumbo frames up to 9 KBytes. Supports pair swap/polarity/skew correction. Wake-on-LAN and remote wake-up. Supports full duplex flow control (IEEE 802.3x). Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 priority encoding. Microsoft NDIS 5 checksum offload (IP, TCP, UDP), supports PCI message signaled interrupt (MSI). 48 KB buffer transmit/receiver chip. LED indicator for data transmission. Chipset: 2x Realtek RTL8111G.

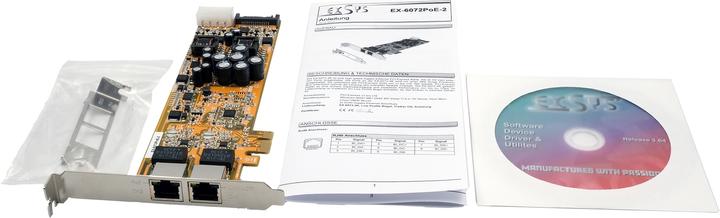

Package includes: EX-6072PoE-2, low profile bracket, driver CD, manual.

Key specifications

Max. port speed
1000 Mbit/s
Network adapter type
Ethernet adapter
Documents
Technical data sheet.pdf
Item number
21926172

General information

Manufacturer
Exsys
Category
Network cards
Manufacturer no.
EX-6072POE-2
Release date
6.6.2022

Colour

Colour
Silver
Exact colour description
Silver, Yellow

Network card properties

Hardware interface
RJ45
Max. port speed
1000 Mbit/s
Network adapter type
Ethernet adapter
Number of ports
2 x

Network connections

Connections
Ethernet

Wi-Fi standard

Wi-Fi standard
802.11i

Mobile internet properties

Max. data transfer rate
1000 Mbit/s

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Driver CD, Low profile temples, Manual

Product dimensions

Length
68 mm
Width
195 mm
Height
30 mm
Weight
190 g

Package dimensions

Length
22.30 cm
Width
15.50 cm
Height
3.20 cm
Weight
187 g
