Exsys PCI Express card EX-44342

Ratings
BrandMore from Exsys
Delivered between Tue, 7.4. and Wed, 8.4.
Only 3 pieces in stock at supplier
free shipping

Product details

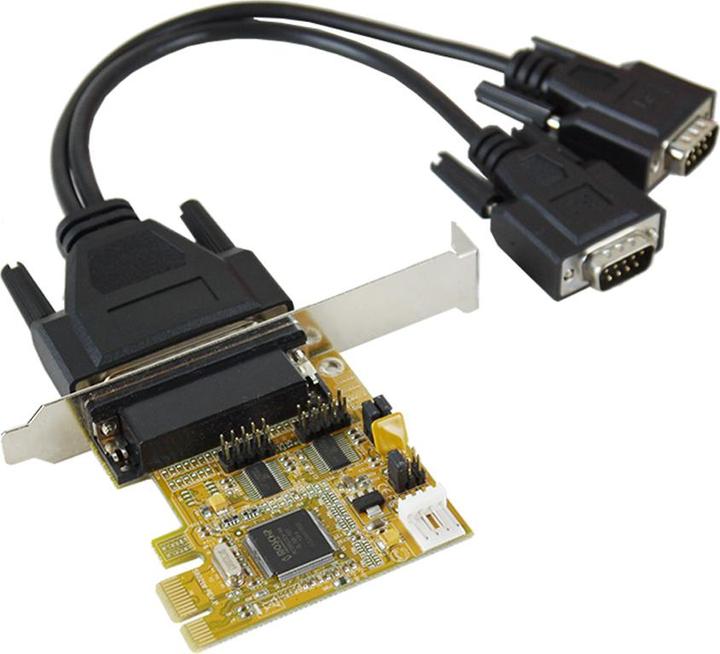

The EX-44342 PCI-Express I/O card provides two serial RS-232 High Performance UART 16C550 outputs. It is designed to expand two additional serial ports for PCs, workstations, or servers via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and has no conflicts with IRQ and I/O addresses. Additionally, +5V or +12V can be configured on pin 9 of the serial connector for a POS system (Power over System). The EX-44342 comes with a low-profile bracket, allowing the card to be installed in a slim PC case of 8 cm.

Interface: RS-232 V.24 / FIFO Buffer: 16C550 with 16 bytes
±15 kV IEC1000-4-2 ESD protection for RS232 I/Os
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
PCIe interface compatible with specifications 1.0a to 3.0
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports hardware and software flow control
Supports +5V or +12V on pin 9 of the serial connectors

Package contents:
EX-44342, octopus cable, driver CD, low-profile bracket, manual.

Key specifications

Expansion card form factor
Full Profile, Low profile
Data ports
RS-232 (2x)
Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)
Documents
Technical data sheet.pdf, Manual.pdf

General information

Item number
13170506
Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-44342
Release date
1.3.2016

Controller properties

Expansion card form factor
Full Profile, Low profile

Peripheral port

Data ports
RS-232 (2x)

Internal interfaces

Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
435.56 kg
Climate contribution
CHF 3.24

Product dimensions

Weight
380 g
Width
66 mm
