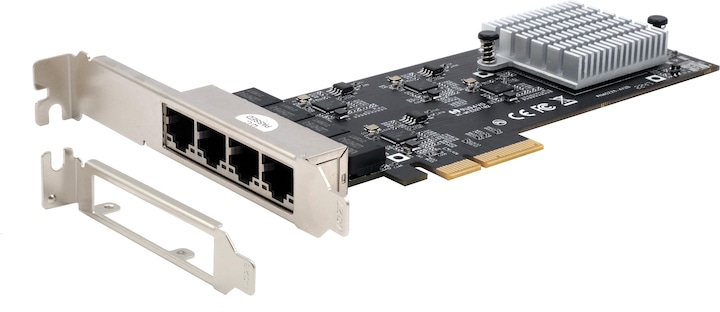

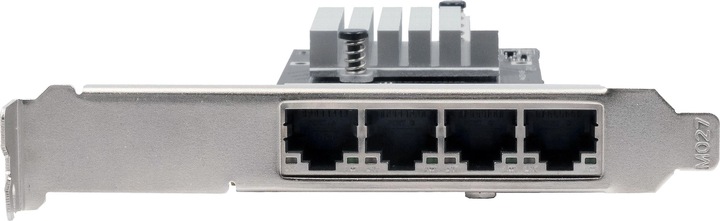

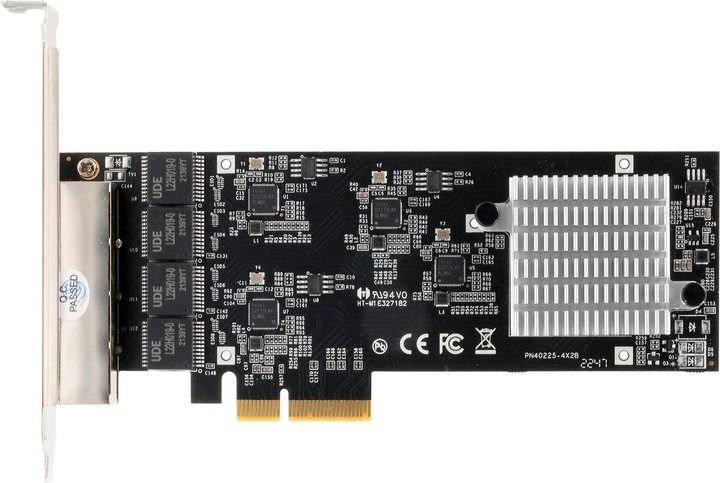

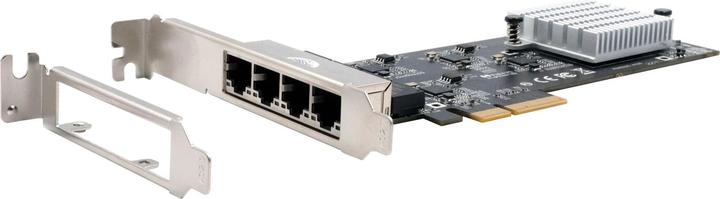

Exsys PCI-E Card Ethernet 4x 2.5 Gbit/s (Intel)

PCI-E x4
Ratings
BrandMore from Exsys
Delivered between Tue, 7.4. and Fri, 10.4.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

The EX-60115 is a 2.5 Gigabit Ethernet card with four RJ45 ports for the PCIe bus. It supports half and full duplex as well as auto-negotiation for automatic adaptation to the network speed (10/100/1000/2500 Mbit/s). Thanks to PCI-Express x4 with four lanes, sufficient bandwidth is available to provide the full performance of 2.5 Gbit/s on all four Ethernet ports simultaneously.

Supports 10/100/1000/2500 Base-T Ethernet standard
Supports 4-lane 2.5/5Gbps PCI Express bus
Fully compatible with PCI Express 3.1
Supports jumbo frames up to 9KBytes
Automatic cross-over detection (MDI/ MDI-X)
Supports Preboot eXecution Environment (PXE)
Supports Legacy and Message Signal Interrupt (MSI/MSI-X)
IEEE 802.3 auto-negotiator - Automatic link configuration for speed duplex and flow control
Time-stamping and synchronization of time sensitive applications.
Scalable I/O for Linux environments (IPv4, IPv6,TCP/UDP)
IEEE 802.3az - Energy Efficient Ethernet (EEE)
Active State Power Management (ASPM)
MAC Power Management controls
Full wake up support (APM/ACPI)
Latency Tolerance Reporting (LTR)
LED indicators for activity and data transfer mode
Chipset: 4x Intel I225-V

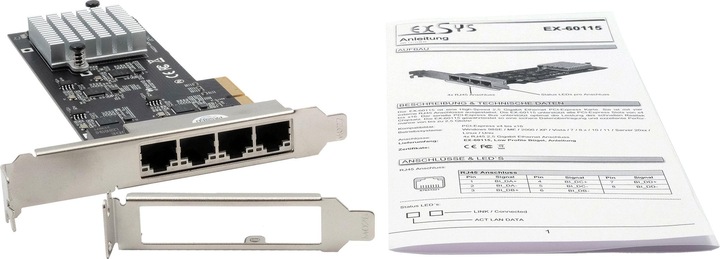

Scope of delivery
EX-60115, low profile bracket, manual.

Key specifications

Max. port speed
2500 Mbit/s
Network adapter type
Ethernet adapter
Documents
Technical data sheet.pdf

General information

Item number
43661295
Manufacturer
Exsys
Category
Network cards
Manufacturer no.
EX-60115
Release date
17.1.2024

Network card properties

Hardware interface
PCI Express x4
Max. port speed
2500 Mbit/s
Network adapter type
Ethernet adapter
Number of ports
4x

Network connections

Network connections
RJ45 (4x)

Mobile internet properties

Max. data transfer rate
2.50 Gbit/s

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
12.58 kg
Climate contribution
CHF 0.30

Scope of delivery

Scope of delivery
EX-60115, Low profile temples, Manual, Manual

Product dimensions

Length
245 mm
Width
170 mm
Height
30 mm

Package dimensions

Length
25 cm
Width
17.80 cm
Height
3 cm
Weight
190 g
