Exsys GmbH PCIe 8S Serial RS-232 Card, Octopus Cable (EXAR/MaxLinear)

Ratings
BrandMore from Exsys
Delivered between Tue, 7.4. and Wed, 8.4.
Only 4 pieces in stock at supplier
free shipping

Product details

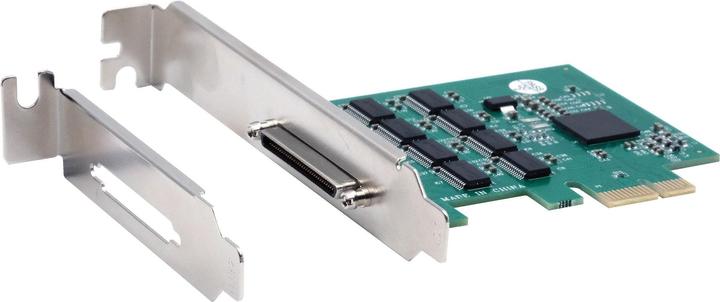

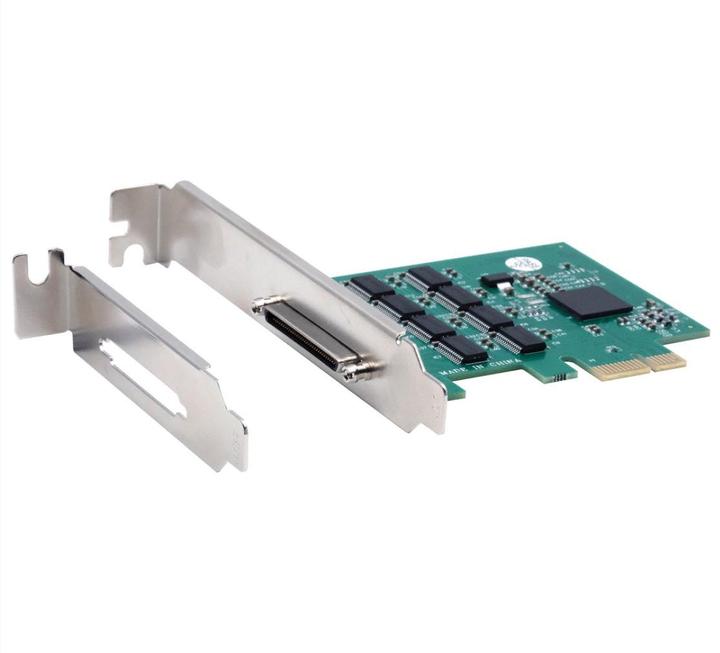

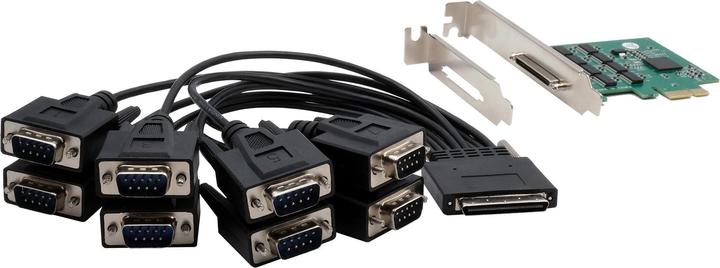

The EX-46028 PCIe I/O card provides eight serial RS-232 High Performance UART 16C550 outputs. It is designed to expand eight additional serial ports for PCs, workstations, or servers via the PCIe bus. The eight 9-pin connectors are linked through an octopus cable, requiring only the space of a single slot bracket. The EX-46028 comes with a low profile bracket for slim computer cases up to 8 cm in height.

RS-232 V.24 interface
FIFO Buffer 16C550 with 256 bytes
I/O addresses and interrupts are assigned by the operating system
PCIe interface compatible with 2.0 Gen1 specifications
Data bits 5, 6, 7, and 8
Stop bits 1, 1.5, and 2
Parity: none, even, odd, space, and mark
RS-232 signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports RTS/CTS and XON/XOFF flow control

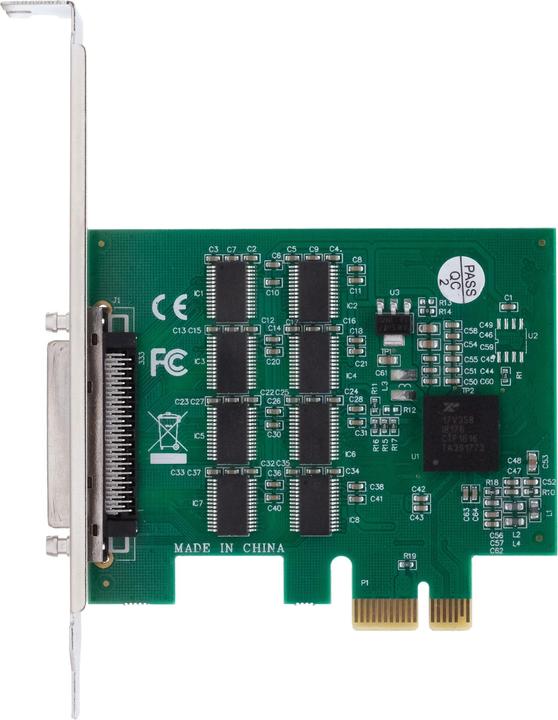

Chipset: EXAR/MaxLinear 17V358

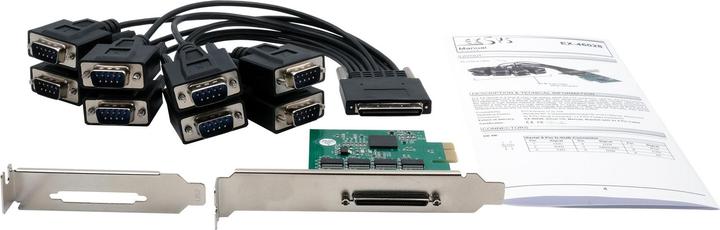

Package contents:
EX-46028, octopus cable, low profile bracket, manual.

Key specifications

Expansion card form factor
Low profile
Data ports
RS-232 (8x)
Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)
Documents
Technical data sheet.pdf, Manual.pdf

General information

Item number
23355459
Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-46028
Release date
19.9.2022

Controller properties

Expansion card form factor
Low profile

Peripheral port

Data ports
RS-232 (8x)

Internal interfaces

Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
187.3 kg
Climate contribution
CHF 4.46

Product dimensions

Weight
460 g
Width
80 mm

Package dimensions

Length
24.90 cm
Width
17.20 cm
Height
6.10 cm
Weight
520 g
