Exsys GmbH 4S PCIe Serial RS-232 incl. LP bracket, FTDI

Ratings
BrandMore from Exsys
Delivered between Fri, 10.4. and Sat, 11.4.
Only 2 pieces in stock at supplier
free shipping

Product details

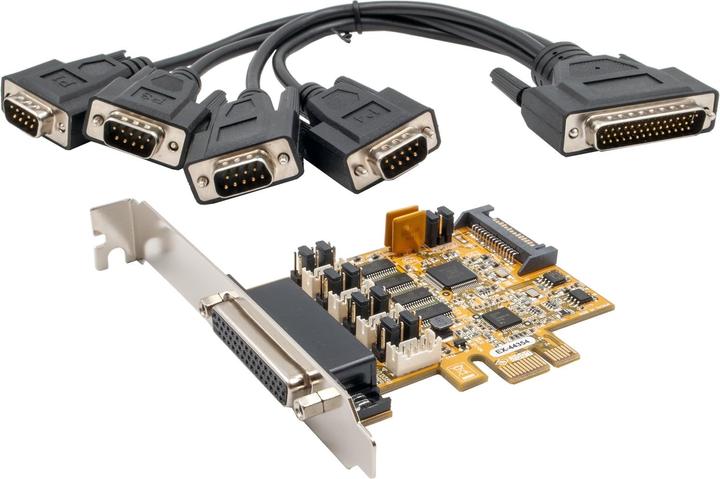

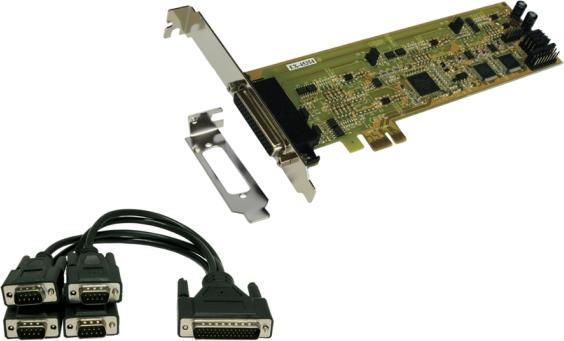

The EX-44354 PCIe I/O card provides four serial RS-232 high-performance UART 16C550 outputs. It is designed to expand four additional serial ports for PCs, workstations, or servers via the PCIe bus. +5V and +12V can be configured on pin 9 of the serial connector as a POS system (Power over System). The card is fully plug-and-play compatible. The EX-44354 comes with a low-profile bracket for installation in narrow computer cases up to 8 cm in height.

Interface: RS-232 V.24
±15kV IEC1000-4-2 ESD protection for RS232 I/Os
FIFO buffer 16C550 with 16 bytes
Full x1 PCI Express throughput, 250 Mbytes/sec
Fully compliant with PCIe base specifications, Revision 1.0a
I/O addresses and interrupts are assigned by the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, and mark
Signals: RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Chipset: FTDI

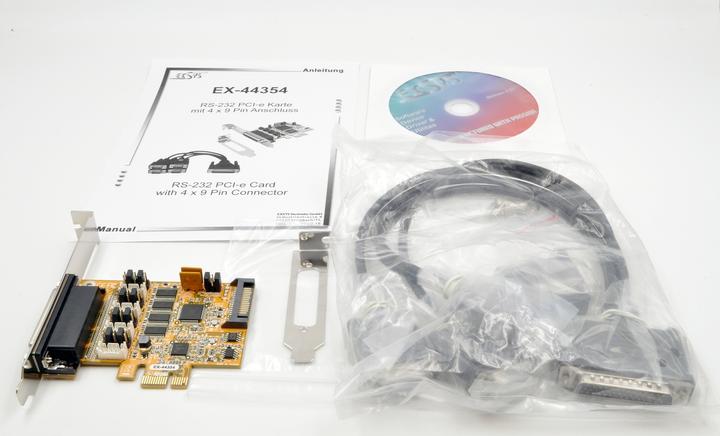

Package includes:
EX-44354, octopus cable, driver CD, low-profile bracket, manual.

Key specifications

Expansion card form factor
Low profile
Data ports
RS-232 (1x)
Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)
Documents
Technical data sheet.pdf, Manual.pdf

General information

Item number
23214765
Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-44354
Release date
2.3.2020

Controller properties

Expansion card form factor
Low profile

Peripheral port

Data ports
RS-232 (1x)

Internal interfaces

Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
91.85 kg
Climate contribution
CHF 2.18

Product dimensions

Width
100 mm
Length
245 mm
