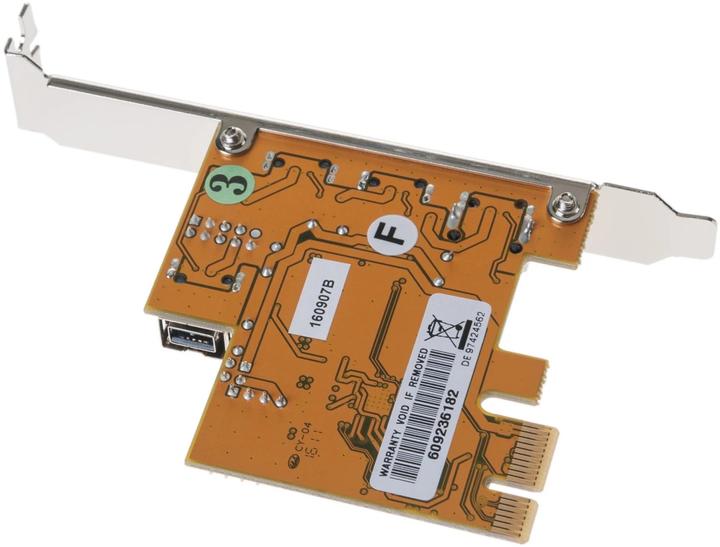

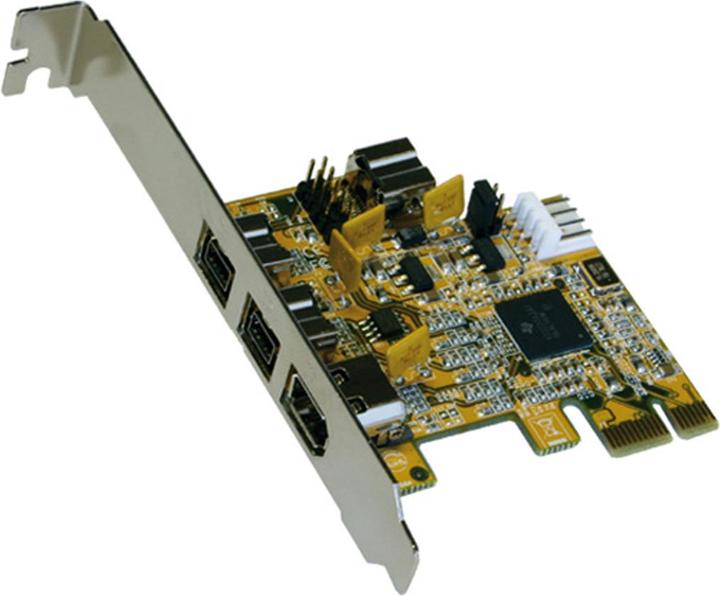

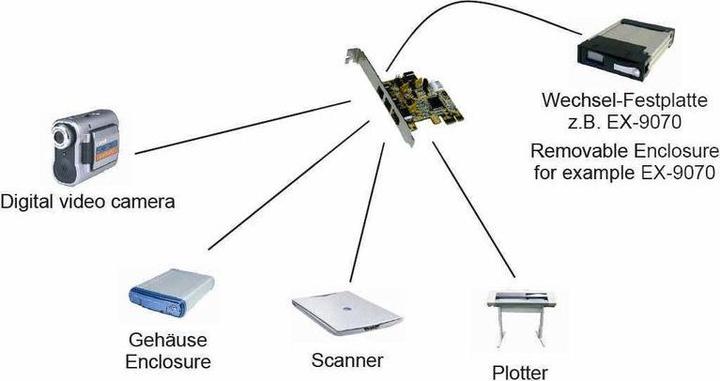

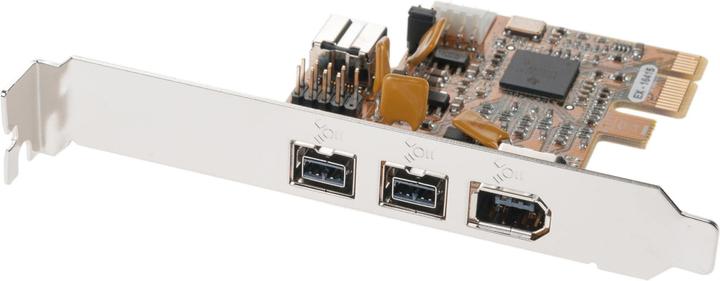

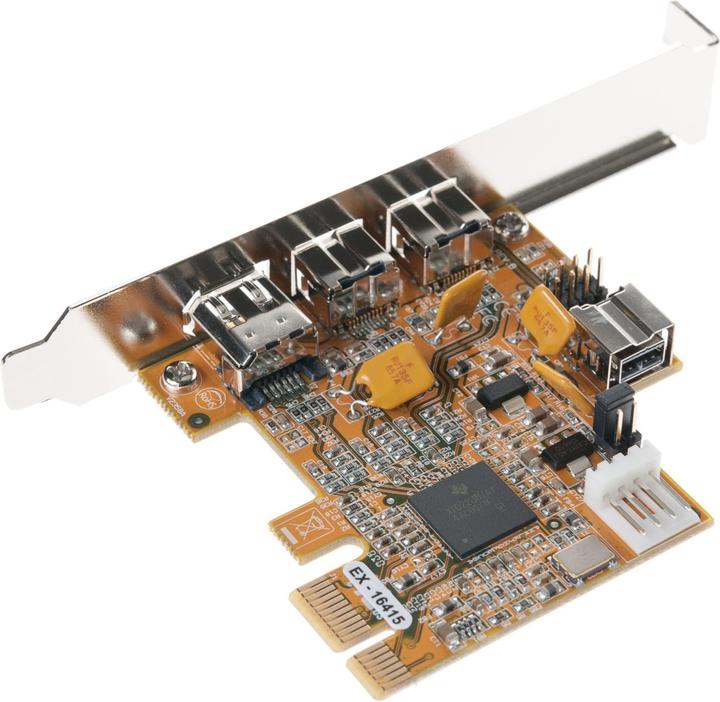

The PCI-Express FireWire 1394B (FireWire 800) card offers two external and one internal FireWire 1394B port, as well as an external 6-pin FireWire 1394A port. It is designed to expand PCs, small workstations, or servers with three additional FireWire 1394B and one FireWire 1394A high-speed port via the PCI Express bus, allowing for the connection of FireWire 800 IEEE 1394B and FireWire 400 1394A devices such as digital camcorders or high-resolution color printers. The EX-16415 provides a fast I/O solution that enables users to connect high-speed peripherals. A low-profile bracket for slim computer cases up to 8 cm in height is included with the EX-16415.
Supports up to 63 devices.
PCI Express interface compatible with the 1.0a specification.
"Hot swapping": Devices can be plugged in and removed without turning off the computer.
Can be installed in addition to the FireWire ports on the motherboard.
Supports PC and Apple Power MAC systems.
Chipset: Texas Instrument XIO2213.
Expansion card form factor | Low profile |
Data ports | FireWire 400 (1x), FireWire 800 (2x) |
Internal connection options | FireWire 800 (2x) |
Expansion slot | PCI Express x1 (1x) |
Documents | |
Item number | 223941 |
Manufacturer | Exsys |
Category | Controller cards |
Manufacturer no. | EX-16415 |
Release date | 22.6.2009 |
Expansion card form factor | Low profile |
Data ports | FireWire 400 (1x), FireWire 800 (2x) |
Internal connection options | FireWire 800 (2x) |
Expansion slot | PCI Express x1 (1x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Weight | 67 g |
Width | 250 mm |
Length | 65 mm |
Length | 22.30 cm |
Width | 15.20 cm |
Height | 3 cm |
Weight | 100 g |
