Exsys EX-11057, USB 2.0 PCI Express Card

Ratings
BrandMore from Exsys
Delivered between Wed, 11.6. and Fri, 13.6.
Only 4 items in stock at supplier

Product details

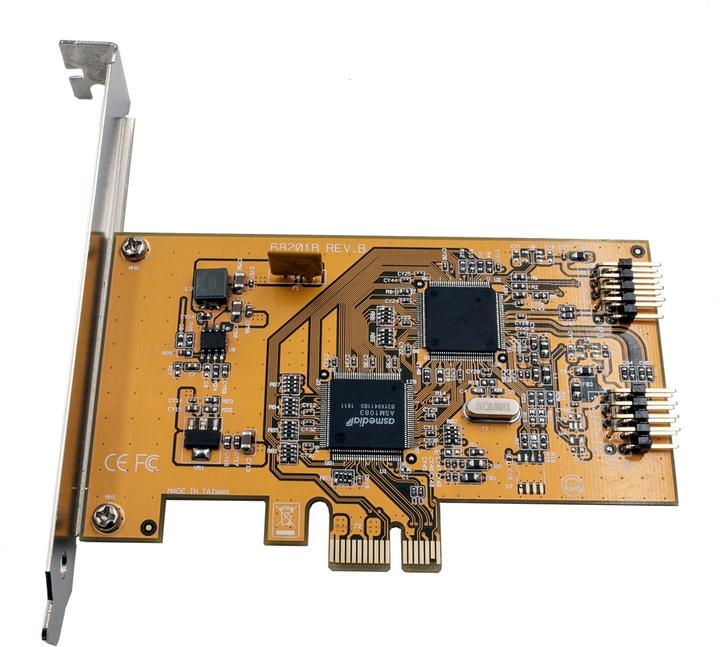

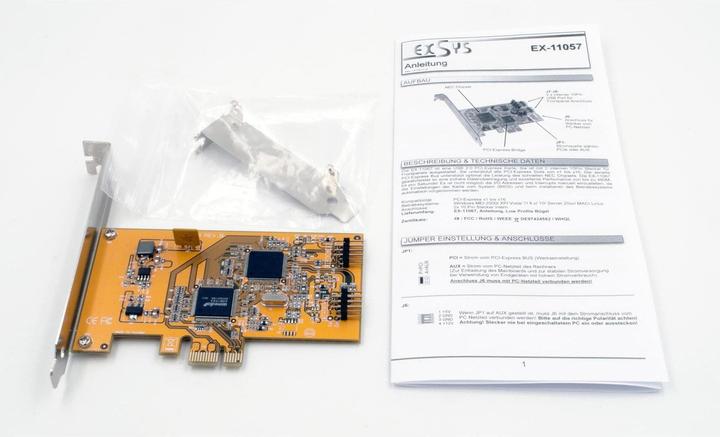

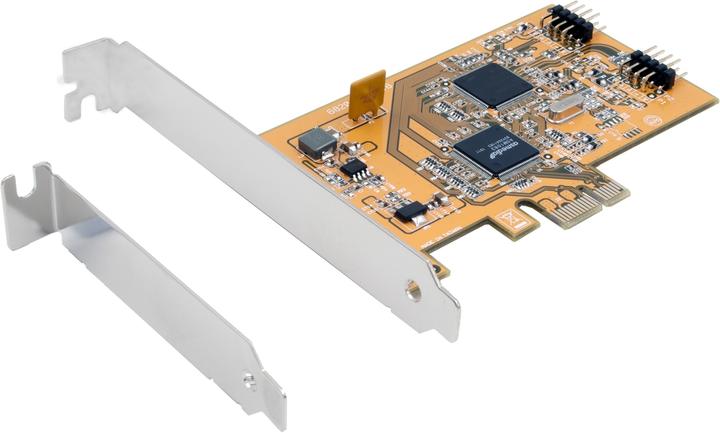

The EX-11057 PCI-Express USB 2.0 card provides three internal 5-pin motherboard-compatible USB 2.0 ports. It is designed to expand PCs, small workstations, or servers with three additional internal USB high-speed ports via the PCI Express bus. It is fully compatible with OHCI specifications V1.1 and USB 2.0 ECHI standards, thus also supporting older USB 1.1 peripherals. The EX-11057 comes with a low-profile bracket for slim computer cases up to 8 cm in height. USB version 1.1 to 2.0 compatible with Microsoft Windows Standard Open HCD drivers. It can also be installed in addition to the USB ports on the motherboard. Supports up to 127 devices. Chipset: NEC D720101GJ.

Main features:

  • Connections and interfaces: Host interface PCIe, output interface USB 2.0
  • Design: Built-in
  • Hot-Swap: Yes
  • Country of origin: Taiwan
  • RoHS compliant: Yes
  • Certification: CE, FCC
  • Features: Maximum data transfer rate 0.48 Gbit/s, Plug & Play: Yes.

Key specifications

Expansion card form factor
Low profile
USB ports
USB-A
Exact USB ports
USB-A 2.0 (3x)
Internal connection options
USB 2.0 Header (3x)
Expansion slot
PCI Express x1 (1x)
Documents
Technical data sheet.pdf, Manual.pdf
Item number
12185171

General information

Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-11057
Release date
24.9.2019
Sales rank in Category Controller cards
26 of 693

Controller properties

Expansion card form factor
Low profile

Peripheral port

Peripheral connections
USB 2.0 Type-A (3x)
USB ports
USB-A
Exact USB ports
USB-A 2.0 (3x)

Internal interfaces

Internal connection options
USB 2.0 Header (3x)
Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
200 g
Width
110 mm
Length
68 mm

Package dimensions

Length
25 cm
Width
17 cm
Height
3.10 cm
Weight
146 g
