Exsys EX-1093, 4 Port USB 3.0, PCI

Ratings
BrandMore from Exsys
Currently out of stock
Free shipping starting at 50.–

Product details

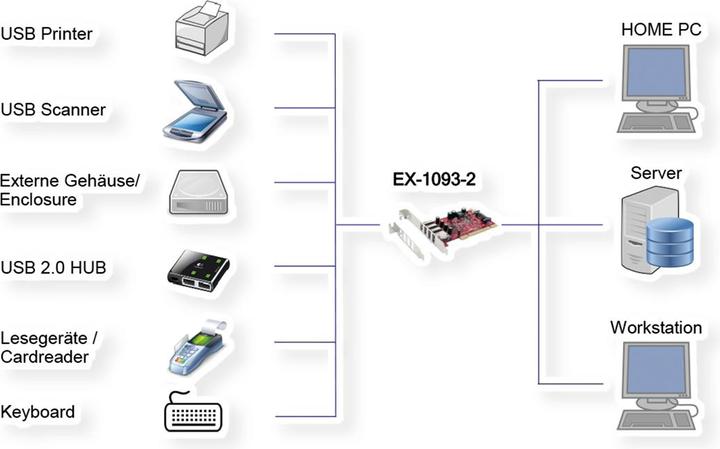

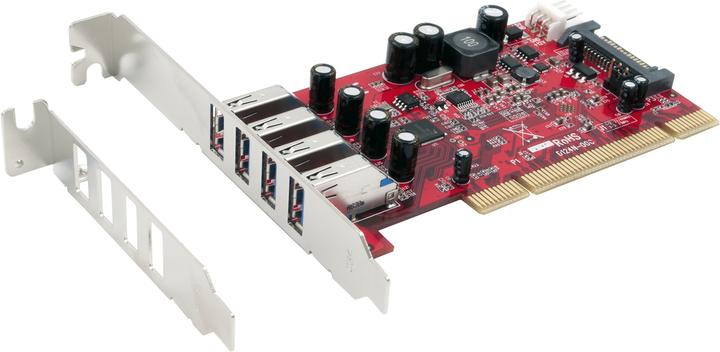

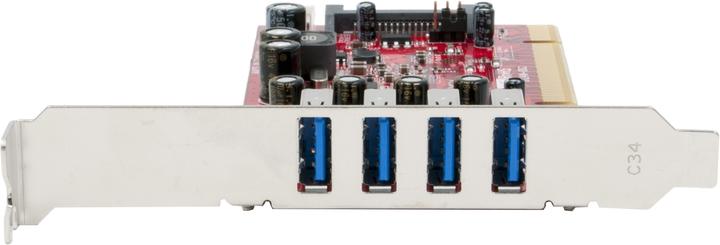

The EX-1093-2 USB 3.0 / 3.1 Gen1 PCI card provides four external Super-Speed USB 3.0 ports. It is designed to connect four additional USB 1.1, 2.0, or 3.0 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), and USB 3.0 Super-Speed (5 Gbps). It is the perfect technology for external storage enclosures, digital cameras, webcams, scanners, and more. The EX-1093-2 features a low-profile bracket and can be installed in slim cases with a maximum height of 8 cm.

Main features:

  • Connections and interfaces:
  • Host interface: PCI
  • Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
  • Number of internal SATA ports: 1
  • Design:
  • Built-in: Yes
  • Product color: Black, Green
  • Hot-Swap: Yes
  • Features:
  • Chipset: Renesas uPD720202
  • Maximum data transfer rate: 5 Gbit/s
  • Plug & Play: Yes
  • Operating conditions: Operating temperature range 0 - 55 °C.

Key specifications

Expansion card form factor
Low profile
USB ports
USB-A
Exact USB ports
USB-A 3.0 (1x)
Internal connection options
S-ATA (1x)
Expansion slot
PCI-X (1x)

General information

Item number
5824415
Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-1093
Release date
26.11.2013

Controller properties

Expansion card form factor
Low profile

Peripheral port

USB ports
USB-A
Exact USB ports
USB-A 3.0 (1x)

Internal interfaces

Internal connection options
S-ATA (1x)
Expansion slot
PCI-X (1x)

Origin

Country of origin
China

Product dimensions

Weight
150 g
Width
64 mm
Length
120 mm
