EVN-Lichttechnik LED power supply

EVN Lichttechnik LED power supply unit PLK203520

Manufacturer: EVN Lichttechnik
Designation: LED power supply unit 350mA 0.7-20W IP20
Type: PLK203520
Version: Static
Suitable for outdoor use: No
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DSI: No
Dimming DMX: No
Dimming potentiometer (device-integrated): No
Dimming GPRS: No
Dimming LineSwitch: No
Dimming manufacturer-specific: No
Dimming mains voltage modulation: No
Dimming phase cut: No
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with Push-button: No
Constant luminous flux control: No
Without dimming function: Yes
Housing: Plastic housing
Suitable for constant current: Yes
Suitable for constant voltage: No
Output current: 350 mA
Suitable for DC voltage (primary side): No
Output power: 0.7 - 20 W
Protection class (IP): IP20
Protection class: II

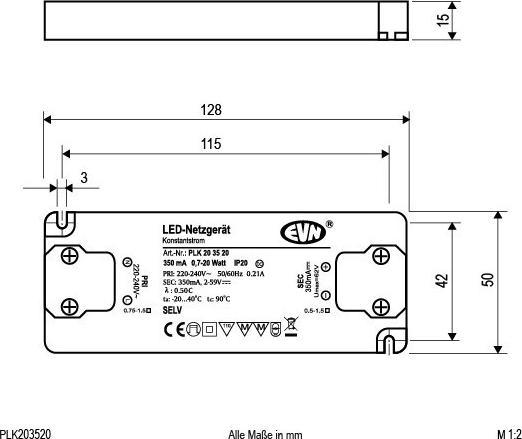

Length: 128 mm
Width: 50 mm
Height: 15 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

The short-circuit-proof safety transformer can also be installed in confined spaces due to its flat design, but can also be used in furniture construction without any problems, as the MM marking is given. The connection on the primary and secondary side is made by screw terminals, which are suitable for cables of 0.75mm² - 1.5mm² on the primary side, or 0.5mm² - 1.5mm² on the secondary side.

Technical data: Supply voltage: 220-240V/AC, ta: -20°C - 40°C, tc: 90°C, power factor 0.50.
