Product details

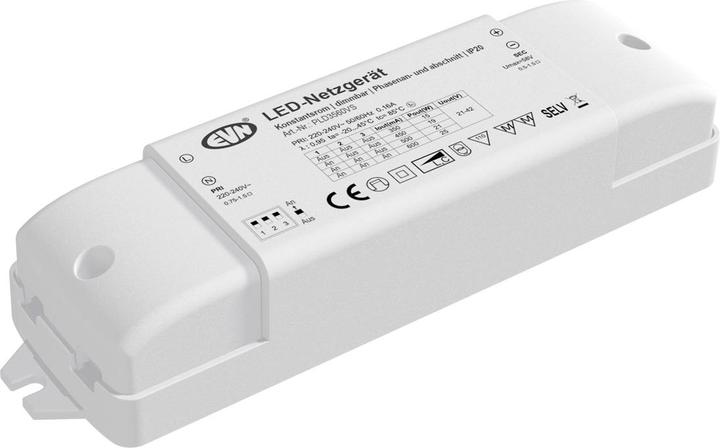

EVN Lichttechnik LED power supply unit 350mA-600mA PLD3560VS Manufacturer :EVN Lichttechnik Designation :LED power supply unit 350mA-600mA Type :PLD3560VS Version :dynamic Suitable for outdoor use :no Dimming 0-10 V :no Dimming 1-10 V :no Dimming DALI :no Dimming DSI :no Dimming DMX :no Dimming potentiometer (device-integrated) :no Dimming GPRS :no Dimming LineSwitch :no Dimming manufacturer-specific :no Dimming mains voltage modulation :no Dimming phase section :yes Dimming phase angle :yes Dimming programmable :no Dimming RF :no Dimming Sine Wave Reduction :no Dimming Touch and Dim :no Dimming Zigbee :no Dimming with push-button :no Constant luminous flux control :no Without dimming function :no Housing :Plastic housing Suitable for constant current :yes Suitable for constant voltage :no Output current :350..600 mA Suitable for DC voltage (primary side) :no Output power :7.35...25.2 W Protection class (IP) :IP20 Protection class :II Length :156 mm Width :44 mm Height :28 mm Compatible with Apple HomeKit :no Compatible with Google Assistant :no Compatible with Amazon Alexa :no IFTTT support available :no EVN Lichttechnik LED power supply unit 350mA-600mA PLD3560VS: more details The short-circuit-proof safety transformer can be used in furniture construction without any problems, as the MM marking is given. The connection on the primary and secondary side is made by screw terminals, which are suitable for cables from 0.75mm² - 1.5mm² on the primary side and from 0.50mm² - 1.5mm² on the secondary side. Technical data: Supply voltage: 220-240V/AC, ta: -20°C - 45°C, tc: 85°C, power factor 0.95. The output current to be used can be set by means of a dip switch, the following settings with respective power are possible: 350mA (15W), 450mA (19W), 500mA (21W), 600mA (25,2W). , EAN: 4037293059480.
