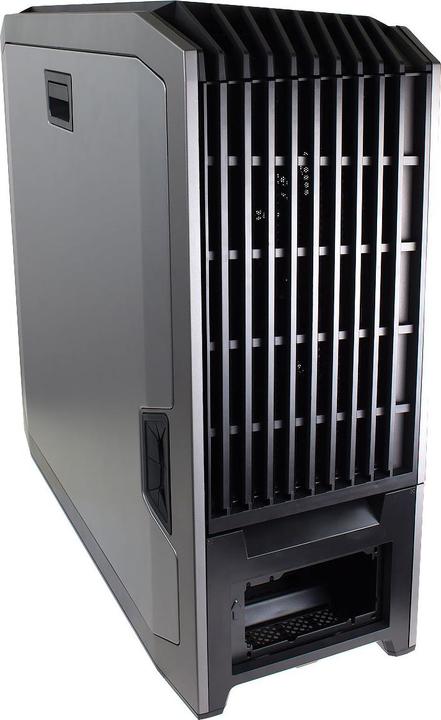

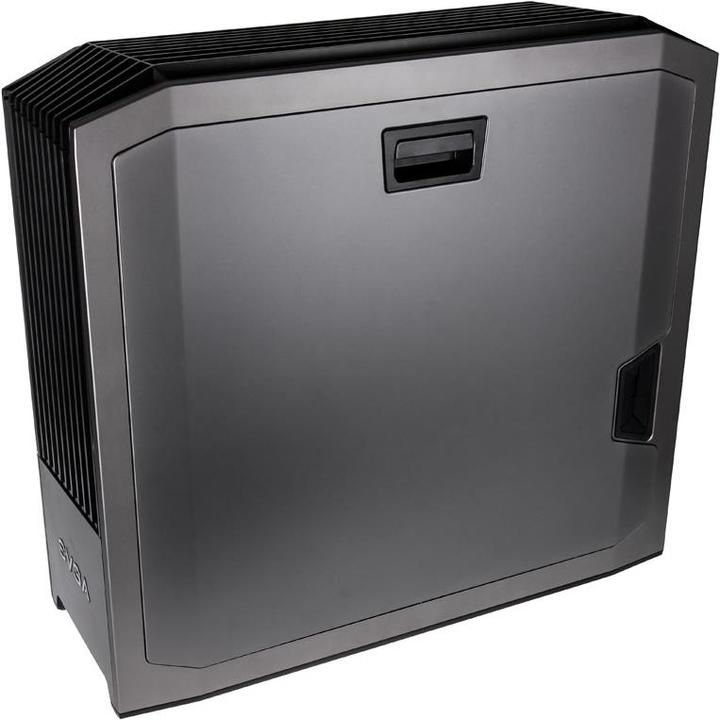

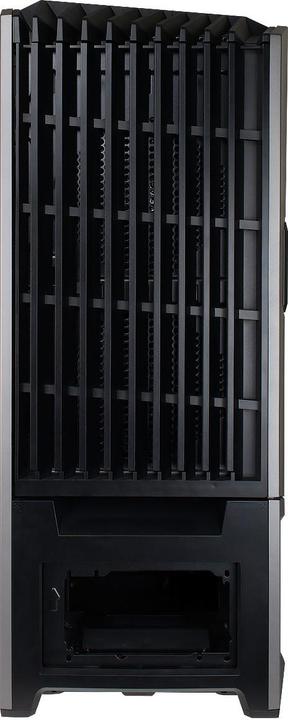

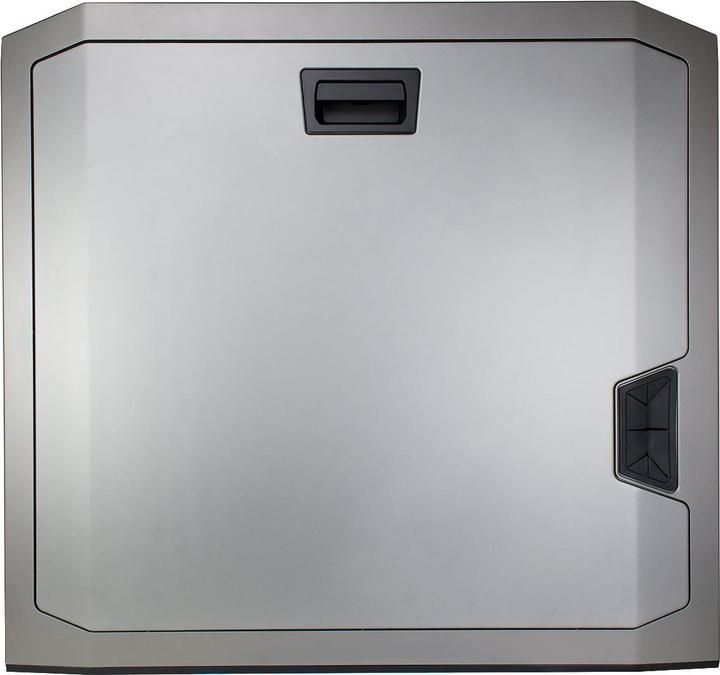

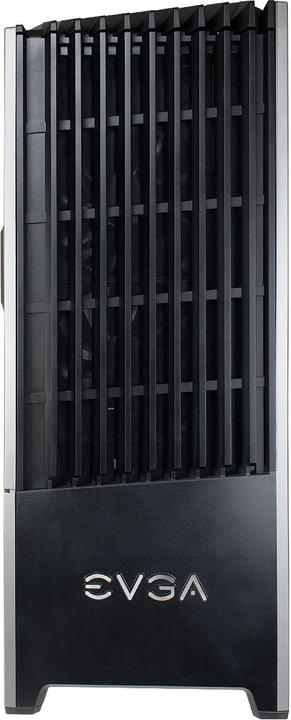

EVGA Dg-87

ATX, mATX, Mini-ITX, E-ATX
4Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

Powerful gaming hardware is best cooled with water. Therefore, the DG-87 supports the installation of a custom water cooling system or an AiO water cooler. Radiators up to 420 mm in length can be installed in the top and right side to manage gaming systems with up to four water-cooled graphics cards and the processor.

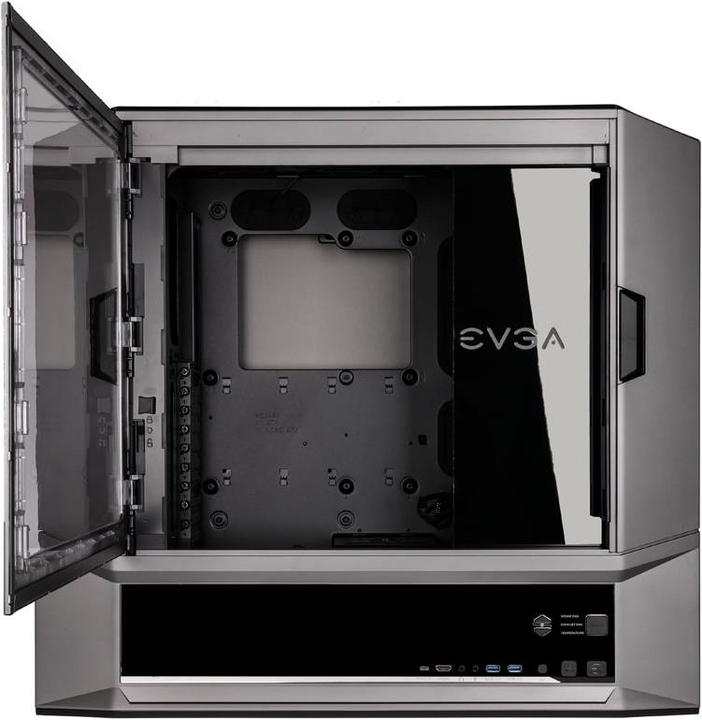

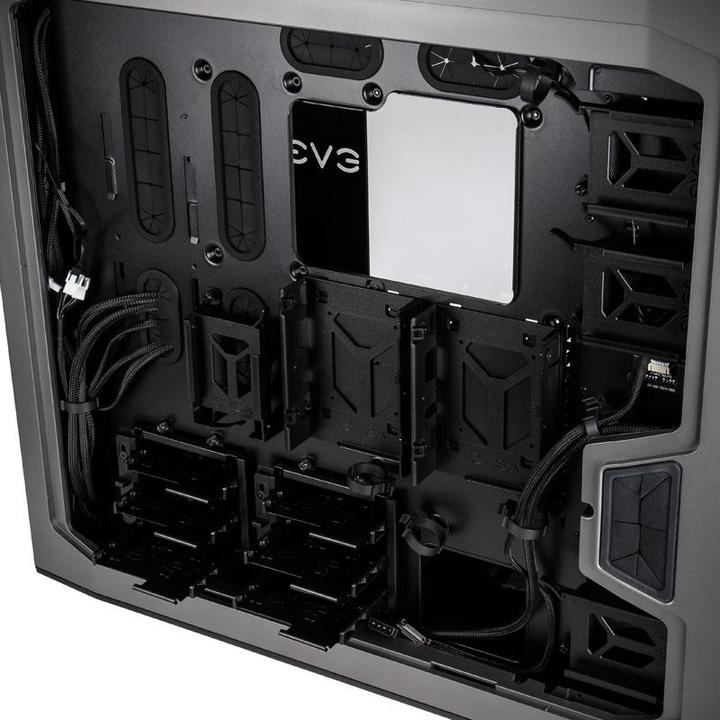

To the right of the motherboard tray, there is a removable bracket for reservoirs and pumps. Alternatively, the drive cages at the bottom next to the power supply can be removed to create space for reservoirs and pumps. Additional radiators can be mounted on the left side at the flap, but hard tubes cannot be used here.

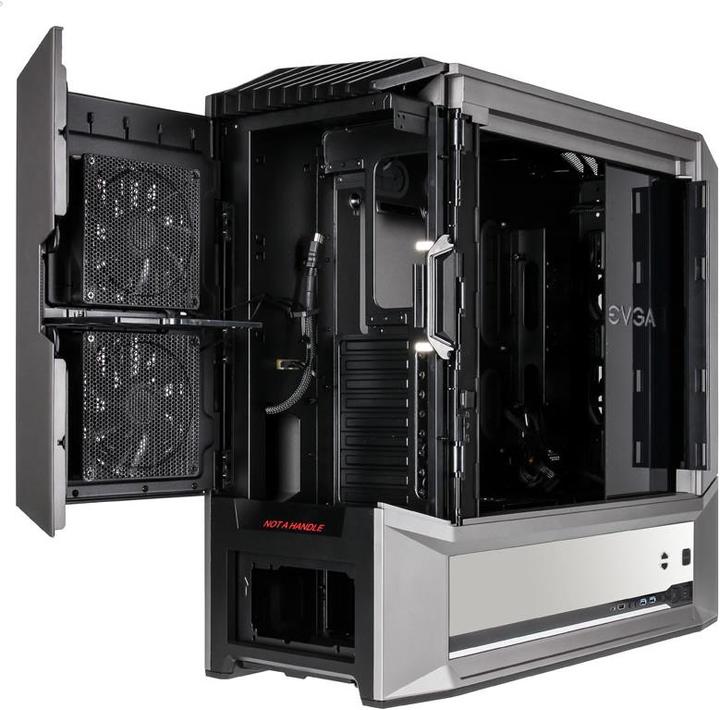

A unique feature of the DG-87 is that the motherboard's back panel is located inside the case and is concealed by the flap on the left side. At the back, there is a rubberized opening for routing cables outside. An internally routed HDMI cable connects the HDMI port at the front with the HDMI output of the graphics card. This feature makes the DG-87 particularly attractive for connecting a VR headset.

Key specifications

PC case design
Full tower
"Number of 5.25"" drive slots"
0 x

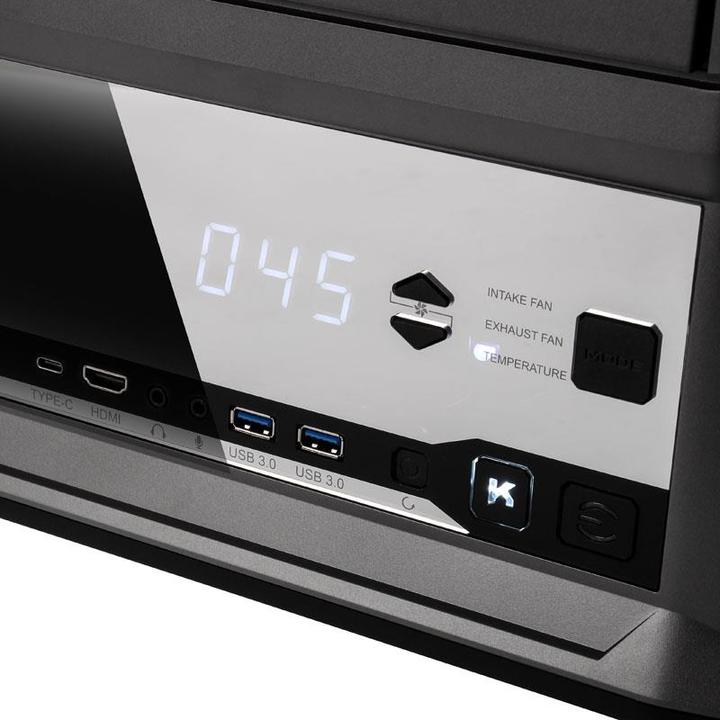

Front connectors
Headphones, Microphone, USB 2.0, USB 3.0

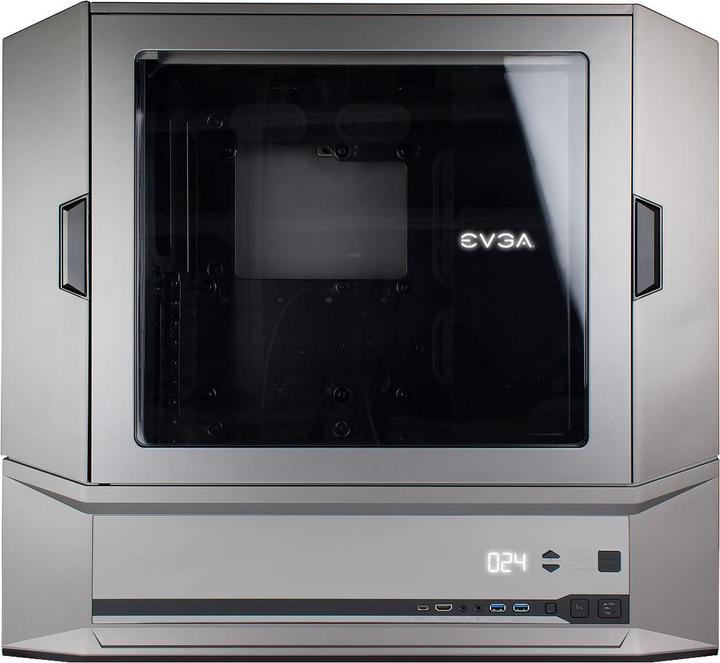

PC case features
Side windows
Item number
5888028

General information

Manufacturer
EVGA
Category
PC case
Manufacturer no.
100-E1-1236-K0
Release date
25.8.2016
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey, Metal, Metallic

Material

Material group
Metal, Plastic
Material
ABS plastic

PC case properties

PC case design
Full tower
Form factor
ATX, E-ATX, Micro ATX (mATX), Mini-ITX
"Number of 5.25"" drive slots"
0 x
"Number of 2.5""/3.5"" combination slots"
8 x
"Number of 2.5"" drive slots"
4 x
Number of expansion card slots
9 x
PC case features
Side windows

Connections

Front connectors
Headphones, Microphone, USB 2.0, USB 3.0

Cooling properties

Number of fans
6 x
Number of fan slots
8 x
Fan location
Front side, Rear side, Top side
Number of radiator mounts
3
Radiator locations
Front side, Rear side, Top side
Cooling properties
Water cooling possible

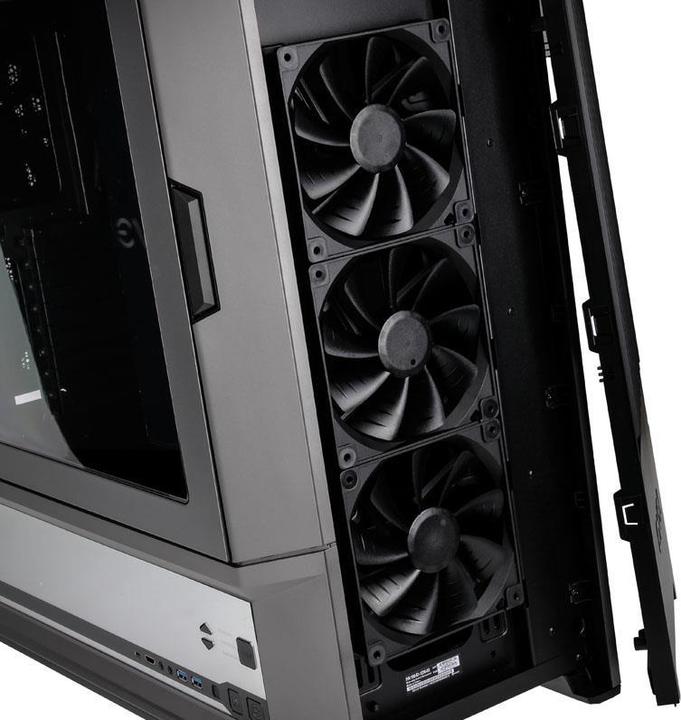

Front side

Fans included
3x 140mm
Fan mount locations
3x 120mm, 3x 140mm
Radiator mount locations
1x max. 360/420mm

Rear side

Fans included
2x 140mm
Fan mount locations
2x 120mm, 2x 140mm
Radiator mount locations
1x. max. 240/280mm

Top side

Fans included
1x 140mm
Fan mount locations
3x 120mm, 3x 140mm
Radiator mount locations
1x max. 360/420mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
64.20 cm
Length
68.60 cm
Width
27 cm
Weight
19.60 kg

Package dimensions

Length
76 cm
Width
82.10 cm
Height
39.50 cm
Weight
29 kg
