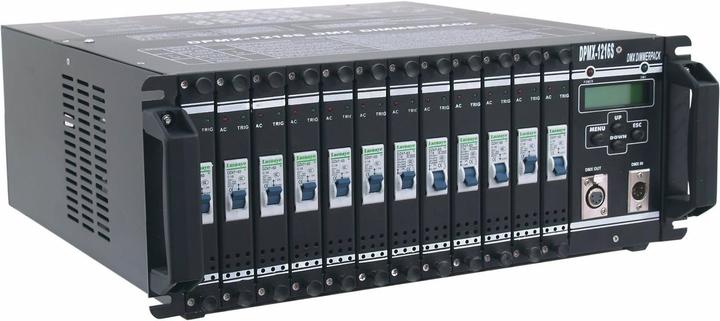

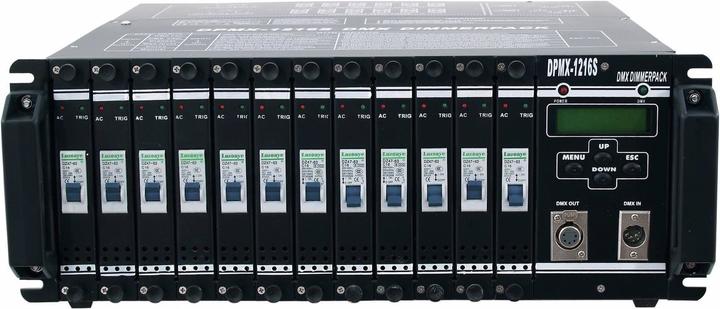

Eurolite DPMX-1216 S DMX Dimmer Pack

Reliability is key. At professional events, a device must perform flawlessly. The DPMX-1216 dimmer pack series meets this requirement effortlessly. With this universal lighting power amplifier, you can play it safe: each channel features automatic circuit breakers, allowing for individual channel module replacement during operation. The various outputs are also practical. Whether using a terminal strip, earthing contact plug, CEE, or multipin, everything can be connected.

12 x 16 A dimmer, service-friendly modules, 12 protective contact output sockets.

• 12-channel dimmer pack with up to 16 A output power per channel
• Single channel module design for quick and easy replacement of individual dimmer modules
• 3-phase or 1-phase power supply
• DMX512 control or analog control
• Adjustable lamp preheating (0-50%) and limiter function to extend lamp life
• Curve function for different transmission characteristics of the control voltage
• Dimming and switching operation assignable for individual channels
• DMX fail function: digital input signals are automatically checked for DMX signal errors
• 12 integrated programs with adjustable speed
• Manual mode for channel control without external controller
• All modes are shown in the LCD display
• Synchronization of several devices via DMX possible
• Circuit breaker per channel (type C)

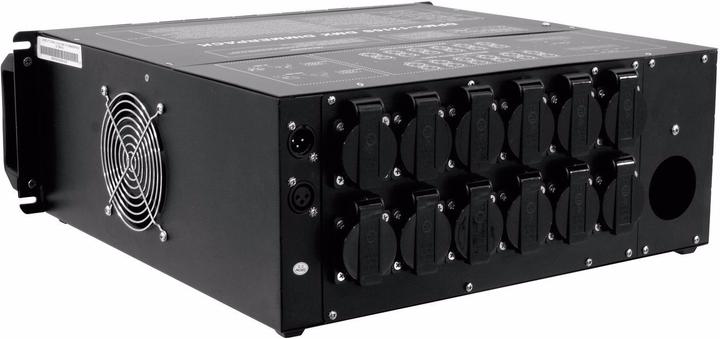

• Channel outputs at the rear of the unit via safety plugs
• Rack mounting with 4 U
• For professional use only
• Preprogrammed 12 chasers
• Operable in 12 CH DMX mode
• Controllable via analog 0-10 V; stand-alone; DMX
• (19") 48.3 cm rack mount 4 U.
