Eurolite DMX Power Splitter 4x4 3-pin XLR
Delivered between Mon, 28.7. and Thu, 31.7.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
JACOB DE
free shipping
Product details

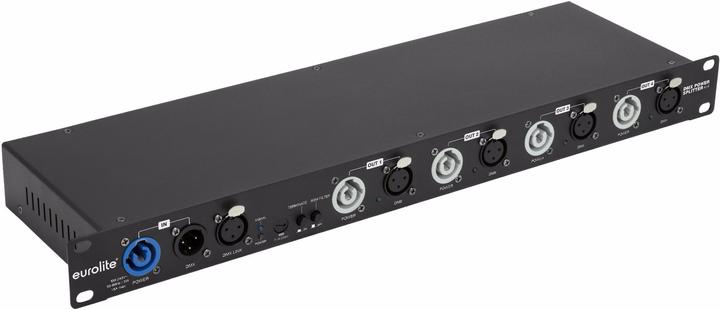

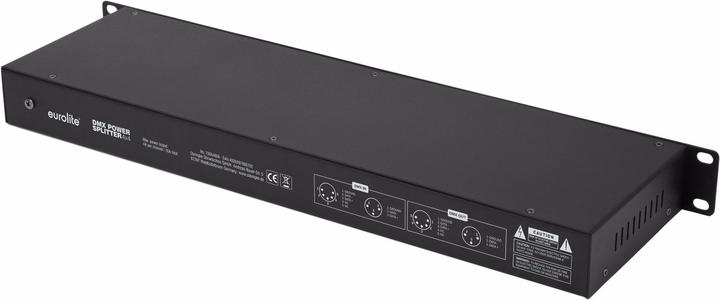

The 4-fold splitter is designed for reliable distribution of DMX512 signals and operation voltage (max. 16 A). The unit features one DMX input and four DMX outputs with status indicators, as well as a feed-through terminal for connection to an additional splitter. The mains connectors are designed as P-Con sockets. The splitter supports RDM for bidirectional communication over the DMX line and is suitable for mounting in an equipment rack.
1 in/4 out power and DMX splitter with RDM support for rack mounting:
- 1 P-Con input to 4 outputs, max. 16 A
- 1 DMX input to 4 outputs
- 1 DMX feed-through output
- Supports RDM
- Switchable RDM filter mode
- Switchable termination resistor
- Input and outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Suitable power DMX combination cables available as accessories
- Controlling by RDM
- 19" (48.3 cm) rack installation, 1 U.
Control type | DMX controller |
Number of devices can be controlled | 4 x |
DMX Channels | 4 x |
Item number | 17469590 |
Manufacturer | Eurolite |
Category | Lighting controllers |
Manufacturer no. | 70064806 |
Release date | 12.11.2021 |
Control type | DMX controller |
DMX Channels | 4 x |
Number of devices can be controlled | 4 x |
DMX 3-pin out | 4 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 DMX feed-through output, 1 DMX-in/4 DMX-out with independent power supply, 1 DMX-In/4 DMX-Output with status indicator, Input and outputs galvanically isolated, RDM Switchable RDM filter mode, Switchable termination resistor |
Specifications may include unverified machine translations.
