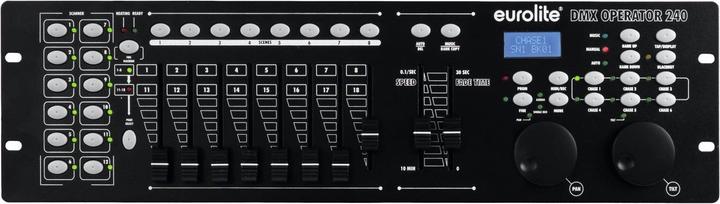

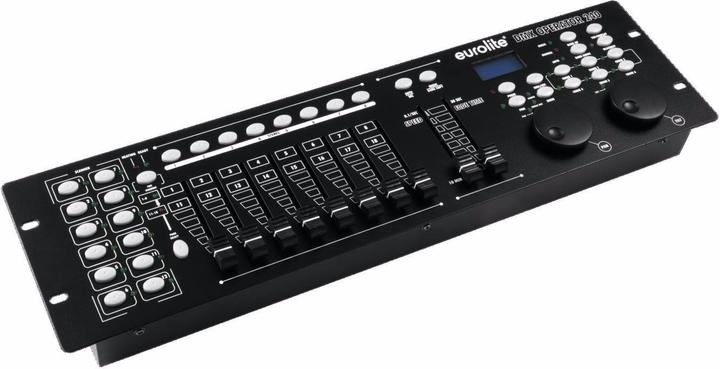

Eurolite DMX Operator 240 Controller

Console for 12 fixtures with up to 20 DMX channels each, with 2 jog wheels

• DMX lighting control desk for DMX lighting effect devices like moving heads, scanners and LED spotlights

• 12 devices with up to 20 channels each controllable

• 240 DMX channels freely assignable to 20 control channels (softpatch) and individually invertible

• USB port for data storage of light shows

• Chase playback manually, music- or time-controlled possible

• crossfade between scenes adjustable from 0-30 s

• Copy function for scenes and banks

• 2 DMX device levels controllable, each with up to 10 channels

• 8 DMX channel faders

• 2 jog wheels for pan/tilt

• Blackout function

• Backlit LCD display (2 x 8 characters)

• Control of a fog machine possible

• Standard MIDI support

• 3-pin XLR connector, polarity switchable

• Firmware update via USB

• Desktop case

• Rack mounting with 3 height units

• Programmable 30 sequences with 8 scenes each

• Programmable 6 chasers with max. 240 scenes each

• Can send up to 240 DMX channels

• Controllable via DMX; music control via microphone; music control via RCA (W) built-in version; MIDI via 5-pin DIN (W) built-in version; fog machine via 5-pin DIN (W) built-in version; RDM

• (19") 48.3 cm rack mount 3 U.
