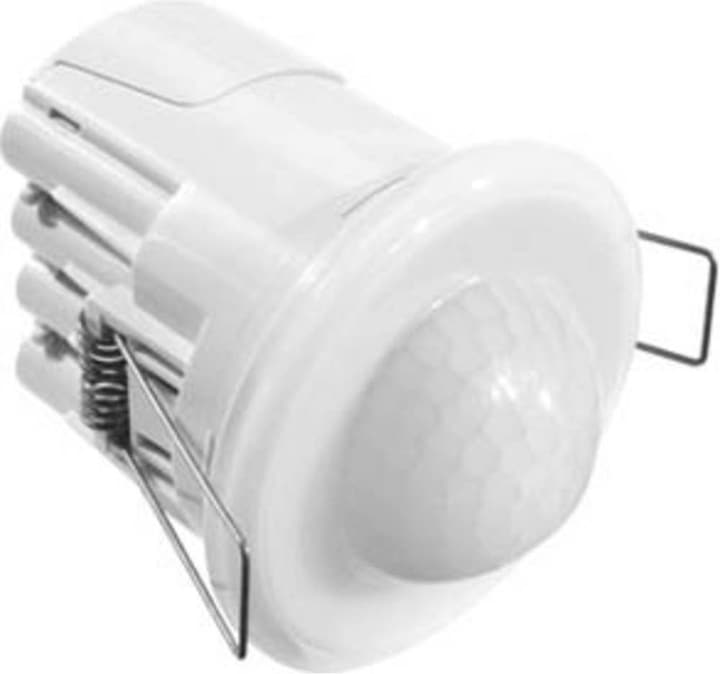

Esylux Esyluxpresence detectorSlaveopalmattUP

Slave" presence detector for extending the detection range of a " Master" presence detector with 360° detection range for recessed ceiling mounting. Range of up to 8 m in diameter for cost-effective system expansion with up to 10 additional extension units. All parameters are set on the " master" detector, the " slave" detector detects movements and passes them on to the " master". Standard version as flush-mounted device with white cover and design ring IP 20. Universal surface-mounted box IP 54 with 2-fold membrane cable entry (accessories). Plug-in terminals in double assignment for through-wiring. Modular system consisting of power box and pluggable sensor. Mount/connect powerbox - after painting work is completed, the sensor can simply be plugged on. Large wiring space thanks to low overall height of the powerbox. Connection of the " slave" detector is possible to the following presence detectors: PD-CE360i/8 / PD-CE360i/8.
