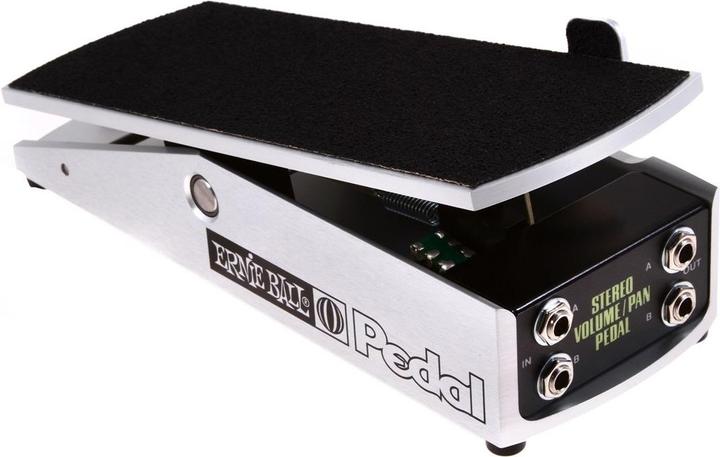

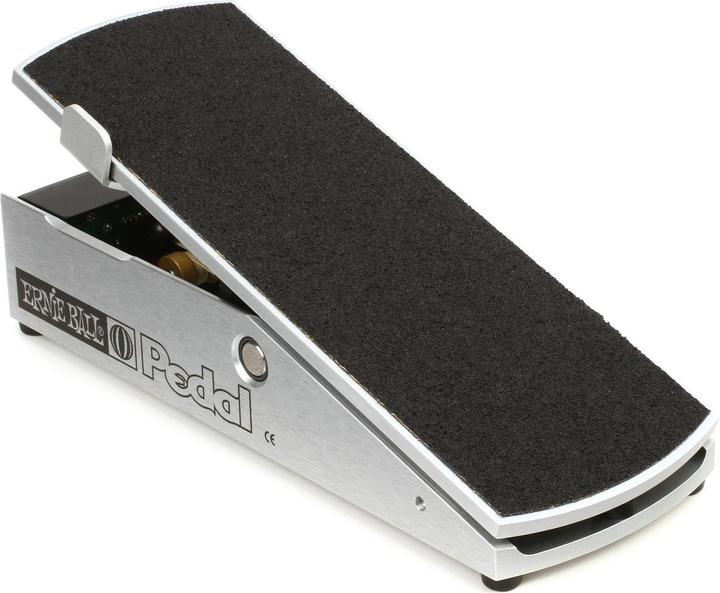

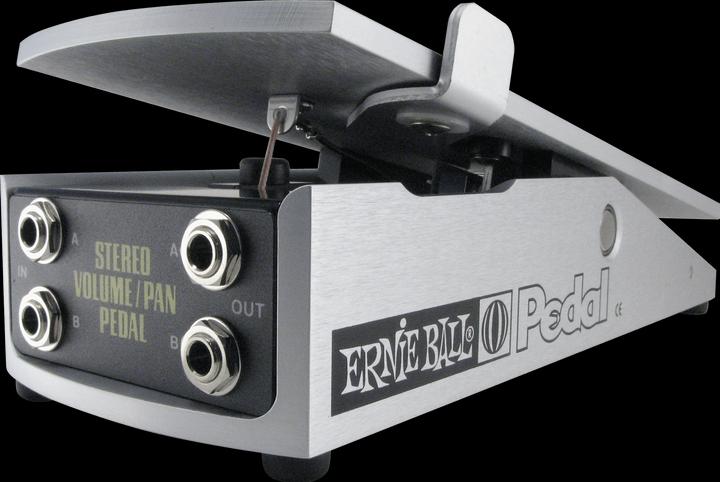

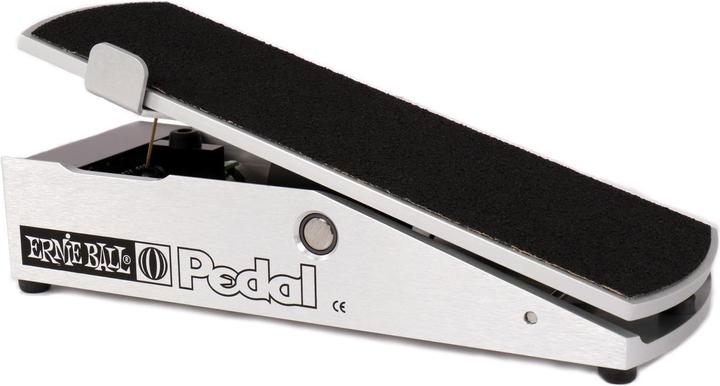

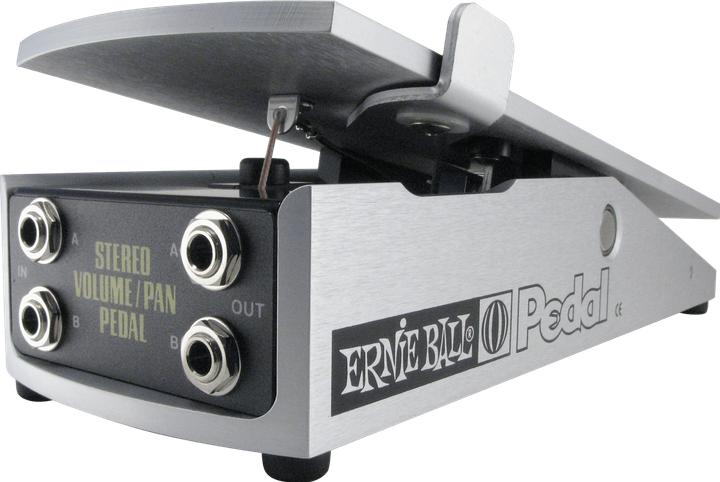

Ernie Ball 500k stereo volume/pan pedal

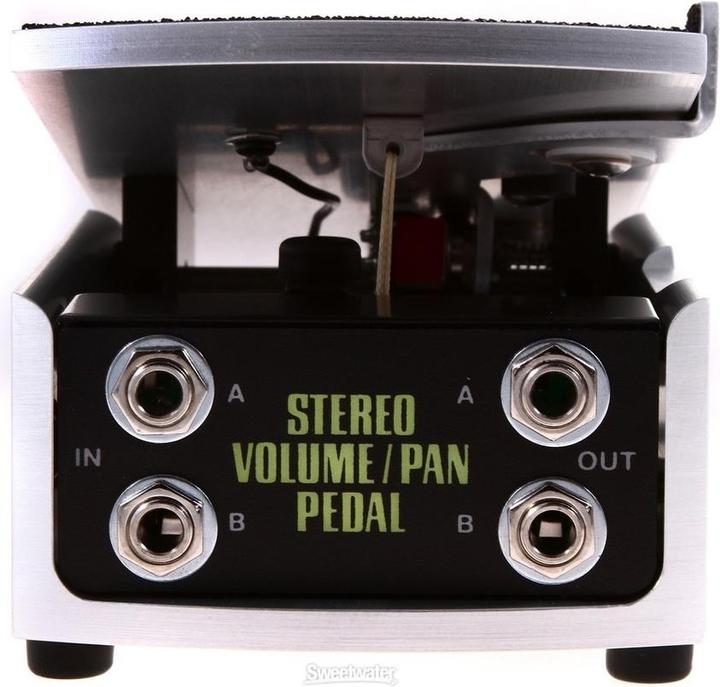

The Ernie Ball 500k Stereo Volume Pedal is equipped with a 500k pot for audio signals from both passive and active instruments. There is a switch on the treadle that allows you to choose between the two operating modes: Volume or Pan. The 500k stereo pedal is extremely versatile and suitable for both stereo and mono applications. Stereo jack cables are connected to inputs and outputs A and B. When used as a typical pan pedal, the switch is engaged with the foot into the pan position, utilizing only input A. The pedal now pans the signal between outputs A and B.

All Ernie Ball volume pedals are characterized by their absolute roadworthiness. The enclosures made from machined aluminum are beyond doubt in terms of their stability. The pedal axles are made of stainless steel, so wear, such as loosening, is not a concern. A robust rubber mat ensures that feet do not slip on the treadle. In addition to the high weight of the pedal itself, four rubber feet guarantee a secure stand on the floor. All pedals operate passively, meaning no batteries are required. The mechanical design is such that the pots are moved by a cable pull when the pedals are pressed down. Each pedal is moved a thousand times before delivery—this can truly be called quality control! Thanks to the open housing and the plugged cable connections at the pot, the components are extremely service-friendly. To simplify handling, all jack sockets are now located on the front side.
